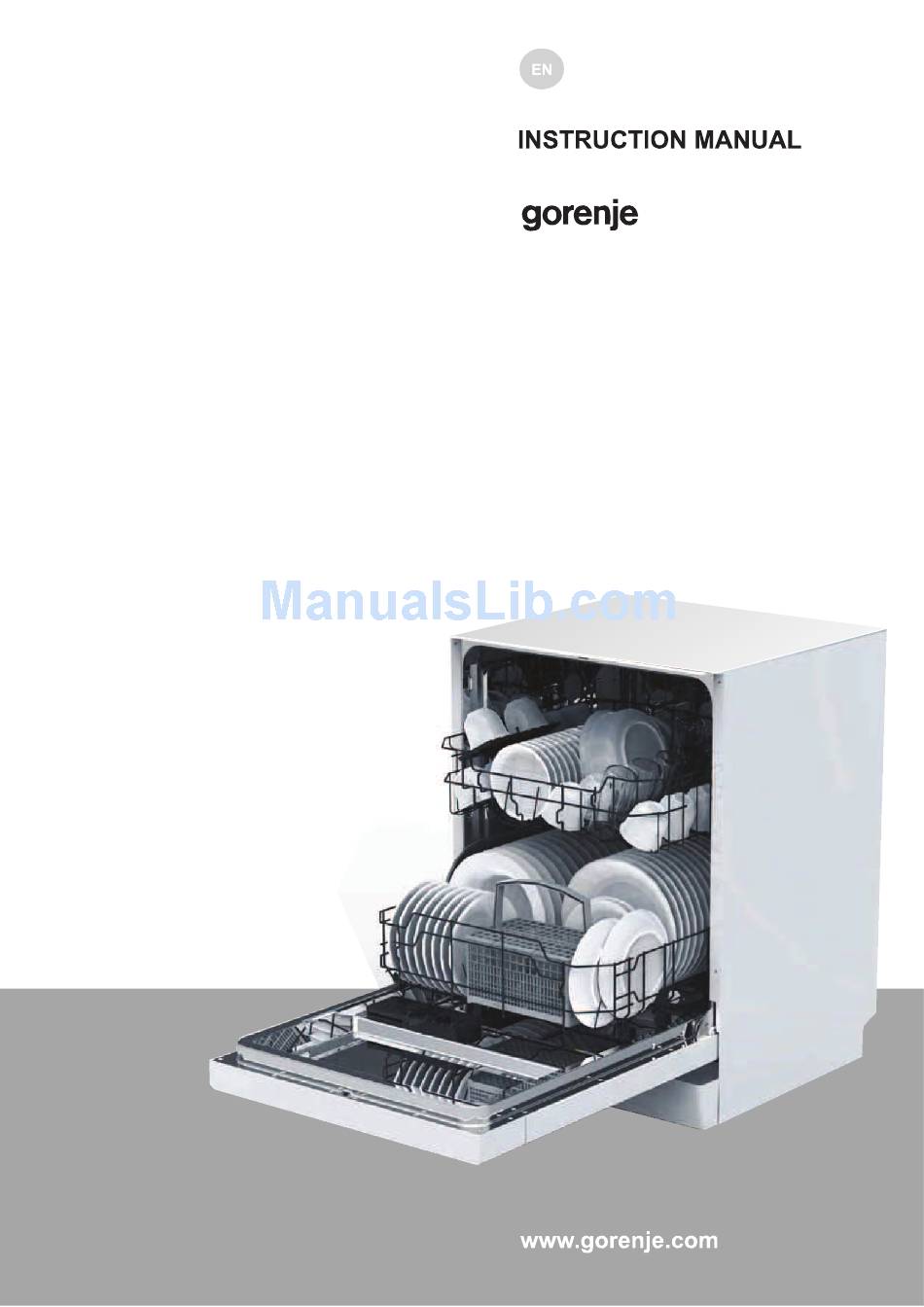

- Page 1 GV61214UK...
-
Page 2: Table Of Contents
Dear Customer, Please carefully read this manual before using the dishwasher, it will help you to use and maintain the Control Panel...........5 dishwasher properly. Dishwasher Features........5 Keep it as a refer in the later days. Pass it on to any subsequent owner of the appliance. A Water Softener..... - Page 3 When using your dishwasher, follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.
- Page 4 Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
-
Page 5: Control Panel
Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material polyoxymethylene, e.g. plastic clips polypropylene, e.g. Salt filler Acrylonitrile Butadiene Styrene, e.g. - Page 6 Quick operation guide For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Open the door,press the On/Off button to switch on the appliance . Compartment A: With each wash cycle. Compartment B: Fill the detergent dispenser For programmes with pre-wash only.
- Page 7 To get the best performance from your dishwasher, read all operating instructions before using it for the first time. 6.Half load fu nctions Button: To select Half load 1.Power indicator: To show when the p owe r on. functions. (With this Half loa d functio n yo u ca n only use it when you have only ab out or less than 2.Salt and rinse aid warning lights: To sh ow 6 place setting dish wave , and you will see less...
-
Page 8: A Water Softener
Before using your dishwasher for the first time: Set the water softener Add 1.5Kg dishwasher salt and then full fill the salt container with water Fill the rinse aid dispenser Fill in detergent The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. -
Page 9: Rinse Aid Dispenser
Always use the salt intended for use with dishwasher. The salt contain er is located beneath the lower basket and should be fill ed as explained in t he foll owing: Attention! Only use salt spe cif ically desi gne d for t he use i n dishwashers! Every other type of salt not speci fically de sig ned fo r the u se in a d ishwasher, espe cially table salt, will damage the w ater sof tener. -
Page 10: Adjusting Rinse Aid Dispenser
When to Refill the Rinse Aid Dispenser If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour of the optical level indicator C located next to the cap. When th e rinse-aid c ontainer is full, the whole indicator will be dark .As the rinse -aid diminishes, the size of the dark dot decreases. - Page 11 Detergents There are 3 sorts of d etergents 1.With phosphate and with ch lorine 2.With phosphate and without chlorine 3.Without phosphate and without chlorine Normally new pulverised detergent is with out phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt con taine r even when the hardness of water is only 6 dH.
-
Page 12: Fill In Detergent
Fill in Detergent Fill the detergent dispenser with detergent. The marking indicate s the dosing levels , as illustrate d on the righ t: The place of main wash cycle deterg ent placed. The place of pre-wash cycle deterge nt placed. Plea se o bserve the manufacturers dosing and storage Recommendations as stated on the detergent pac kaging. - Page 13 Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take gla ss a nd c utlery out of the dishwasher immediately after the programme h as ended.
-
Page 14: Folding Spikes Of Lower Basket
The u pper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clea n ite ms are to be placed into the lo wer tea cups and saucers, as well as plates, small bowls basket: such as pots, pans, lids, se rving dishes and and shallow pans (as long as they are not too dirty). - Page 15 Means: need to fill rinse into the Rinse-Aid Dispenser. Prewash 50 For heaviest soiled crockery, Wash 60 and normally soiled pots 5/25g Intensive Rinse 18.5 pans dishes etc with dried Rinse on soiling. Rinse 65 Drying Prewash(45 ) Wash (55 For normally soiled loads, Normal Rinse...
-
Page 16: Wash Cycle Table
Premise: A cycle that is underway can on ly be modified if it has only been running for a short time. Otherwise, the detergent may have already be en released, a nd the appliance may have already drained the wash water. If this is the case , the detergent dispenser mu st be refilled (see the section entitled "... -
Page 17: Filter Assembly
The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). Main filter Fo od and soil particles trap ped in this filter are pulverized by a specia l jet on the lower spray arm and washed down to drain. -
Page 18: Cleaning The Filter
Remarks: - Inspect the filters for blo cking a fter e very time the dishwa sher has been used. - By unscrewing the coarse filter, you can remove the filter system. Re move any foo d remna nts and clean the filters under running water. The entire filter assembly should be cleaned once a week. -
Page 19: Installation Preparation
After Every Wash When not in Use for a LongTime It is recommend that you run a was h cy cle with the After every wash, turn off the water supply to the dishwasher empty an d the n remove the plug from the appliance and leave the door slightly open so that socket, turn off the wa ter supply and leave the door of moisture and odours are not trapped inside. -
Page 20: Aesthetic Panel's Dimensions And Installation
Please carefully read the installation instruction. Illustratio ns o f cabinet dimensions and installation position of the dishwasher Preparations should b e made before moving the dishwasher to the installation place. Choose a place near the sink to facilitate the installation of inlet and drain hoses (see figure 1). - Page 21 2 Install the hook on the aesthet ic wooden panel and put the hook into the slot of the outer door of dishwasher(see figure 4a). Af ter positioning of the panel , fix the panel onto the outer door by screws and bolts(See figure 4b) .
-
Page 22: Tension Adjustment Of The Door Spring
Tension adjustment of the door spring The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable (see figure 5). -
Page 23: Dishwasher Installation Steps
Dishwasher installation steps Install the furniture door to the outer door of the dishwasher using the brackets provided. Re fer to the template for positioning of the brackets. Adjust the tension of the door springs by using an Allen key turn ing in a clockwise motion to tighten the left and right door springs. - Page 24 Dishwasher must be level for proper dish rack operation and wash performance. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. level the dishwasher by adjusting the three levelling legs individually. When level the dishwasher, please pay attention not to let the dishwasher tip over.
-
Page 25: Positioning The Appliance
The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water. - Page 26 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is turned on closed securely.
-
Page 27: Error Codes
The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table . " Not enough detergent Use more detergent, or change your detergent. was dispensed. - Page 28 Height : 815mm Width : 598 mm Depth : 550mm with the door closed Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 12 place settings...
- Page 29 Loading the baskets according to En50242: 1.Upper basket: Cups 1 2 1 5 5 5 5 5 5 2 2 2 Saucers 1 2 1 5 5 5 5 5 5 Glasses 1 2 1 4 4 4 4 4 4 Small serving bowl 2 2 2 Medium serving bowl...
- Page 30 Technical Data Sheet Sh eet o f household dish was her according to EU Directive 1059/2010: Manufac turer GORENJE Type / Description GV61214UK Standard place s ettings Energy efficiency cla ss Annual energy consumption 258 kWh Energy consumption of the standard cleaning cycle 0.91 kWh...
