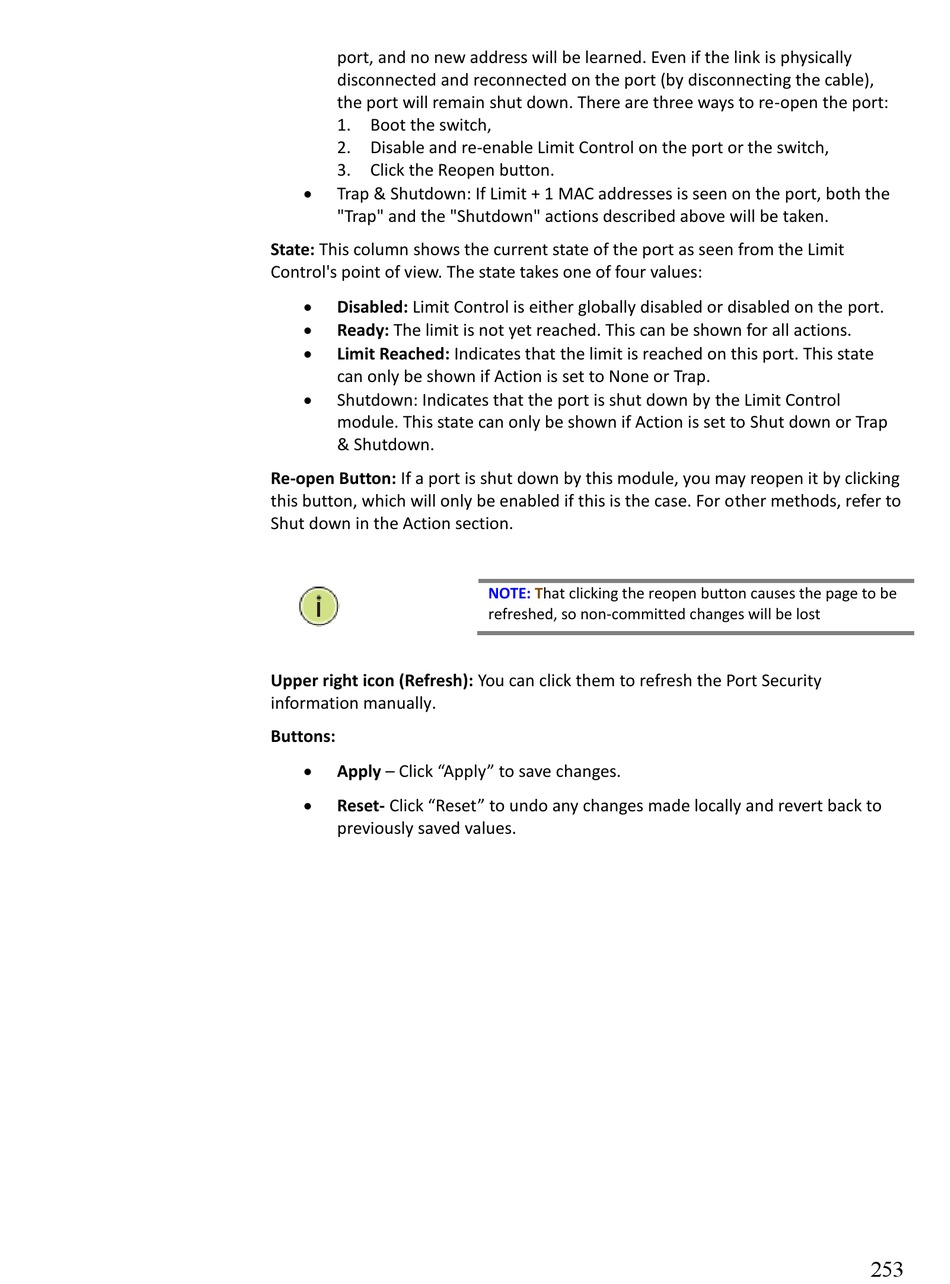

Vigitron MaxiiNet VI3026 Operational Manual page 253

port, and no new address will be learned. Even if the link is physically
disconnected and reconnected on the port (by disconnecting the cable),
the port will remain shut down. There are three ways to re-open the port:
1. Boot the switch,
2. Disable and re-enable Limit Control on the port or the switch,
3. Click the Reopen button.

Trap & Shutdown: If Limit + 1 MAC addresses is seen on the port, both the
"Trap" and the "Shutdown" actions described above will be taken.
State: This column shows the current state of the port as seen from the Limit
Control's point of view. The state takes one of four values:

Disabled: Limit Control is either globally disabled or disabled on the port.

Ready: The limit is not yet reached. This can be shown for all actions.

Limit Reached: Indicates that the limit is reached on this port. This state
can only be shown if Action is set to None or Trap.

Shutdown: Indicates that the port is shut down by the Limit Control
module. This state can only be shown if Action is set to Shut down or Trap
& Shutdown.
Re-open Button: If a port is shut down by this module, you may reopen it by clicking
this button, which will only be enabled if this is the case. For other methods, refer to
Shut down in the Action section.
Upper right icon (Refresh): You can click them to refresh the Port Security
information manually.
Buttons:

Apply – Click "Apply" to save changes.

Reset- Click "Reset" to undo any changes made locally and revert back to
previously saved values.
NOTE: That clicking the reopen button causes the page to be
refreshed, so non-committed changes will be lost
