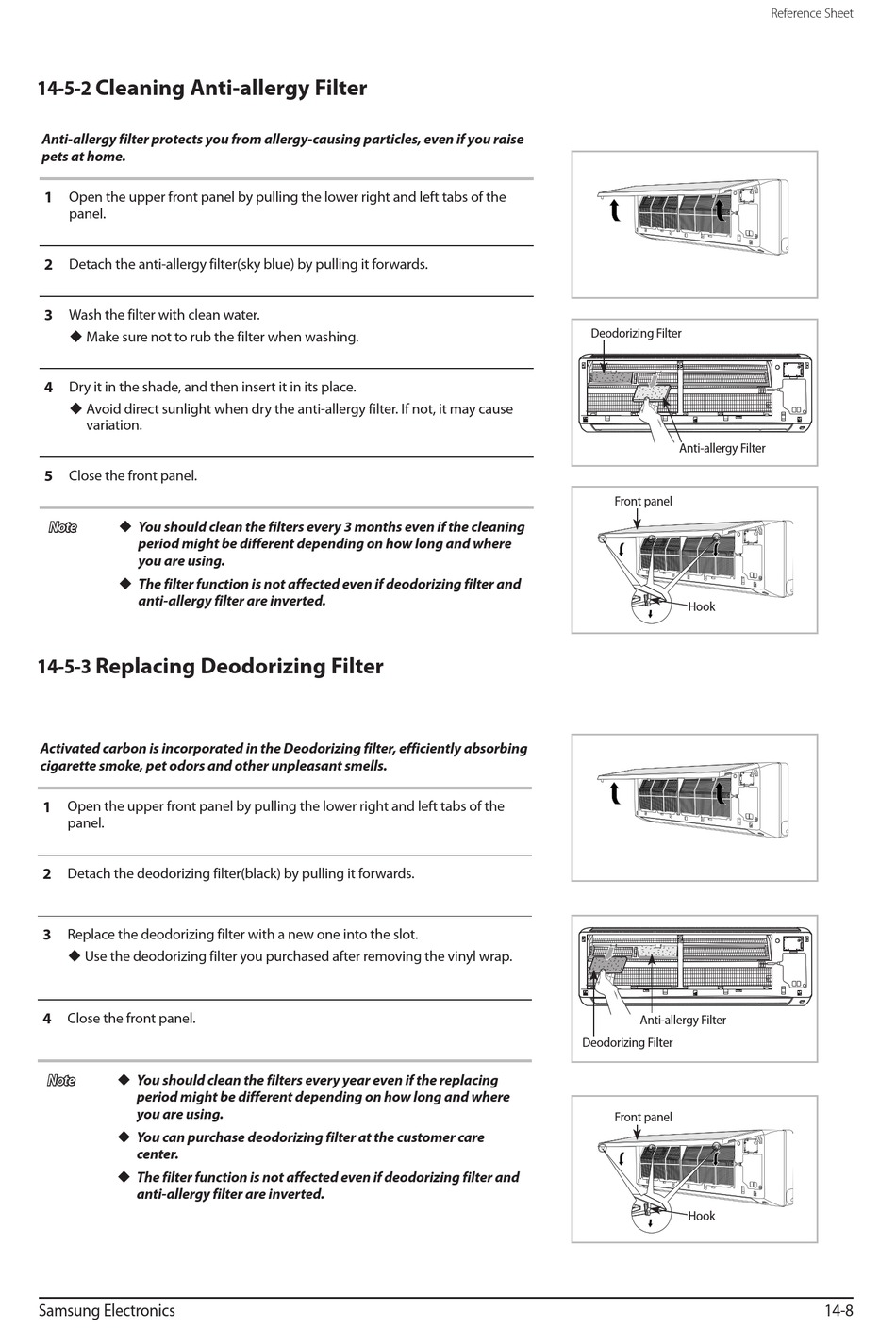

Cleaning Anti-allergy Filter
14-5-2
Anti-allergy filter protects you from allergy-causing particles, even if you raise
pets at home.
1 Open the upper front panel by pulling the lower right and left tabs of the
panel.
2
Detach the anti-allergy filter(sky blue) by pulling it forwards.
3 Wash the filter with clean water.
 Make sure not to rub the filter when washing.
4 Dry it in the shade, and then insert it in its place.
 Avoid direct sunlight when dry the anti-allergy filter. If not, it may cause
variation.
5
Close the front panel.
Note  You should clean the filters every 3 months even if the cleaning
period might be different depending on how long and where
you are using.
 The filter function is not affected even if deodorizing filter and
anti-allergy filter are inverted.

Replacing Deodorizing Filter

14-5-3
Activated carbon is incorporated in the Deodorizing filter, efficiently absorbing
cigarette smoke, pet odors and other unpleasant smells.
1
Open the upper front panel by pulling the lower right and left tabs of the
panel.
2 Detach the deodorizing filter(black) by pulling it forwards.
3 Replace the deodorizing filter with a new one into the slot.
 Use the deodorizing filter you purchased after removing the vinyl wrap.
4 Close the front panel.
Note  You should clean the filters every year even if the replacing
period might be different depending on how long and where
you are using.
 You can purchase deodorizing filter at the customer care
center.
 The filter function is not affected even if deodorizing filter and
anti-allergy filter are inverted.
Samsung Electronics
Deodorizing Filter
Anti-allergy Filter
Front panel
Hook
Anti-allergy Filter
Deodorizing Filter
Front panel
Hook
