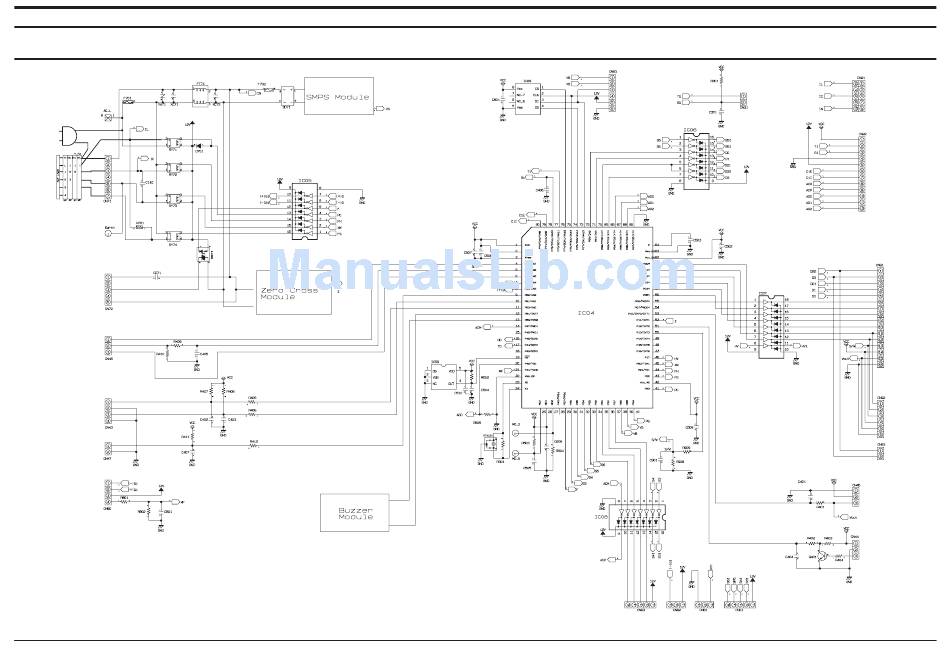

8. Schematic Diagram

8-1 Indoor Unit
This Document can not be used without Samsung's authorization.
Samsung Electronics
8-1
