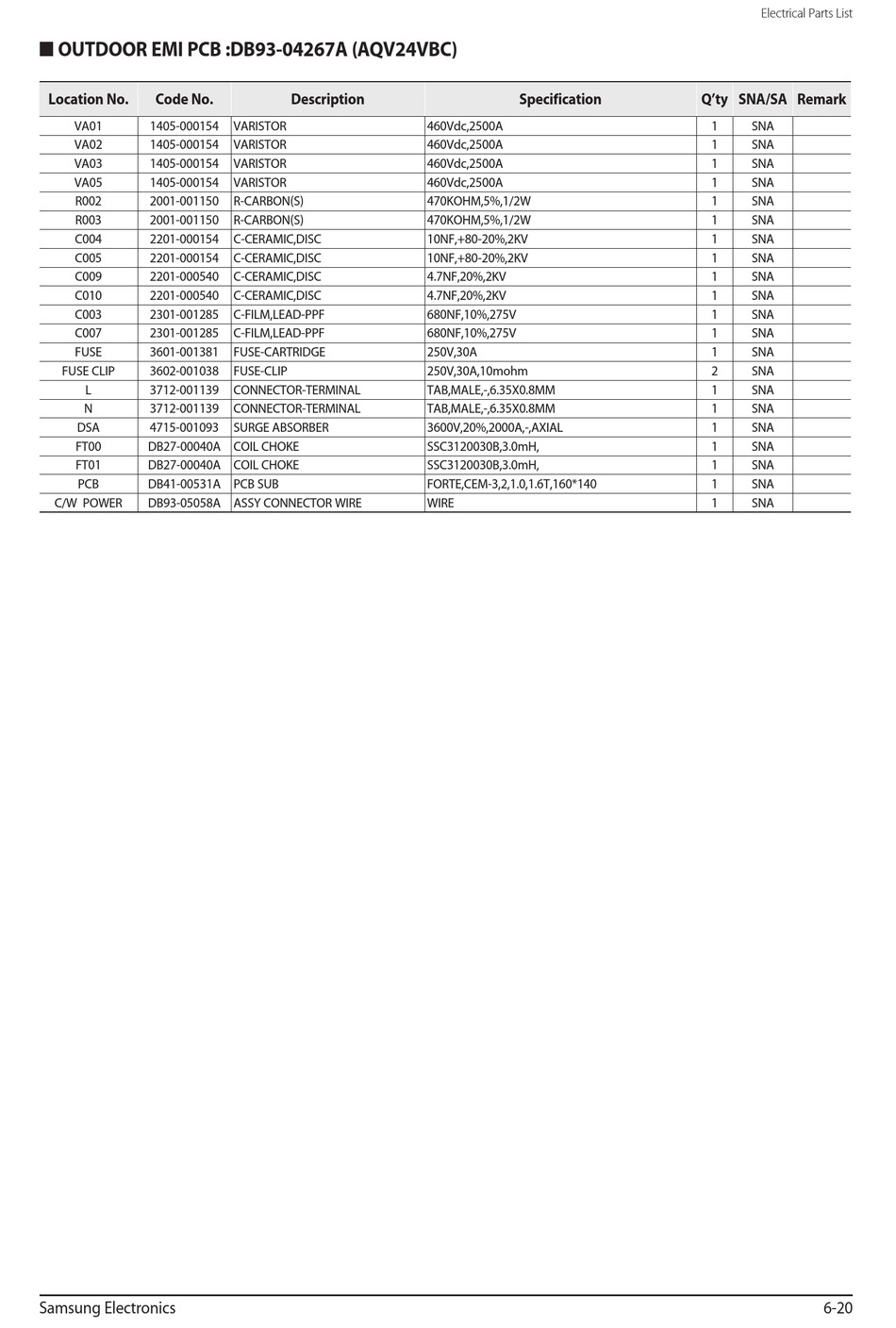

 OUTDOOR EMI PCB :DB93-04267A (AQV24VBC)
Location No. Code No.
VA01 1405-000154 VARISTOR
VA02 1405-000154 VARISTOR
VA03 1405-000154 VARISTOR
VA05 1405-000154 VARISTOR
R002 2001-001150 R-CARBON(S)
R003 2001-001150 R-CARBON(S)
C004 2201-000154 C-CERAMIC,DISC
C005 2201-000154 C-CERAMIC,DISC
C009 2201-000540 C-CERAMIC,DISC
C010 2201-000540 C-CERAMIC,DISC
C003 2301-001285 C-FILM,LEAD-PPF
C007 2301-001285 C-FILM,LEAD-PPF
FUSE 3601-001381 FUSE-CARTRIDGE
FUSE CLIP 3602-001038 FUSE-CLIP
L 3712-001139 CONNECTOR-TERMINAL
N 3712-001139 CONNECTOR-TERMINAL
DSA 4715-001093 SURGE ABSORBER
FT00 DB27-00040A COIL CHOKE
FT01 DB27-00040A COIL CHOKE
PCB DB41-00531A PCB SUB
C/W POWER DB93-05058A ASSY CONNECTOR WIRE
Samsung Electronics
Description
460Vdc,2500A
460Vdc,2500A
460Vdc,2500A
460Vdc,2500A
470KOHM,5%,1/2W
470KOHM,5%,1/2W
10NF,+80-20%,2KV
10NF,+80-20%,2KV
4.7NF,20%,2KV
4.7NF,20%,2KV
680NF,10%,275V
680NF,10%,275V
250V,30A
250V,30A,10mohm
TAB,MALE,-,6.35X0.8MM
TAB,MALE,-,6.35X0.8MM
3600V,20%,2000A,-,AXIAL
SSC3120030B,3.0mH,
SSC3120030B,3.0mH,
FORTE,CEM-3,2,1.0,1.6T,160*140
WIRE
Specification
Electrical Parts List
Q'ty SNA/SA Remark
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
2 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
6-20
