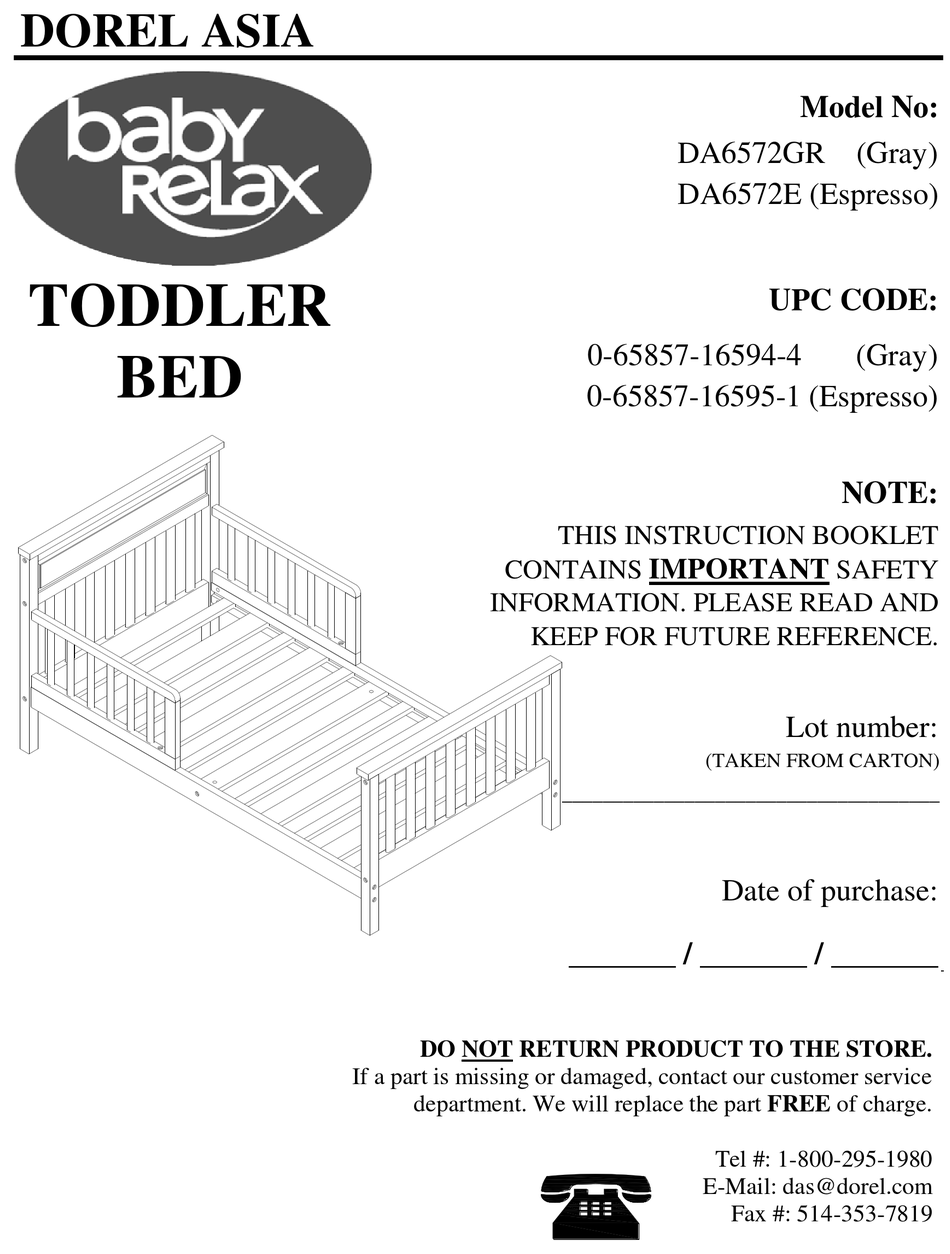

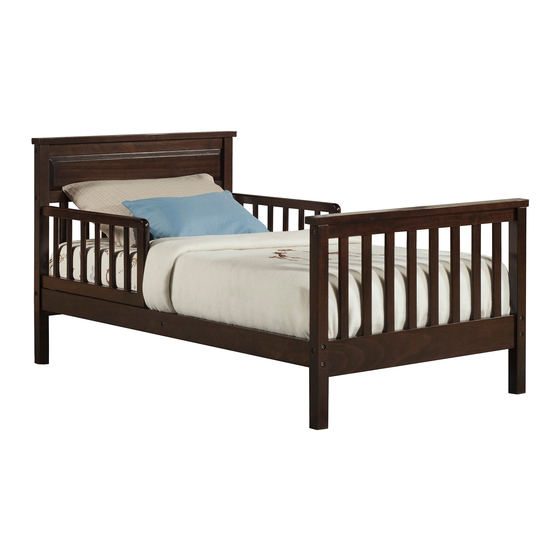

  • Page 1 DOREL ASIA Model No: DA6572GR (Gray) DA6572E (Espresso) TODDLER UPC CODE: 0-65857-16594-4 (Gray) 0-65857-16595-1 (Espresso) NOTE: THIS INSTRUCTION BOOKLET IMPORTANT CONTAINS SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) _____________________________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
  • Page 2 CUSTOMER SERVICE If you are missing parts or have any questions about this product, contact our customer service representative first! CALL 1-800-295-1980 You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the part. Customer Service Department No.
  • Page 3 Check bolts periodically and tighten if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase.
  • Page 4 DA6572GR / DA6572E TODDLER BED HARDWARE LIST Φ 1/4" x 2" Φ 1/4" x 2-1/2" BOLT BOLT 2 PCS 24 PCS Φ 8 mm x 30 mm Φ 10 mm x 40 mm WOOD DOWEL WOOD DOWEL 24 PCS 8 PCS...

  • Page 5: Parts List

    DA6572GR / DA6572E TODDLER BED PARTS LIST HEADBOARD TOP CROSS FOOTBOARD TOP CROSS HEADBOARD PANEL 1 PC 1 PC 1 PC HEADBOARD MIDDLE RAIL BOTTOM CROSS HEADBOARD / FOOTBOARD 1 PC 2 PCS SLATS - 16 PCS LEFT HEADBOARD RIGHT HEADBOARD LEFT FOOTBOARD RIGHT FOOTBOARD...
  • Page 6 DA6572GR / DA6572E TODDLER BED STEP 1 Insert wood dowel (3) into the end of the top cross (A). Attach left headboard post (G) to top cross (A) with bolt (2) and Allen key (6). Slide headboard panel (C ) into the grooves of top cross (A).
  • Page 7 DA6572GR / DA6572E TODDLER BED STEP 2 Insert slats (F) into the holes of the headboard middle rail (D). Insert stoppers (7) and wood dowels (4) into the holes of the bottom cross (E) as shown below. Attach bottom cross (E) to the left headboard post (G) with bolt (2) and Allen key (6).
  • Page 8 DA6572GR / DA6572E TODDLER BED STEP 3 Insert wood dowels (3) and (4) into right headboard post (H) as shown below. Attach right headboard post (H) assembled unit with bolt (2) and Allen key (6). You've finished assembling the headboard.
  • Page 9 DA6572GR / DA6572E TODDLER BED STEP 4 Insert wood dowel (3) into footboard top cross (B). Attach the left footboard post (I) to top cross (B) with bolt (2) and Allen key (6). Insert the slats (F) into the holes of the top cross (B).
  • Page 10 DA6572GR / DA6572E TODDLER BED STEP 5 Insert wood dowels (3) into both ends of slats (N & O). Insert barrel nut (5) into slat (P). Attach the slats (N & O & P) to the right side rail (L) as shown below.
  • Page 11 DA6572GR / DA6572E TODDLER BED STEP 6 Attach left side rail (K) to slats (N, O and P). Insert the barrel nut (5) into the hole of the slat (P). Secure slat (P) to the left side rail (K) with bolt (2) and Allen key (6).
  • Page 12 DA6572GR / DA6572E TODDLER BED STEP 7 Insert the barrel nuts (5) into the holes of the side rails (K & L). Attach the assembled headboard and the footboard to the side rails (K & L) using bolts (2) and Allen key (6).
  • Page 13 DA6572GR / DA6572E TODDLER BED STEP 8 Attach the guardrails (M) to the headboard and side rails (K & L) with bolts (1 & 2) as shown below. Use Allen key (6) to tighten them. STEP 5 STEP 4 STEP 3...
  • Page 14 DA6572GR / DA6572E TODDLER BED CAUTION This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
  • Page 15 MODEL #: DA6572GR / DA6572E Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com...
