Jarvis Buster IX Operation Instructions Manual
  1. Manuals
  2. Brands
  3. Jarvis Manuals
  4. Saw
  5. Buster IX
  6. Operation instructions manual

Jarvis Buster IX Operation Instructions Manual

Carcass splitting band saw
Hide thumbs

Advertisement

Table of Contents

EQUIPMENT
. . . . . . . . . . .
SELECTION

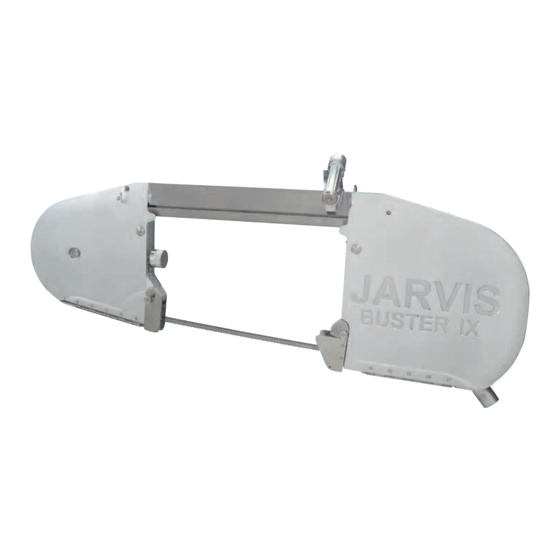

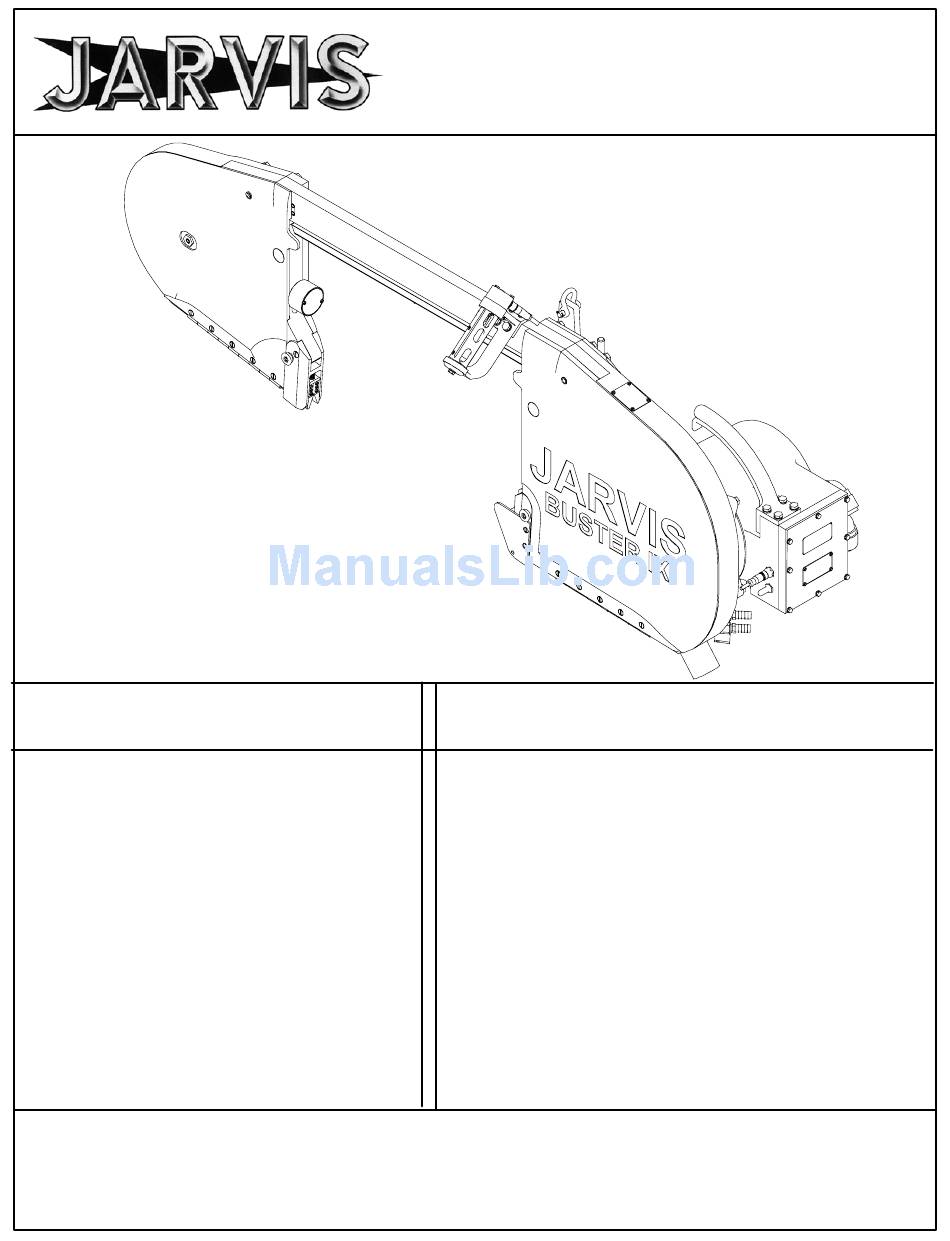

Buster IX Band Saw
480V, 60Hz
. . . . . . . . . . . .
415V, 50Hz
. . . . . . . . . . . .
380--400V, 50Hz
380V, 60Hz
. . . . . . . . . . . .
240V, 60Hz
. . . . . . . . . . . .
230V, 50Hz
. . . . . . . . . . . .
208V, 60Hz
. . . . . . . . . . . .
42V, 50Hz
. . . . . . . . . . . . .
Spring Balancer
. . . . . . . . . . . . .
Air Balancer
48 in (1219 mm) body
120 in (3048 mm) body
Blades:
Standard
. . . . . . . . . . . . . . . . .
Cut Tooth
. . . . . . . . . . . . . . . .
Jet
. . . . . . . . . . . . . . . . . . . . . .
Cut Tooth Jet
. . . . . . . . . . . . .
JARVIS
6206026
Model Buster IX
Carcass Splitting Band Saw
Ordering No.
4006196
4006204
. . . . . . .
4006195
4006197
4006209
4006210
4006220
4006194
4042023
. . . . .
4042016
. . . .
4042020
1023159
1023338
1023620
1023623
®
TABLE OF
CONTENTS
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
• Notice to Employer and Safety
Director
. . . . . . . . . . . . . . . . . . . . . . . . . . .
• Notice to Operators, Maintenance
and Cleanup Personnel
• Parts Diagram and List
• Part Number Table
• Wiring Diagrams
• Specifications
. . . . . . . . . . . . . . . . . . . . .
• Installation Instructions
• Operating Instructions
• Maintenance Instructions
PRODUCTS CORPORATION
33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457- -4926
UNITED STATES OF AMERICA
TEL. 860- -347- -7271
FAX. 860- -347- -6978
. . . . . . . . . . . . . .
. . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . .
. . . . . . . . . . . . . .
. . . . . . . . . . .
jarvis.products.corp@snet.net
E- -MAIL.
.jarvisproducts.com
WWW
Page
2
3
4
12
13
17
17
17
18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Buster IX and is the answer not in the manual?

Questions and answers

Related Manuals for Jarvis Buster IX

Summary of Contents for Jarvis Buster IX

  • Page 1 ......Page Buster IX Band Saw • Notice to Employer and Safety 480V, 60Hz .
  • Page 2 8 Avoid injury. Do not permit the tool to be misused. 9 If you resell or distribute a Jarvis product, you must provide the purchaser with the appropriate safety sheets and tool brochure. Additional copies of safety sheets and tool brochures will be provided upon request.
  • Page 3 Model Buster IX page 3 of 20 Keep hands clear. NOTICE TO OPERATORS, MAINTENANCE AND CLEANUP PERSONNEL REMOVE ANY MALFUNCTIONING TOOL FROM SERVICE REPORT ANY PROBLEMS TO YOUR SUPERVISOR 1. Disconnect the power supply in accordance with OSHA’s lockout/tagout procedures (29 CFR 1910.147) before making any blade changes.
  • Page 4 Model Buster IX page 4 of 20 Figure A Idler End ITEM PART NO. PART NAME 1004154 Washer 1055056 Hex Head Screw 1055752 Hex Head Screw 1004231 Split Lock Washer ITEM PART NO. PART NAME 1010411...
  • Page 5 Model Buster IX page 5 of 20 Figure B Drive End Drain Coupling ITEM PART NO. PART NAME Hot Cold 1014154 Wave Spring 1006052 Door Locking Knob 1013238 External Retaining Ring 1053011 Door Latch Pawl ITEM PART NO.
  • Page 6 Model Buster IX page 6 of 20 Figure C Motor and Handle Assembly ITEM PART NO. PART NAME 1011376 Strain Relief Connector 1004463 Sealing Washer 1007280 Locking Nut 1055758 Cheese Head Screw 1063954 Terminal Block ITEM PART NO.
  • Page 7 Model Buster IX page 7 of 20 Figure D Blade Guide Assemblies 3058092 Drive End 3058100 Idler End 3019307 Figure E Upper Trigger Handle Assy ITEM PART NO. PART NAME ITEM PART NO. PART NAME 1013181...

  • Page 8: Flat Head Screw

    Model Buster IX page 8 of 20 Figure F Hanger Assembly 3080101 Figure G Rail Assembly 3080081 Figure H Torque Knob Assembly 3006010 Set torque knob to slip at 60--65 Ibf--in (6.8--7.3 N--m) ITEM PART NO.

  • Page 9: Hex Head Screw

    Model Buster IX page 9 of 20 Figure I Wheel Assemblies Drive Wheel Assembly 3080088 Idler Wheel Assembly 3080087 ITEM PART NO. PART NAME 1013141 Internal Retaining Ring 1057023 Idler End Wheel 1055945 Hex Head Screw Tighten to 80 Ibf--ft (108.5 N--m);...

  • Page 10: Dowel Pin

    Model Buster IX page 10 of 20 Figure J Gearbox Assembly ITEM PART NO. PART NAME 1021399 Ball Bearing 1016687 Gear Box Housing 1004232 Split Lock Washer ITEM PART NO. PART NAME 1035308 O--ring 1055095 Socket Head Cap Screw...
  • Page 11 Model Buster IX page 11 of 20 Control Box Assembly Figure K (see table 1) JARVIS PRODUCTS CORPORATION ® 33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457- -4926 jarvis.products.corp@snet.net UNITED STATES OF AMERICA E- -MAIL. 6206026 .jarvisproducts.com TEL. 860- -347- -7271...
  • Page 12 Model Buster IX page 12 of 20 TABLE 1 - - CONTROL BOX (See Figure K ) Saw Voltage/Hz 42V/50 115V/50 200V/50 208V/60 230V/50 240V/60 380V/60 400V/50 415V/50 480V/60 575V/60 Part Number 4006194 4006220 4006210 4006209 4006197 4006195...

  • Page 13: Wiring Diagrams

    Model Buster IX page 13 of 20 Wiring Information for 42 V, 3 phase, 50 Hz Wiring Information for 208 V, 3 phase, 50 Hz JARVIS PRODUCTS CORPORATION ® 33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457- -4926 jarvis.products.corp@snet.net UNITED STATES OF AMERICA E- -MAIL.
  • Page 14 Model Buster IX page 14 of 20 Wiring Information for 230 V, 3 phase, 50 Hz Wiring Information for 380- -400 V, 3 phase, 50 Hz JARVIS PRODUCTS CORPORATION ® 33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457- -4926 jarvis.products.corp@snet.net UNITED STATES OF AMERICA E- -MAIL.
  • Page 15 Model Buster IX page 15 of 20 Wiring Information for 415 V, 3 phase, 50 Hz Wiring Information for 480 V, 3 phase, 60 Hz JARVIS PRODUCTS CORPORATION ® 33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457- -4926 jarvis.products.corp@snet.net UNITED STATES OF AMERICA E- -MAIL.
  • Page 16 Model Buster IX page 16 of 20 Wiring Information for 480 V, 3 phase, 60 Hz without Door Interlocks JARVIS PRODUCTS CORPORATION ® 33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457- -4926 jarvis.products.corp@snet.net UNITED STATES OF AMERICA E- -MAIL. .jarvisproducts.com TEL.

  • Page 17: Specifications

    3.1 Ensure that the trolley has sufficient travel to triggers simultaneously (within one half second allow the Buster IX to reach the entire work area. of each other) and the tool should start. With the 4 Suspend the Buster IX from the balancer.

  • Page 18: Cheese Head Screw

    Depress one trigger, then pause one second and depress the other trigger and the tool should not 2.3 Make sure that the Buster IX moves freely on its start. Repeat this procedure reversing the balancer.

  • Page 19: O--Ring

    2.1.9 Apply Jarvis 1315 White Grease to each 1.4.1 Tighten the bearing lock nut (item 3) to 80 ball plunger (item 27) and to the roller lbf- -ft / 108.5 N- -m. Jarvis wrench 8039120 bearing (item 26). is available for item 3.
  • Page 20 Model Buster IX page 20 of 20 PRODUCTS CORPORATION JARVIS PRODUCTS CORPORATION ® JARVIS PRODUCTS CORPORATION ® 33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457- -4926 33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457- -4926 jarvis.products.corp@snet.net UNITED STATES OF AMERICA E- -MAIL • •...
