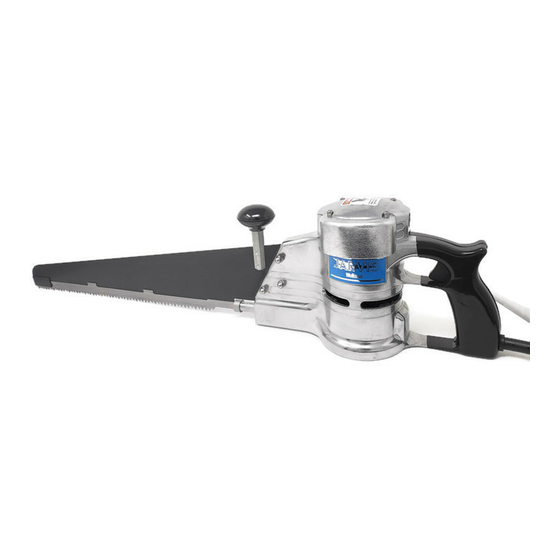

  • Page 1: Table Of Contents

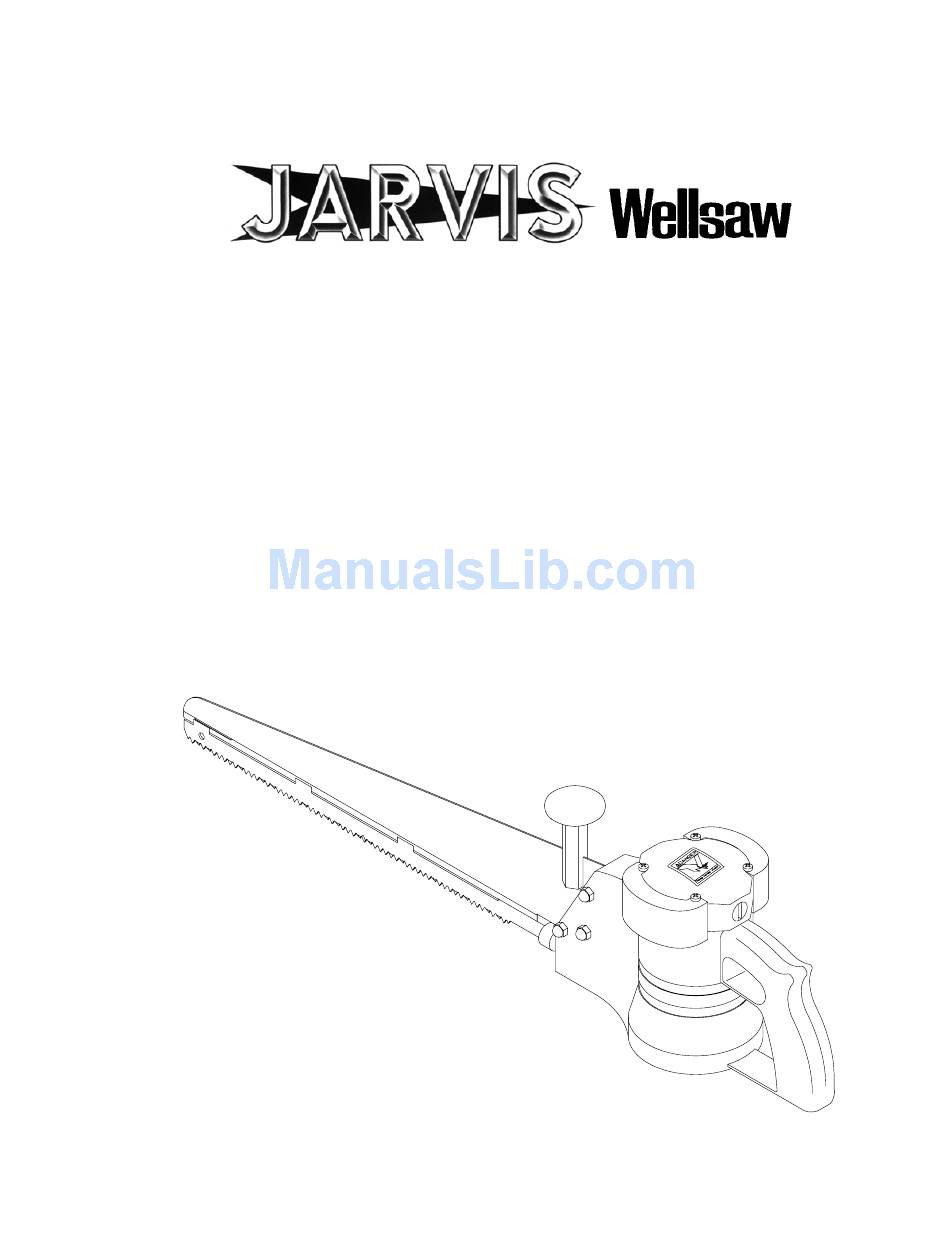

    ........JARVIS PRODUCTS CORPORATION ®...

  • Page 2: Notice To Employer And Safety Director

    10. Avoid injury. Do not permit the tool to be misused. 11. If you resell or distribute a Jarvis product, you must provide the purchaser with the appropriate safe- ty sheets and tool brochure. Additional copies of safety sheets and tool brochures will be provided upon request.

  • Page 3: Notice To Operators, Maintenance And Cleanup Personnel

    13. Always use both hands when starting and operating the tool to avoid the risk of possible “kick back” or “recoil.” Continue holding the tool with both hands until the saw blade comes to a complete stop. JARVIS PRODUCTS CORPORATION ®...

  • Page 4: Parts Diagram

    MODEL 404 pg 4 of 12 JARVIS PRODUCTS CORPORATION ® 33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457--4926 jarvis.products.corp@snet.net UNITED STATES OF AMERICA E--MAIL .jarvisproducts.com FAX 860--347--6978 TEL. 860--347--7271 6205006;:...

  • Page 5: Parts List

    MODEL 404 pg 5 of 12 JARVIS JARVIS PART NO. ITEM PART NO. PART NAME PART NO. PART NO. ITEM PART NAME 1063112 501022--005 Brush Cap 3001008 501006 Cord and Plug with 1063111 501022--004 Brush and Spring strain relief, 115V...

  • Page 6: Specifications

    MODEL 404 pg 6 of 12 SPECIFICATIONS wire to a live terminal. If your Jarvis Wellsaw is the 115 Motor Power 1 hp 745 W volt model, it has a plug that looks like figure ”A”. If Operating Volt/Amp 230V/3.5A, 1 phase, 50/60 Hz...

  • Page 7: General Safety Instructions

    USE THE RIGHT TOOL AND ATTACHMENTS. Select the proper tool to do the job. The Jarvis Wellsaw is designed for meat and bone • cutting; wood cutting; non- -woven and geo- -textile cutting. Do not use the Jarvis Wellsaw for non- -intended purposes.

  • Page 8: Operation Instructions

    1. Rocking the saw in the cut will speed up the cut- ting action. Before starting regular operation of the Jarvis Wellsaw, C. SINKING THE BLADE THROUGH A SUR- we recommend that you make a few cuts with a fine pitch...

  • Page 9: Maintenance Instructions

    MODEL 404 pg 9 of 12 MAINTENANCE INSTRUCTIONS C. BLADE REMOVAL: NOTE: Your Jarvis Wellsaw is equipped with a Always disconnect the saw from its power supply hex key (item 21) for removing the blade. This before performing any maintenance.

  • Page 10: Model 404

    (item 49) by using a center punch mature. (Pinion gear - - item 12 - - on the arma- to tap the armature until its bearing is fully ture has a left hand thread). seated. JARVIS PRODUCTS CORPORATION ® 33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457--4926 jarvis.products.corp@snet.net...
  • Page 11 MODEL 404 pg 11 of 12 JARVIS PRODUCTS CORPORATION ® 33 ANDERSON ROAD, MIDDLETOWN, CONNECTICUT 06457--4926 jarvis.products.corp@snet.net UNITED STATES OF AMERICA E--MAIL .jarvisproducts.com FAX 860--347--6978 TEL. 860--347--7271 6205006;:...

  • Page 12: Products Corporation
