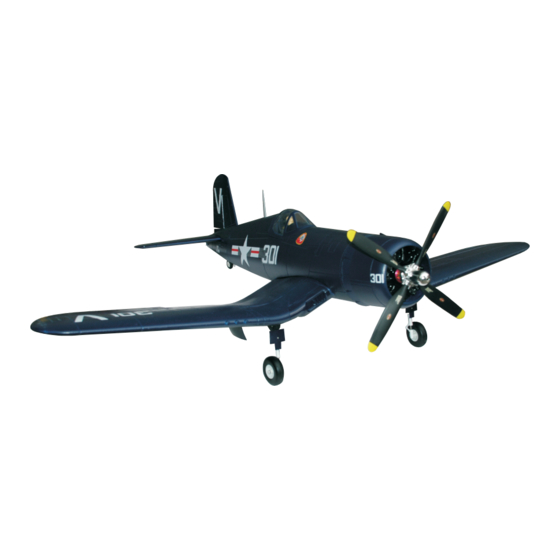

FMS F4U CORSAIR Operating Manual

Please read before operating this system!
We would like to thank you for purchasing an innovative new product, designed for the
hobby enthusiast. The F4U incorporates the use of a Radio Transmitter, a speed
controller, a electronic motor, and electronic servos to provide long time enjoyment and
give the user an introduction into the excitement of R/C flight.
Main specification
SPECIFICATION
FMS 024-1
Wingspan : 1430mm /56.3 in
Length : 1140mm /44.9 in
Weight : 2000g /70.5oz
CG Position : 90mm
Battery : 14.8V Li-Po Battery
ESC : 50A
Motor : Outrunner Brushless Motor
Wing Area
: 35dm 2
Wing Load : 57.1g/dm 2
RC System : 6 Channel, 7 Servos And 1 Brushless ESC
The airplane offers the following characteristics
High speed, high scale performance, and suitable for mediate or a above level
modelers.
1
A S S E M B LY
Preparation before flight
7. Connect the wires to the 8. Install the bracket.
Screw-PM3.0X25 (4PCS)
receiver.
1. Throttle in lowest level, the same with
trim
9. Install the spinner. 10. Install the antenna.
3.Connect power battery, adjust the
elevator and rudder.
11. Battery position. 12. Turn on the transmitter
before starting the power
supply.
13. Connect the battery. 15. Install the canopy.
6
Shenzhen Famous Electronic Tech Co.,Ltd.
rd
Add: 4/F,Building5,The 3 Industry Zone, Tangtou, Shiyan Town,
Bao'an District, Shenzhen City, China 518105
Tel: +86-755-29681351
Fax: +86-755-29512328
Email: info@fmsmodel.com
Http:// www.fmsmodel.com
Statement
1 This is not a toy. lt is for experienced modelers only. You are responsible for the safe
operation of this model and any damage or harm it may cause;
2 Please adjust this plane according to instruction and make sure finger and other parts
out of rotating parts of plane, or it may cause damage to the plane or injury.
3 Users should follow all instructions properly and assemble the model correctly. it is
your responsibility to insure the battery's charged
correctly, following the instructions.
Safety precautions！
Please read this section until you fully understand!
(1) Do not fly in strong wind or bad weather
(2) Never fly the model in crowded areas, where there are lots of people, automobiles
on the road or power lines overhead. Also do not to fly around the airport. Please
make yourself enough room for the flying and operating, as the plane can travel at
high speed. Remember you are responsible for the safety of others.
2
Notice!
Don't fly the airplane until one hour later after finishing assembly, as the glue may not function well.
2.Turn on the transmitter.
CENTER OF GRAVITY (C.G.)
90mm
7
F4U CORSAIR
OPERATING MANUAL
ltd.
Shenzhen Famous Electronic Tech Co.,
(3) Children under the age of 12 should have an adult guide. Never recommend for the
children under the age of 14.
(4) Never leave the charger in wet conditions.
(5) The F4U is made from PA and polythene which are tinder. When it meets the heat,
transfiguration can easily happen, so you must keep it away from heat.
3
SPARE PART LIST
Fuselage Main Wing Set Elevator Rudder
Linkage Rod
Spinner Propeller Canopy
Brushless Motor
17g Servo Brushless ESC
9g Servo Landing Gear Set Battery Screw Set
Motor Mount Motor Board 6CH 2.4GHz Receiver
Sticker Cowl Landing Gear Cover Set 6CH 2.4GHz Transmitter
Flight Preparation
Make sure that batteries in your transmitter are fresh and the antenna is extended all the
way up. This will ensure full range for your aircraft. lf you notice the plane is going to crash,
cut throttle immediately. This will minimize damage.
8
(6) Do not attempt to catch the F4U while flying, please do not touch the propeller.
(7) Never leave this system unattended around children with battery in the unit, as injury
may be caused due to children's turning on the transmitter or the plane.
(8) During the preparation for the flight, please remember to turn on the transmitter before
connecting the battery pack.
(9) Close the throttle on the transmitter before connecting battery otherwise the motor may
operate.
4
Flight adjustment
1. F4U will fly better with fully-charged batteries.
2. Keep flight straight: when you find it is difficult to fly straightly, please adjust the trim on
the transmitter. For example, when you find F4U always fly leftward please push the trim
on the transmitter inverse direction---right, as this will move the rudder to compensate.
3. Keep flight horizontal: when you find it is difficult to fly F4U straightly, please adjust the
trim on the transmitter. For example, when you find it always fly upward; please push the
trim on the transmitter toward the top, as this will adjust the position of the elevator.
Flight attention
1. Never fly in strong wind.
2. Do not fly at any place where another same-frequency model is flying.
3. Taking off:
Always take off toward the wind;
lf you want to launch F4U by hands, maximize the power(including the micro
adjustment)and run several meters to accelerate yourself, at last throw it horizontally.
lf you want to launch F4U on the ground, maximize the power and let it accelerate, keep it
running straightly, after it runs more than 60 feet, you can pull the elevator joy stick, and it
will take off.
4. Course: you need only 30% of the maximum power to keep F4U flying. lt is a good
idea to fly with power for a while and glide for a while .
In this way You can increase your maximum flight time and familiarize yourself with
landing approaches.
5. Landing: Before landing, switch off the power, fly toward the wind, and when F4U flies
near to the ground, you may pull the elevator joystick and it will land gently. It really
needs practice, although it sounds easy. it may be difficult for yo until you do this many
times.
9
A S S E M B LY
1. Install the rear landing gear. 2. Connect the wires.
CH5.B for electronic retract
landing gear.
CH5.C for the cover of the
landing gear.
3. Install the main wing . Screw-PM3X75 (2PCS)
Screw-PM3X50 (2PCS) 4. Install the elevator.
Screw-PA2.6X25 (2PCS)
5. Install the rudder. Screw-PA2.6X25 (2PCS) 6.Connect sequencer to
Channel 5 (Gear)
Note Signal wire (Orange).
5
