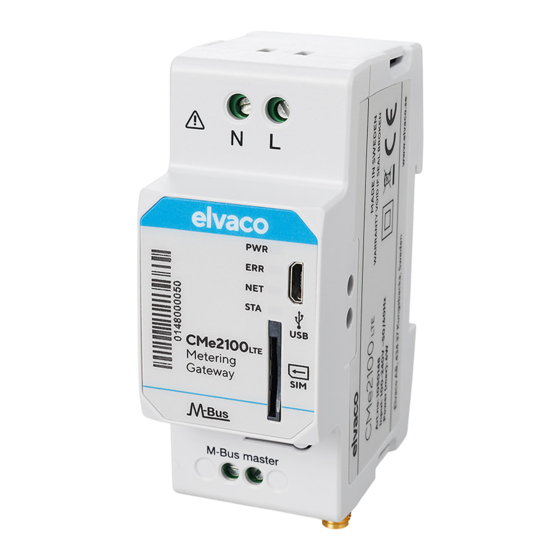

CMe2100 LTE
M-Bus Metering Gateway for mobile network
INTRODUCTION
CMe2100 LTE is a flexible and cost-effective DIN-mounted M-Bus
Metering Gateway for Mobile Network. It is compatible with all meters
following the M-Bus standard. For a complete description of the
product, visit the Elvaco AB website, www.elvaco.com.

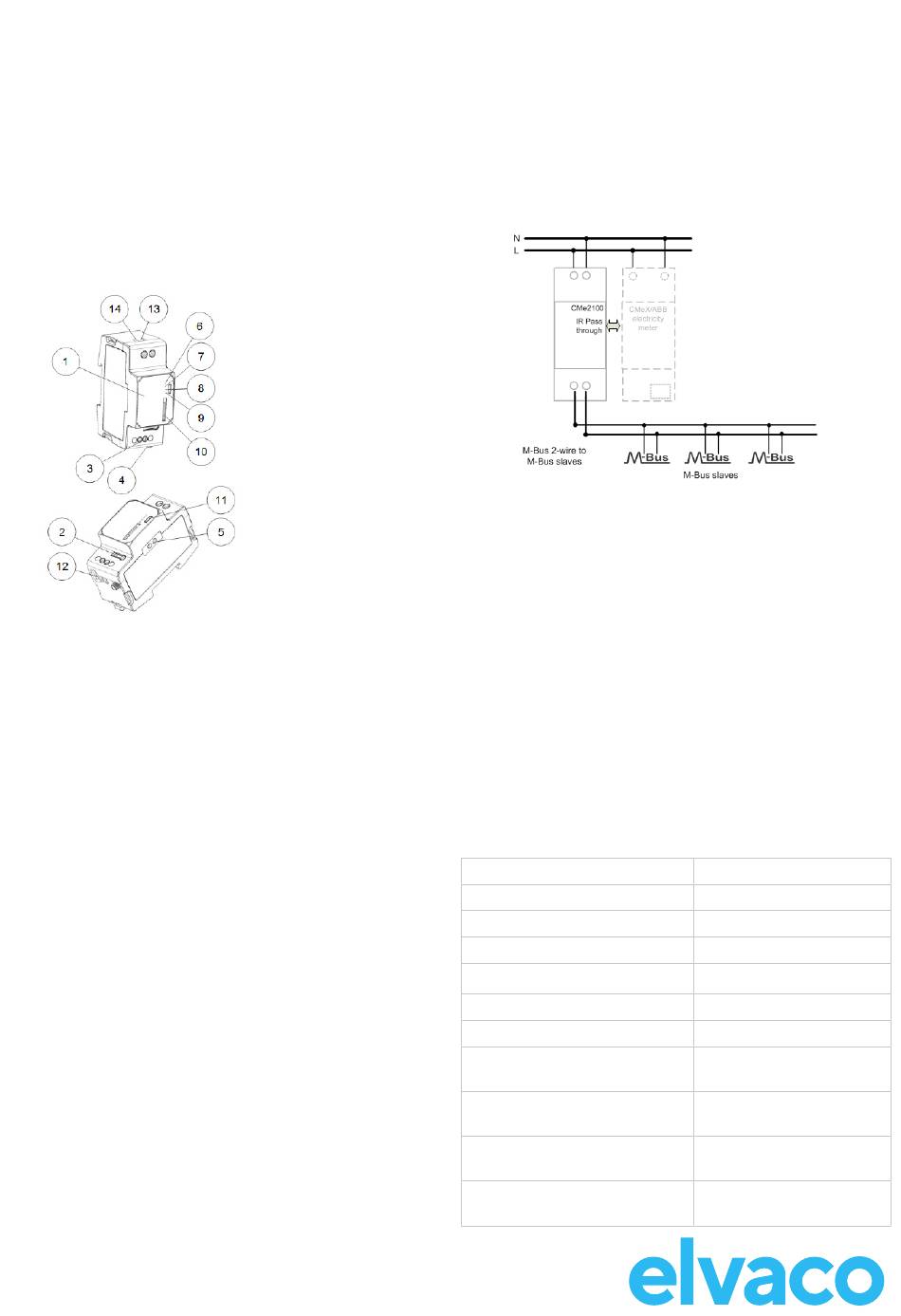

OVERVIEW
MOUNTING
The CMe2100 LTE should be mounted on a DIN-rail. The plastic clip on
the bottom is used to mount and demount the unit from the DIN-rail. For
safety reasons, a DIN-rail enclosure must cover the terminals.
SIM CARD
Install the SIM card into the SIM card holder (10). Remember the phone
number for later use.
IMPORTANT
•
The SIM card shall not have any PIN code activated.
•
The SIM card must have 2G/3G/LTE internet access activated for
full functionality.
•
If a prepaid SIM card is used, ensure that enough credits are
available.
POWER SUPPLY
The installation should be performed by a qualified electrician or installer
with required knowledge. The power supply should be connected via
a clearly marked, easily accessible and close switch so the unit can be
switched off during service work. The main supply should be connected
to screw terminal (13) and (14). Main supply voltage should be in the
range of 100-240 VAC, 50/60 Hz.
M-BUS 2-WIRE BUS
M-Bus is a multi-drop 2-wire bus with no polarity. Use a cable of area
0.25-1.5 mm
, e.g. a standard telephone cable (EKKX 2x2x0.5). Connect
2
the wiring to the connector (3). Do not exceed the maximum cable
length of 1000 m.
1.
Serial number
2.
Push button
3.
M-Bus connector
4.
Antenna SMA connector
5.
IR interface
6.
Status LED (green)
7.
Error LED (red)
8.
Network LED (yellow)
9.
Blue LED (not used)
10. SIM card holder
11.
USB slave connector
12.
USB master connector
13.
Power supply L
14.
Power supply N
IMPORTANT
The product handles up to 256 meters. Use an M-Bus extender for
installations with more meters than the product limit.
All connected M-Bus slaves must have unique primary or secondary
M-Bus addresses depending on addressing mode.
ANTENNA
An external antenna is needed for CMe2100 LTE, this is ordered
separately. Please visit www.elvaco.com to find a suitable antenna option.
The antenna should be connected to the SMA connector (4). If the unit
is mounted in a metal cabinet, the external antenna should be mounted
outside the metal cabinet.
IMPORTANT
•
CMe2100 LTE should be connected to the antenna when the
antenna wiring is done. Otherwise the SMA connector can be
damaged.
•
Do not mount the antenna close to the M-Bus 2-wire bus.
•
Do not mount the antenna inside a metallic cabinet.
INSTALLATION/SEND SMS COMMAND
CMe2100 LTE is configured with SMS commands. Send any command
from the table below in a text message to the phone number of the
product.
Function
New installation of meter
Change of meter
Add meter on the bus
Signal strength/is the terminal alive?
Is mobile data working?
Send momentary values via e-mail
Send momentary values to a specific
recipient
Receive meter values via sms
Receive meter values as excel files
Receive hourly values once every
day as excel files
SMS command
install n [profile]
install n [profile] clean
install n [profile] keep
status
timesync
momreport
momreport email.to=name@
domain.se
momreport 101 [secondary
address]
report 1day 1104 email.
to=name@domain.se
sch report1 1day 1104
