Rear panel

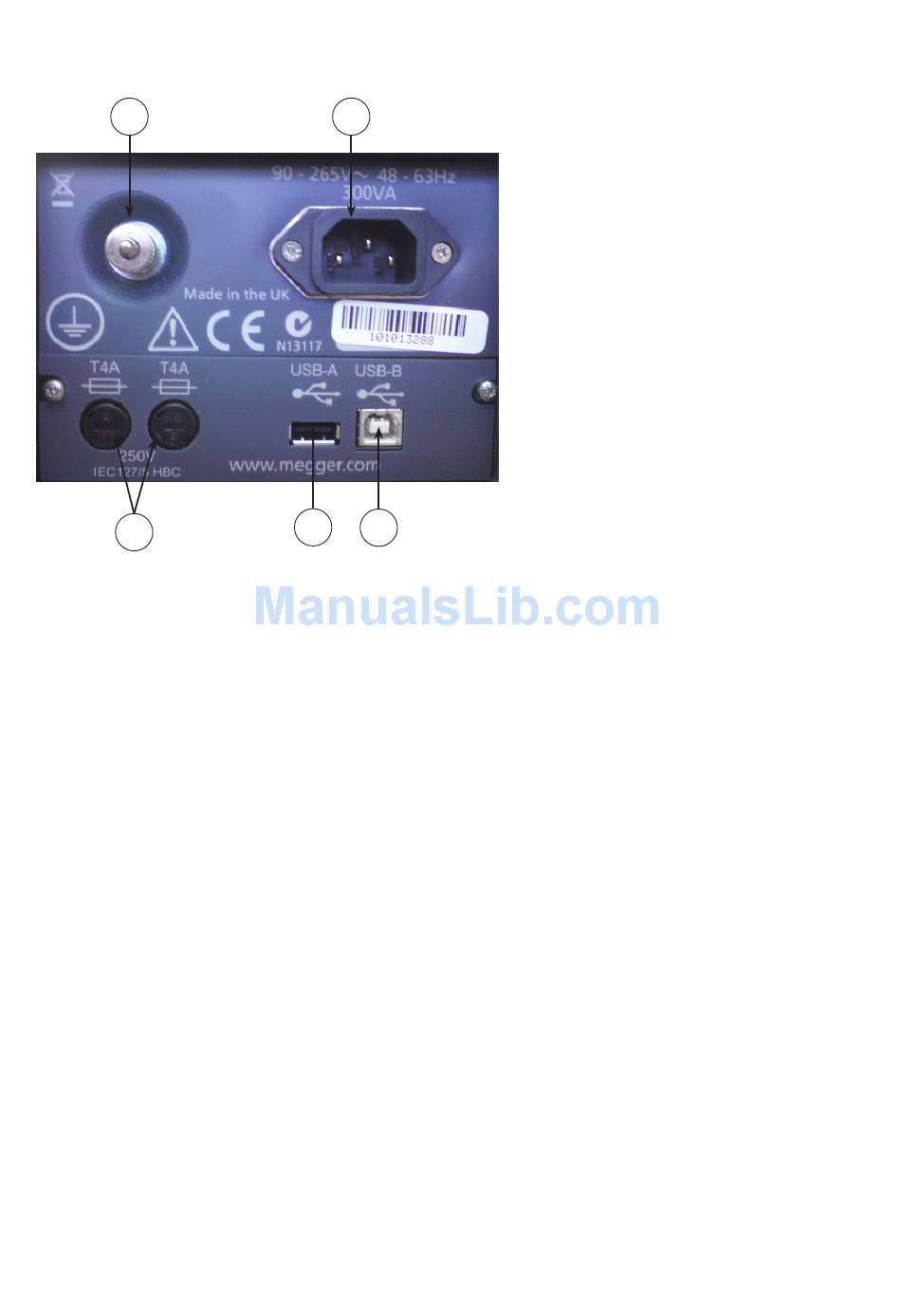

The rear panel illustrated below accommodates all connections to the instrument with the exception of a front
facing USB interface.
1
3
Line power is applied via an IEC socket (2) and is fused (3). It is mandatory for safe operation that an earth ground
cable is attached to this instrument before performing tests. The ground connection is identified as item 1 in the
illustration. Attention must be paid to product warnings and markings.
Two USB interface connectors, one type A (4) and one type B (5), offer USB host and device interfaces. A second USB
type A (host) interface is located on the front of the instrument for user convenience. The USB type A interface (4) is
used to drive a printer or flash/hard disk drive.
8
2
4
5
Item description
1. Ground connection with cable lug
2. IEC line power socket
3. Fuses
4. USB Type A socket
5. USB Type B socket
