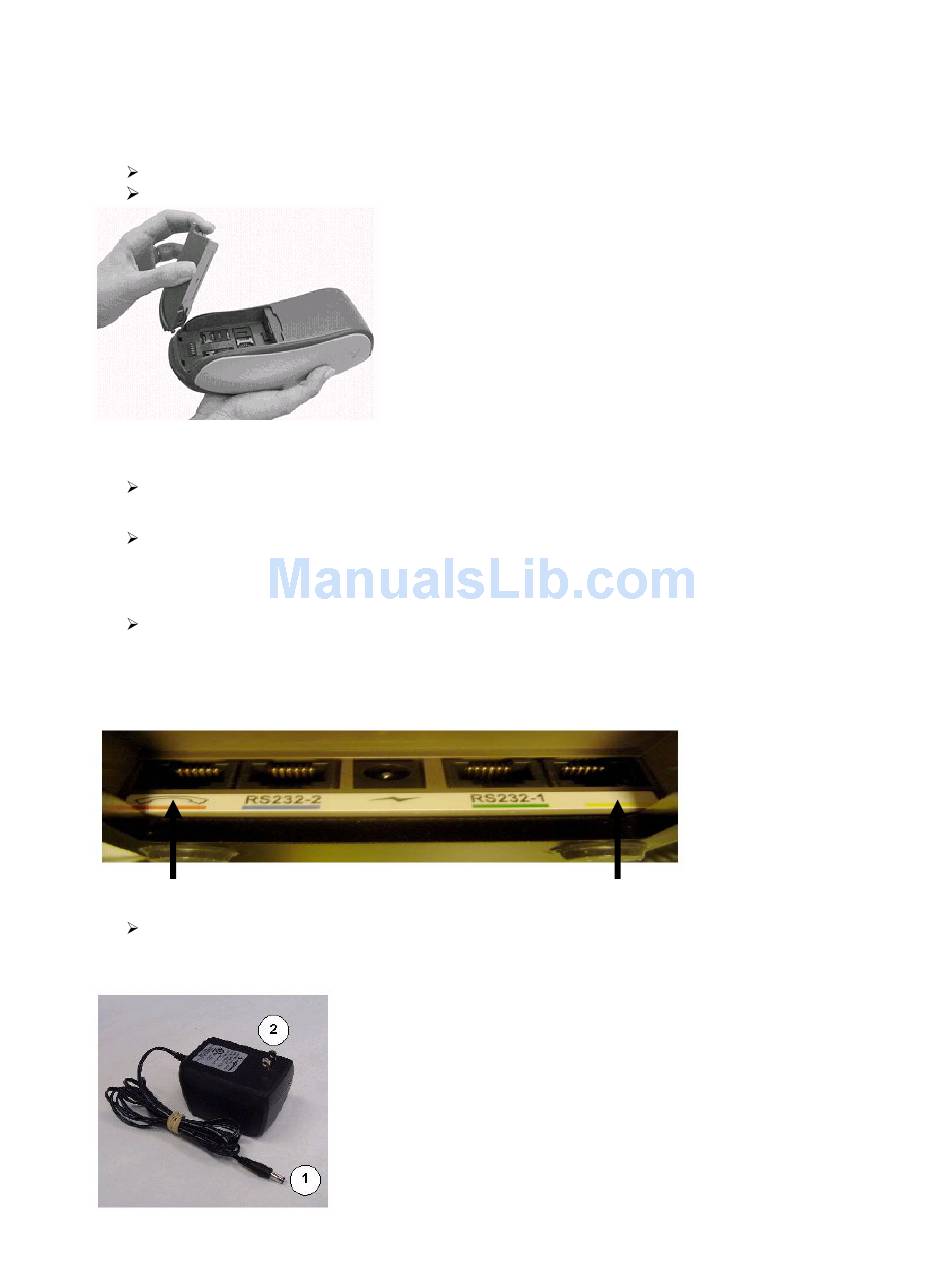

Setting up the Terminal

Note: Remember to remove the Red Tab between the Battery and the Terminal
Place the terminal on the base.
Ensure that the contacts on the battery are touching the contacts on the base
If installing on dial up (analog phone line)
Plug phone cable into red bar on back of terminal base (see Picture #1.) Plug other end of cable
into phone jack.
If using a 2 way splitter, sometimes it may be necessary to test both sides ( if sharing a line and
using a splitter, the terminal and the phone cannot be used at the same time )
If installing on IP (Ethernet)
Plug Ethernet cable into yellow bar on back of terminal base (see Picture#1.) Plug other end of
cable into router/switch/hub/internal wiring – whatever is applicable to your specific location
(please refer to IP readiness checklist if necessary)
Picture #1
(dial red)
Locate the power cord (See picture #2)
Picture #2
.
(Ethernet yellow)
