ATB HiSpeed 8200
Merchant Self Installation Guide
IMPORTANT – If this is your first POS device with ATB Financial, in the package with
your POS device you should have received your ATB Financial Visa Merchant Agreement /
ATB Financial MasterCard Merchant Agreement / ATB Financial Debit Card and
Terminal Agreement. If you did not receive this document, please do not proceed with this
installation. Please contact us at 1-866-433-5204, Select option 1 for English and Option 3
for Technical support. Once you have obtained a copy of this document please proceed
with your install.
If you have an existing POS device with ATB financial, this document is not required to
proceed with your installation.
© Copyright Moneris Solutions, 2008.
All rights reserved. No part of this publication may be reproduced, stored in retrieval system, or transmitted, in any form or
by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of
Moneris Solutions.
Advertisement
Table of Contents
Summary of Contents for ATB HiSpeed 8200

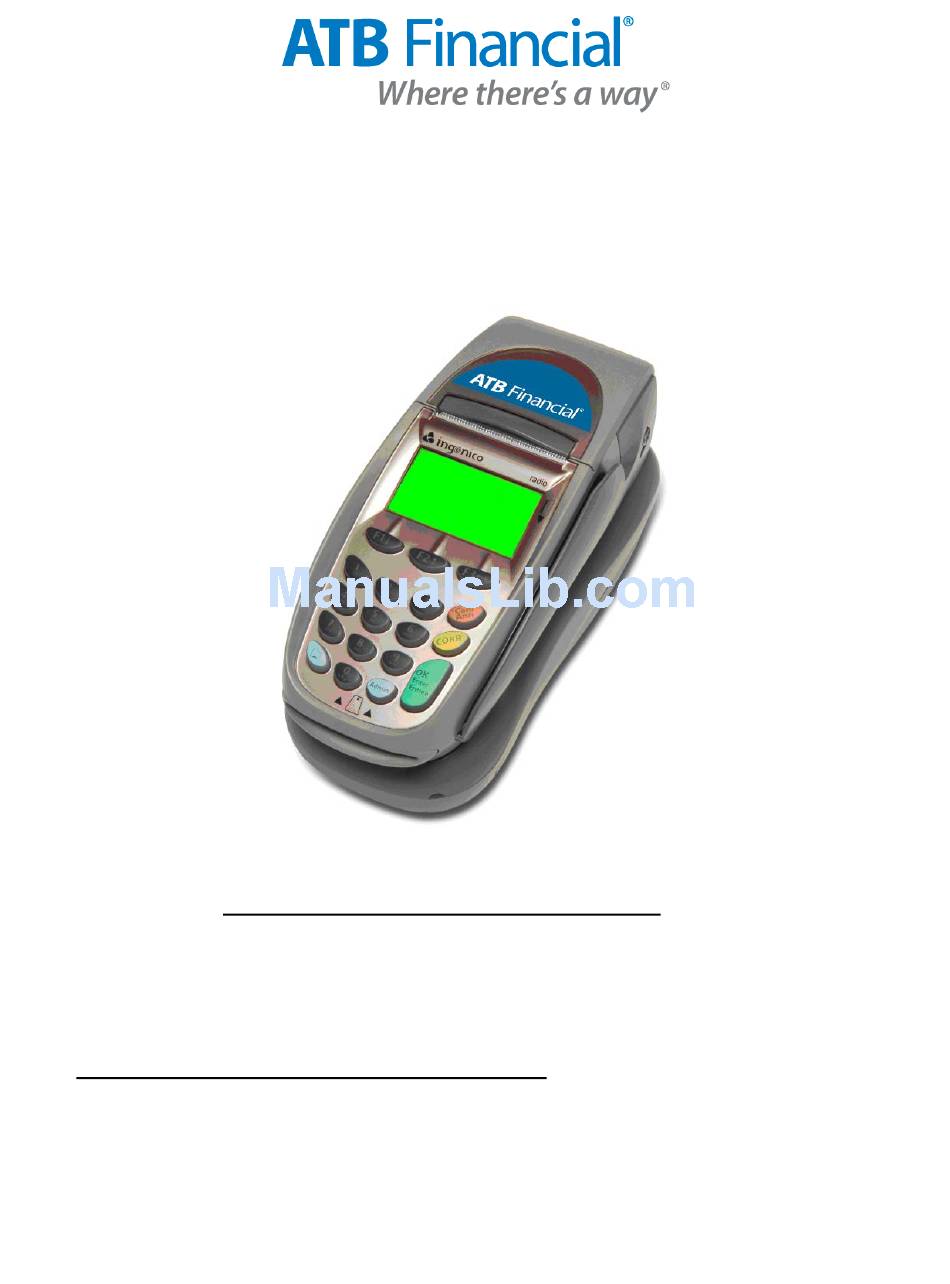

- Page 1 ATB HiSpeed 8200 Merchant Self Installation Guide IMPORTANT – If this is your first POS device with ATB Financial, in the package with your POS device you should have received your ATB Financial Visa Merchant Agreement / ATB Financial MasterCard Merchant Agreement / ATB Financial Debit Card and Terminal Agreement.
- Page 2 Setting up the Terminal Note: Remember to remove the Red Tab between the Battery and the Terminal Place the terminal on the base. Ensure that the contacts on the battery are touching the contacts on the base If installing on dial up (analog phone line) Plug phone cable into red bar on back of terminal base (see Picture #1.) Plug other end of cable into phone jack.
- Page 3 Full charging time after the first time is 2 hours. The ATB Mobile 8200 terminal does not have an ON/OFF switch. To help reduce battery usage, power down the terminal when you are not using it.
-
Page 4: Configuring The Terminal
Configuring the Terminal Step 1 Picture #3 Register the Terminal to the Base A maximum of seven terminals can be registered to one communications base for IP setups. Only 1 terminal should be setup on Dial. A maximum of seven terminals can be registered to one communications base. - Page 5 The terminal will now ask for your MERCHANT ID NUMBER which is your existing merchant number with ATB Financial. It is a 13 digit number. NOTE - You can confirm your existing merchant number by printing an ADMIN 16 report on your existing terminal.
- Page 6 For IP Communication and Initialization– If Dynamic IP - Press the blue Admin key twice, enter Admin code 08, press OK Select COMMS TYPE. Select ETHERNET. Select TERMINAL SETUP. Select TERMINAL TYPE. Select DYNAMIC. Press Can/Ann twice The screen will say TERMINAL SETUP REQUIRED. Please Proceed to Initialization steps below Note –...
- Page 7 The terminal will now ask for your MERCHANT ID NUMBER which is your existing merchant number with ATB Financial. It is a 13 digit number. NOTE - You can confirm your existing merchant number by printing an ADMIN 16 report on your existing terminal.
- Page 8 Further Instructions Printer Options The printer is set up for the second receipt to come out in 10 seconds of the first. To change this setting: Press admin button twice, enter admin code 14 & push OK. At “preprint” scroll down using F1 to print delay, press OK. Put in the number of seconds you want the second receipt to come out.
