4. Connecting with a target device

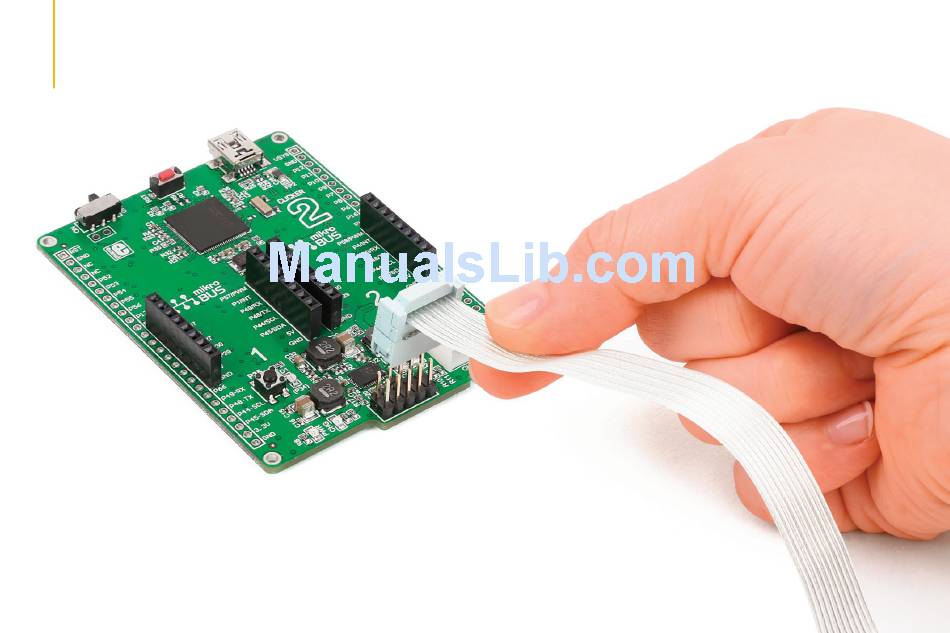

Figure 4-1:
mikroProg
connector
For connection with a target device mikroProg uses a 2x5 connector, as shown on Figure 4-1. In order
™
to make proper connection with the target board it is necessary to pay attention to the IDC10 connector
pinout. Every pin has a different purpose and for easy orientation IDC10 connector is marked with a little
knob and incision between pins number 9 and 7, Figure 5-1.
