DT8012F4 / DT8012F5 DUAL TEC
QUICK LINKS

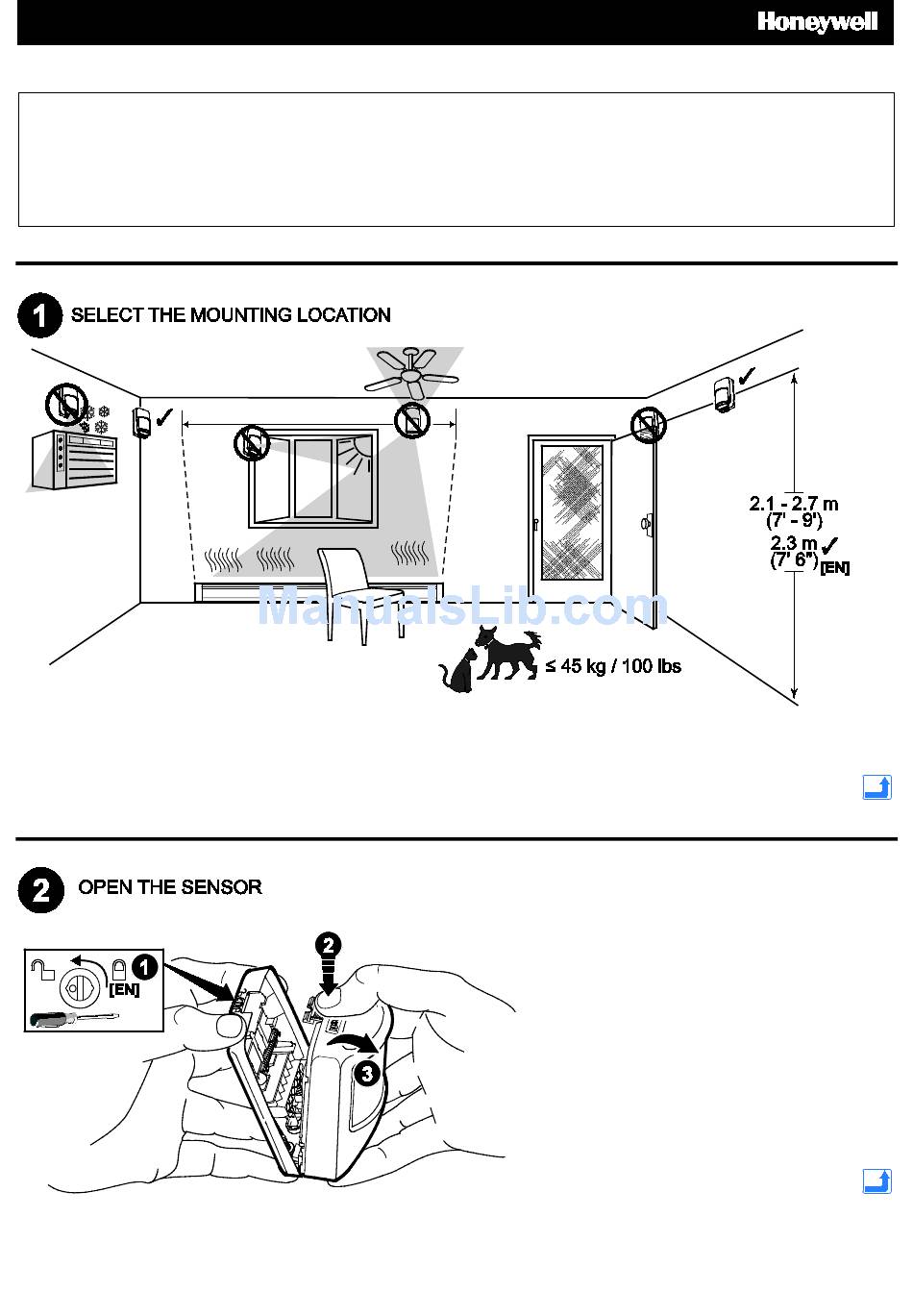

Mounting Location Guidelines

Open the Sensor

Mounting location guidelines:
• The optimal range is obtained at a mounting height of 2.3 m (7' 6").
• Allow a clear line-of-sight to all areas to protect.
• Do not directly face windows.
• Avoid close proximity to moving machinery, fluorescent lights and heating/cooling sources.
• For use in applications with pets up to 45 kilograms (100 pounds).
Motion Sensor – Installation Instructions
®

Detection Patterns

[EN] = approved installation.
1. Turn the arrow to point to the Unlock symbol.
2. Press firmly on housing latch.
3. Gently separate the front and rear housing.
