Honeywell V-Plex Series Installation Instructions Manual

Motion sensor with anti-mask
Hide thumbs

Advertisement

Quick Links

DT8050A-SN
®
V-Plex
DUAL TEC
*

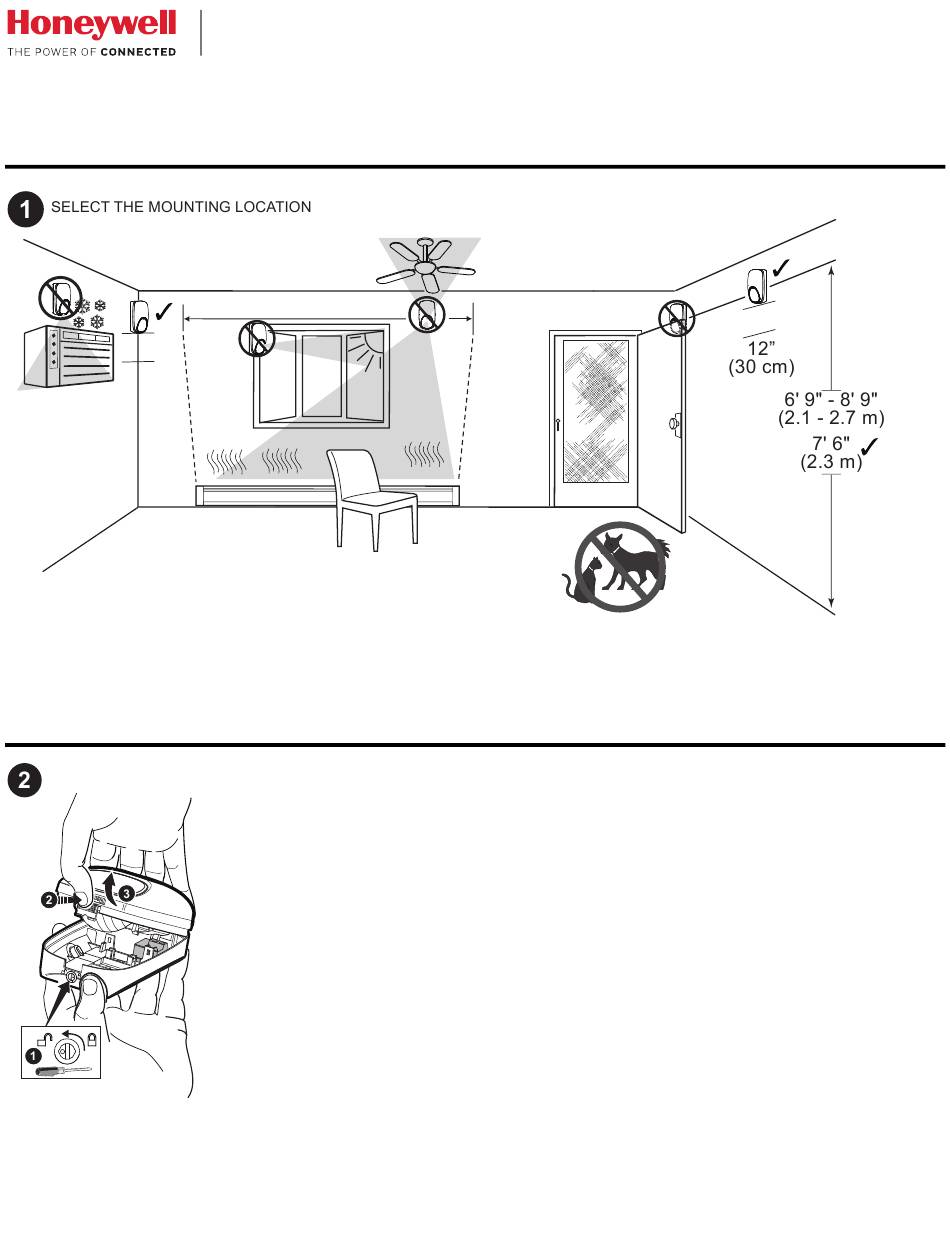

Mounting location guidelines:

• The optimal range is obtained at a mounting height
of 7' 6" (2.3m).
• Allow a clear line-of-sight to all areas to protect.
• Avoid mounting anything within 12" (30cm) in front of the sensor*.
• Do not directly face windows.
• Avoid close proximity to moving machinery, fluorescent lights, and heating/cooling sources.
• Not for use in applications with pets.
OPEN THE SENSOR
DT8050A-SN_step2-ii
V-Plex® Series Motion Sensors
®
Motion Sensor with Anti-Mask - Installation Instructions
1. Turn the arrow to point to the Unlock symbol.
2. Press firmly on housing latch.
3. Gently separate the front and rear housing.
*

Advertisement

loading

  Related Manuals for Honeywell V-Plex Series

  Summary of Contents for Honeywell V-Plex Series

  • Page 1 V-Plex® Series Motion Sensors DT8050A-SN ® ® V-Plex DUAL TEC Motion Sensor with Anti-Mask - Installation Instructions Mounting location guidelines: • The optimal range is obtained at a mounting height of 7’ 6” (2.3m). • Allow a clear line-of-sight to all areas to protect. •...
  • Page 2 MOUNT THE SENSOR (3.5 mm) #6 x 1 1/4" (3.5 mm x 32 mm) • [A] = Wall mounting holes. • [B] = Corner mounting holes. • The rear tamper plate MUST be mounted to a stud, solid wood, or with a robust wall anchor.
  • Page 3 WALK TEST THE SENSOR AND ADJUST AS NEEDED Walk Test Reset 30 sec SENSITIVITY < 4’ (1.2m) 1/2 sec. hold 4x Power Walk Test Normal Trouble Anti-Mask Slow Fast DT8050A-SN_step6-ii Blink Alarm Alarm Blink Fast Yellow Microwave Microwave Blink 1. Apply power to the sensor. Initialization is complete when the LED Green ON PIR ON PIR...
  • Page 4 PROGRAM THE SENSOR TROUBLESHOOTING This sensor is a serial number device. Refer to the control TROUBLE* panel’s manual for instructions on registering devices and NORMAL Mask Self-Test Failure programming. Red LED Flashing ® For all V-Plex panels, program the sensor Zone Type as INT Yellow LED Flashing FOLLOWER 04 and the INPUT TYPE as “06”...
  • Page 5 APPROVAL LISTINGS • FCC part 15, Class B verified • IC ICES-003, Class B verified • UL 639 • ULC S306-03 • SIA-PIR-01 Passive Infrared detector standard features for false alarm immunity. Product must be tested at least once each year. All wiring must be in accordance with: the National Electrical Code (ANSI/NFPA70);...
  • Page 6 For the latest U.S. warranty information, please go to: www.honeywell.com/security/hsc/resources/wa or Please contact your local authorized Honeywell representative for product warranty information. © 2017 Honeywell International Inc. Honeywell, V-Plex and DUAL TEC are registered trademarks of Honeywell International Inc. 2 Corporate Center Drive, Suite 100 All other trademarks are the properties of their respective owners.
