Main power switch
1
Programme selector
2
Auto wash
3
Heavy wash
4
Eco wash
5
Quick wash
6
Rinse
7
Safety instructions ..................................................
Before washing for the first time .............................
Loading the dishwasher .........................................
Using the dishwasher .............................................
Settings ...................................................................
Care and cleaning ..................................................
Troubleshooting ......................................................
Installation ..............................................................
Service ....................................................................
Information for test institute ....................................
Technical information .............................................
EN
Operating Instructions
Dishwasher
GV30.1
Time Saver
8
Extra Dry
9
Half Load
10
Delayed Start
11
Display
12
Rinse aid indicator
13
Salt indicator
14
2
3
4
5
8
9
11
14
15
15
16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gorenje GV30.1
Summary of Contents for Gorenje GV30.1
-

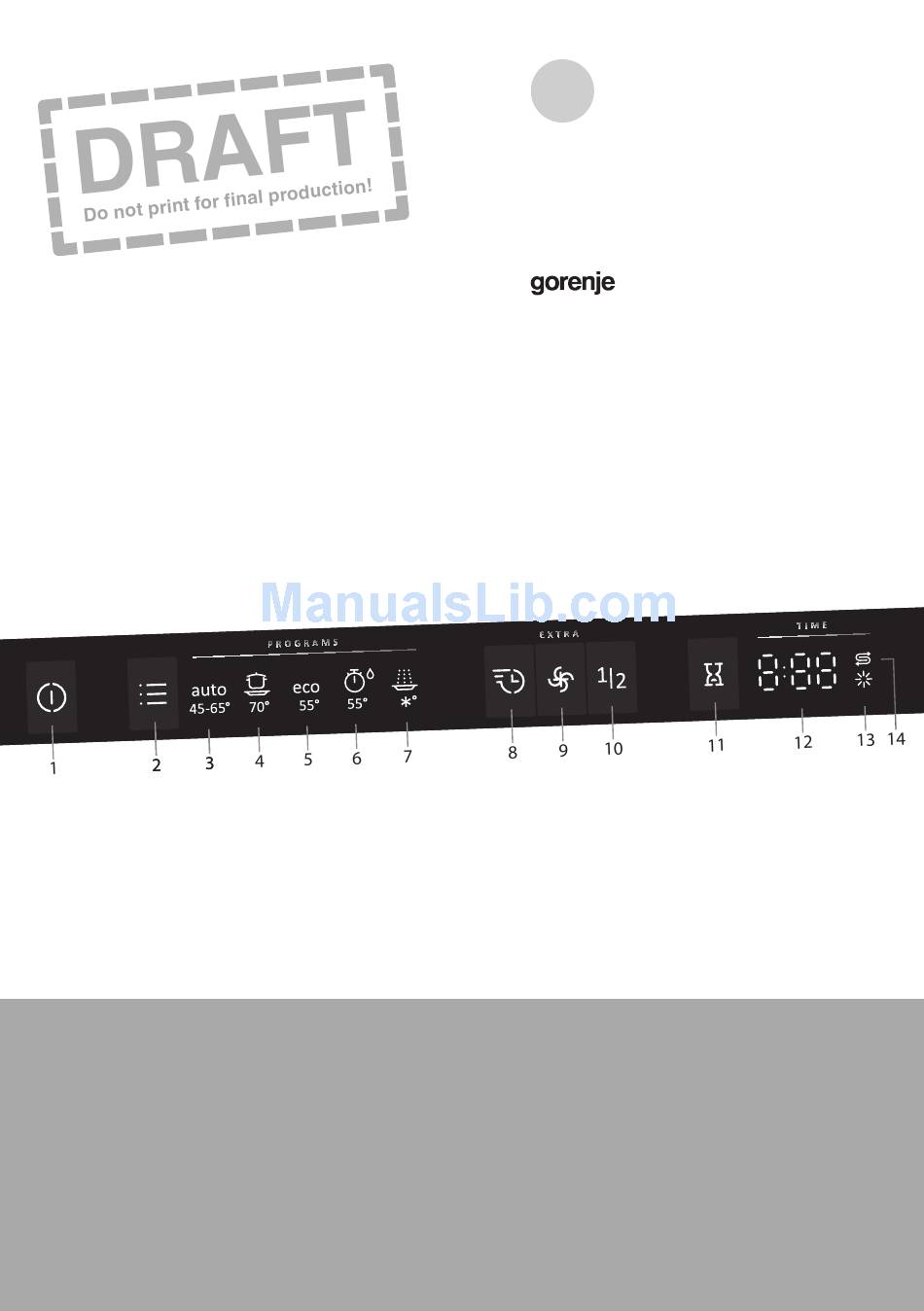

Page 1: Table Of Contents
Operating Instructions Dishwasher GV30.1 Main power switch Time Saver Programme selector Extra Dry Auto wash Half Load Heavy wash Delayed Start Eco wash Display Quick wash Rinse aid indicator Rinse Salt indicator Safety instructions ..........Before washing for the first time ...... -
Page 2: Safety Instructions
Safety instructions Winter storage/transport General Store the dishwasher where the temperature remains Read the operating instructions and keep them above freezing. in a safe place! Avoid long transport distances in very cold weather. Never use the dishwasher for any purpose other than that specified in these operating Transport the dishwasher upright or laying on its back. -
Page 3: Before Washing For The First Time
Before washing for the first time The water softener Refill salt indicator In order to achieve good dishwashing results, the When the salt needs topping up, the above symbol lights dishwasher needs soft water (water with low mineral on the display. content). -
Page 4: Loading The Dishwasher
Loading the dishwasher shelf and knives are placed in the knife stand on the right Economic dishwashing (if fitted). Do not start the dishwasher until it is fully loaded to save energy. Do not rinse under running water. Simply scrape off large food particles before loading the dishwasher. -
Page 5: Using The Dishwasher
Using the dishwasher Add detergent Lower basket Place plates, side plates, serving dishes and pots in the Prewash detergent compartment lower basket. Main wash detergent compartment Detergent is added according to water hardness. Follow the instructions on the detergent packaging. This dishwasher is fitted with a water softener, so use detergent and rinse aid doses suitable for soft water. -
Page 6: Selecting Options
Choose programme Half Load Press the Programme selector one or more times until the This option adapts the dishwashing programme to a desired programme symbol is activated. half-filled dishwasher, using less energy and water. Delayed Start Auto wash When you select Delayed Start the dishwasher will start The dishwasher can measure how dirty the dishes are and 1-24 hours after you close the door. - Page 7 Programme chart...
-
Page 8: Settings
Settings Open the settings menu: Turn off the machine. Press and hold the main power switch until the display lights up. Within 10 seconds: - press the Programme selector and the option button for Time Saver. The display shows the settings menu (current setting and its currently set value). (Exit the menu by browsing through the menu or pressing the main power switch.) Navigate the settings menu: Tryck för att bläddra mellan... -
Page 9: Care And Cleaning
Care and cleaning Cut the power to the dishwasher by pulling out the plug Coarse filter from the wall socket! The coarse filter traps larger food particles, which cannot Remove the coarse filter and the fine filter. get past the drainage pump. Empty the coarse filter as necessary. - Page 10 Door citric acid in the detergent compartment (with no dishes in the machine). When cleaning the edge around the door, use only a slightly damp cloth (with a little cleaner if necessary). Front panel Limescale deposits Keep the buttons clean and free from grease. Wipe them clean with a dry or slightly damp cloth.
-
Page 11: Troubleshooting
Troubleshooting Type of fault on the display Action Overfilling 1 Clear the drainage pump. See the section Care and cleaning. If the problem persists, call the service division. Water Outlet Fault See “Water remains in the dishwasher” in the table “Problem” below. If the problem persists, call the service division. - Page 12 Problem Possible causes Action Spots or films on the dishes. The water softener is leaking salt. Check that the salt compartment lid is properly tightened. Otherwise call the service division. Incorrect water softener setting. See the section Settings. Incorrect rinse aid dosage setting. See the sections Before washing for the first time and Settings.
- Page 13 Problem Possible causes Action Water remains in the dishwasher. Blocked drainage hose. Loosen the drainage hose where it connects to the sink unit's water trap. Check that no debris has fastened. Is the cone-shaped part of the pipe cut to an inner diameter of at least 14 mm? Kink in drainage hose.
-
Page 14: Installation
Installation It is important that you read through and follow the the machine from being emptied of water during the wash instructions and directions below. Conduct installation and cycle. connection in accordance with the separate installation The drainage hose can also be connected to a connection instructions. -
Page 15: Service
Service Information for test institute Read chapter Troubleshooting before contacting the service Beställ information för testinstitut via e-post department. Note down the details on the rating plate dishwasher.testinfo@appliance-development.com. positioned on the right inside the dishwasher. Note down Vid förfrågan ange uppgifterna på typskylten som sitter på the item number (1) and serial number (2). -
Page 16: Technical Information
Technical information Information on energy labelling Information sheet, in compliance with Commission Delegated Regulation (EU) No. 1059/2010 Gorenje Model designation: GV30.1 Number of standard place settings: Energy efficiency class: Annual energy consumption(AE ??? kWh per year Energy consumption of the standard cleaning cycle(E...
