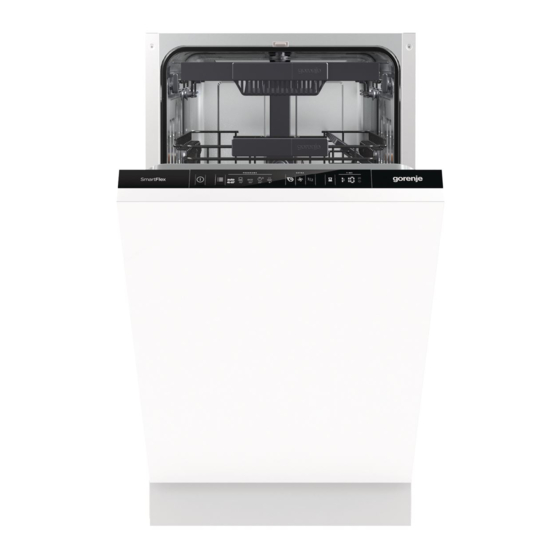

Gorenje GV55110UK Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Gorenje Manuals
  4. Dishwasher
  5. GV55110UK
  6. Operating instructions manual

Gorenje GV55110UK Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Main power switch
1
Programme selector
2
Auto wash
3
Intensive wash
4
Eco wash
5
Quick wash
6
Rinse
7
Safety instructions ................................................... 2
Before washing for the first time ............................ 3
Loading the dishwasher .......................................... 4
Using the dishwasher ............................................. 5
Settings..................................................................... 8
Care and cleaning ................................................. 10
Troubleshooting ..................................................... 12
Installation .............................................................. 15
Service .................................................................... 16
Information for test institute .................................. 17
Technical information ............................................ 20
EN
Operating Instructions
Dishwasher
GV55110UK
SpeedWash
8
Extra dry
9
Half load
10
Delayed start
11
Display
12
Rinse aid indicator
13
Salt indicator
14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV55110UK and is the answer not in the manual?

Questions and answers

Related Manuals for Gorenje GV55110UK

Summary of Contents for Gorenje GV55110UK

  • Page 1: Table Of Contents

    Operating Instructions Dishwasher GV55110UK Main power switch SpeedWash Programme selector Extra dry Auto wash Half load Intensive wash Delayed start Eco wash Display Quick wash Rinse aid indicator Rinse Salt indicator Safety instructions ........... 2 Before washing for the first time ......3 Loading the dishwasher ..........

  • Page 2: Safety Instructions

    Safety instructions Winter storage/transport General Store the dishwasher where the temperature remains Read the operating instructions and keep them • • above freezing. in a safe place! Avoid long transport distances in very cold weather. • Never use the dishwasher for any purpose other •...

  • Page 3: Before Washing For The First Time

    Before washing for the first time The water softener Refill salt indicator In order to achieve good dishwashing results, the When the salt needs topping up, the above symbol lights dishwasher needs soft water (water with low mineral on the display. content).

  • Page 4: Loading The Dishwasher

    Loading the dishwasher of pots and pans. Make sure the cup shelf is on the correct Economic dishwashing position when folded up as show in the picture. Do not start the dishwasher until it is fully loaded to save • energy.

  • Page 5: Using The Dishwasher

    Using the dishwasher Add detergent The main power switch Add the detergent to the detergent compartment. Close Press and hold the main power switch until the display lights the lid and press until it locks in place. If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber.
  • Page 6 If the dishwasher is switched off using the Extra dry main power switch or during a power cut A higher temperature in the final rinse improves the drying If the dishwashing programme was not finished, the results if you activate this option. Energy consumption is interrupted programme continues when power is restored.
  • Page 7 Programme chart PROGRAMS Detergent, EXTRA Prewashes Main wash Number of Final rinse Consumption values compartment rinses - Program - Options Dishwashing Energy Water cons. 1 / 2 time (approx. (ml) (approx. kWh) hrs:min) SpeedWash Auto wash 3 / 22 65 °C 2:30 0.9-1.3 9.5~13...

  • Page 8: Settings

    Settings Open the settings menu: 1. First, open the door. Turn off the machine. Press and hold the main power switch until the display lights 2. Within 10 seconds: - press the Programme selector and the option button for SpeedWash. 3.
  • Page 9 Settings Options 2. TAB 3:00 (Off) You can activate this setting when using 3-in-1/ (3-in-1/all-in-one detergent) 3:01 (On) All-in-one detergent. The dishwashing programmes automatically adapt to provide the best possible dishwashing and drying results every time. If this setting is activated there is no need to add rinse aid since this option disables rinse aid dispensing.

  • Page 10: Care And Cleaning

    Care and cleaning Filter System The filter prevents larger remnants of food or other Fine filter. objects from getting inside the pump. The residues may This filter holds soil and food residues in the sump area block the filter, in this case they must be removed. prevents them from being redeposited on the dishes during wash cycle.
  • Page 11 2 Unscrew the spray arm bearings counterclockwise to Spray arms remove the spray arm from the upper basket. Holes and bearings can sometimes become blocked. Remove any debris using a pin or the like. The spray arms also have holes underneath. Door When cleaning the edge around the door, use only a slightly To facilitate cleaning you can remove the spray arms.

  • Page 12: Troubleshooting

    Troubleshooting Type of fault on the display Action Water Inlet Fault Check that the water tap is on. Check that the outer filter on the inlet hose is not blocked. If the problem persists, call the service department. Not reaching required Call the service department.
  • Page 13 Problem Possible causes Action The dishes are not clean. The spray arms do not rotate. Remove the arms and clean them. Check that the dishes are not blocking the spray arms. Old detergent. Detergent is a perishable Avoid large packages. product.
  • Page 14 Problem Possible causes Action Rattling sound when dishwashing. The dishes are not correctly placed or Check that the dishes are placed the spray arms are not rotating. securely. Spin the spray arms to make sure they can rotate. Water remains in the dishwasher. Blocked drainage hose.

  • Page 15: Installation

    Installation Setup It is important that you read through and follow the instructions and directions below. Conduct installation and The recess and connection dimensions are included in • connection in accordance with the separate installation the separate installation instructions. Check that all instructions.

  • Page 16: Service

    Service Read the chapter Troubleshooting before contacting the service department. Provide the details on the serial number When the drainage hose is routed to a connection plate in all contact. Include the article number (1) and the nipple on the sink unit's water trap (see illustration 1), serial number (2).
  • Page 17 Loading the baskets according to En50242: 1.Upper basket: Cups Saucers Glasses Small serving bowl Medium serving bowl Soup spoons Dessert spoons Large serving bowl 2 Forks Serving spoons Knives Serving forks Teaspoons Dessert dishes Gravy ladles Dinner plates Soup plates Oval platter...

  • Page 18: Information For Test Institute

    Information for test institute Information on energy labelling Information sheet, in compliance with Commission Delegated Regulation (EU) No. 1059/2010 Gorenje Model designation: GV55110 UK Number of standard place settings: Energy efficiency class: 211 kWh per year Annual energy consumption(AE Energy consumption of the standard cleaning cycle(E ):0.74 kWh...
