PEPWAVE Surf SOHO Router
5

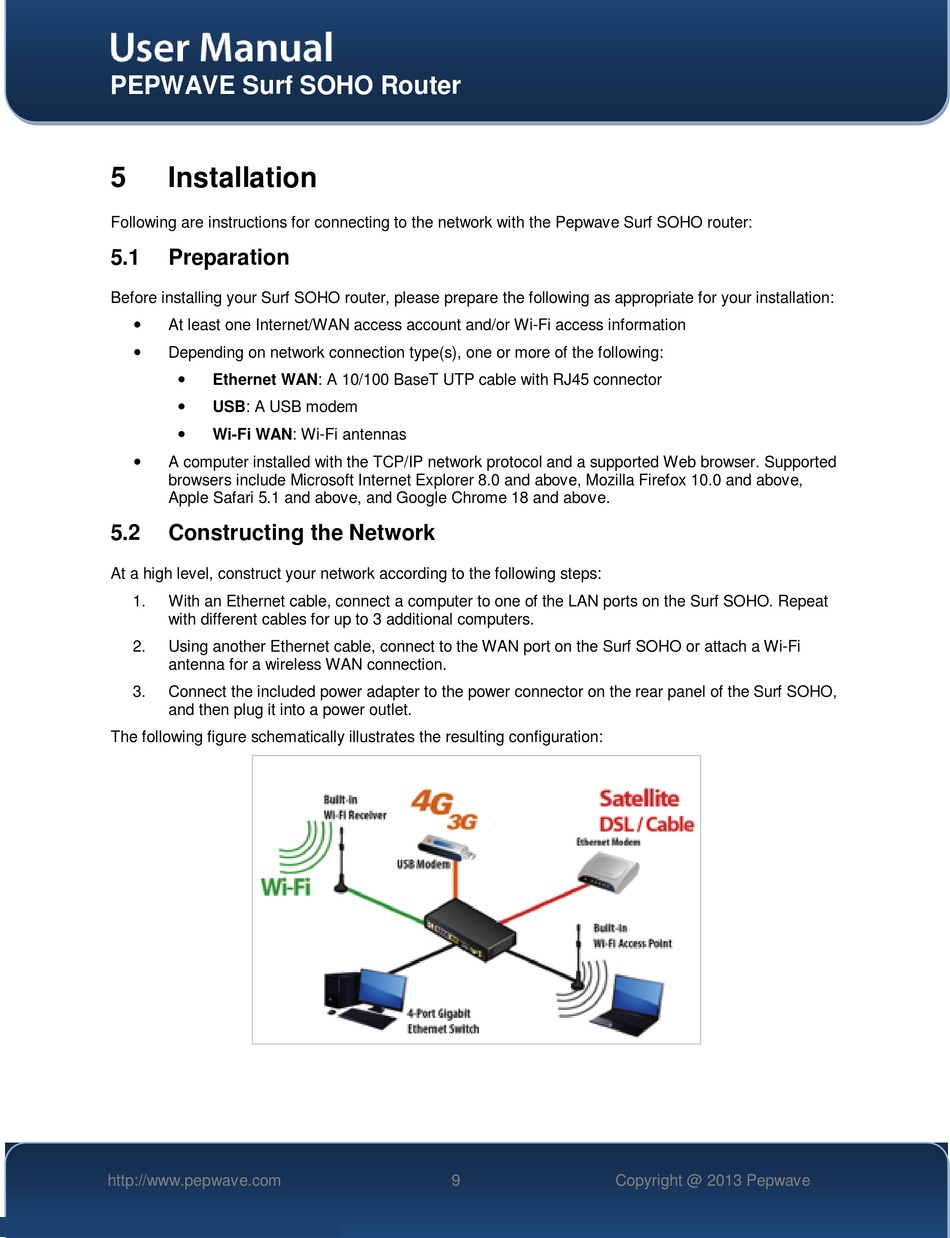

Installation

Following are instructions for connecting to the network with the Pepwave Surf SOHO router:
5.1

Preparation

Before installing your Surf SOHO router, please prepare the following as appropriate for your installation:

At least one Internet/WAN access account and/or Wi-Fi access information

Depending on network connection type(s), one or more of the following:

Ethernet WAN: A 10/100 BaseT UTP cable with RJ45 connector

USB: A USB modem

Wi-Fi WAN: Wi-Fi antennas

A computer installed with the TCP/IP network protocol and a supported Web browser. Supported
browsers include Microsoft Internet Explorer 8.0 and above, Mozilla Firefox 10.0 and above,
Apple Safari 5.1 and above, and Google Chrome 18 and above.
5.2

Constructing the Network

At a high level, construct your network according to the following steps:
1. With an Ethernet cable, connect a computer to one of the LAN ports on the Surf SOHO. Repeat
with different cables for up to 3 additional computers.
2. Using another Ethernet cable, connect to the WAN port on the Surf SOHO or attach a Wi-Fi
antenna for a wireless WAN connection.
3. Connect the included power adapter to the power connector on the rear panel of the Surf SOHO,
and then plug it into a power outlet.
The following figure schematically illustrates the resulting configuration:
