Operating Instructions
Air Top 2000 ST
Introduction
Dear Webasto Customer,

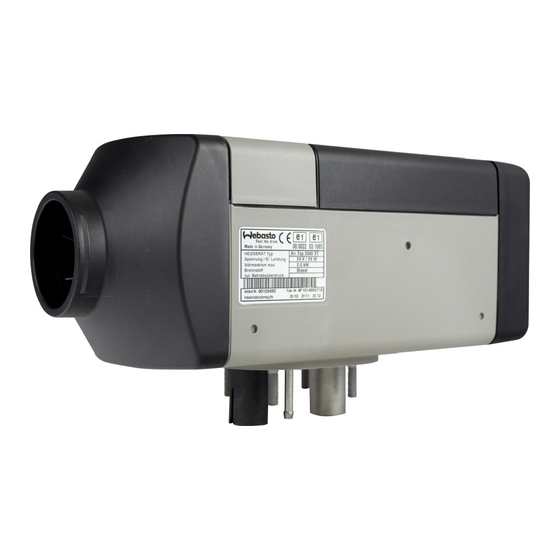

Thank you for choosing the Webasto Air Top 2000 ST air heater.
The Air Top 2000 ST heater is used
– to heat cabins, boats, trucks, minibuses, vans and motorhomes and
– to defrost vehicle windows.
We presume that the principle and mode of operation of your new heater has
been explained to your complete satisfaction by the workshop/service centre
which installed the heater. In these operating instructions we would like to
once again provide you with an overview of the safe use of the Air Top 2000
ST heater.
Repair or maintenance work not described here may only be carried out by an
authorised Webasto dealer.
Servicing and safety instructions
1. The Air Top 2000 ST heater unit has been type- tested and approved in accordance with
EC Directives 72/245/EEC (EMC), 2001/56/EC (heater) with the following permit num-
bers:
NOTE:
The specifications of this Directive are binding in the scope of the Basic Directive
EEC/70/156 and/or EC/2007/46 (for new vehicle models from 29/04/2009) and
should also be observed in countries in which no special regulations exist.
2. The year in which the heater was used for the first time must be permanently displayed
on the factory plate by deleting the inapplicable years from the plate.
3. The heaters are not designed for heating hazardous substance transport com-
partments.
To install the Air Top 2000 ST D heater unit in hazchem vehicles, the requirements of the
Directives EC/2001/56 and ECE R122 must be met.
4. Claims can only be made if it can be verified that the claimant has complied with the serv-
icing and safety instructions.
5. The heater must be switched off at filling stations and tank farms as a result of
the risk of explosion.
6. The heater may not be operated in enclosed spaces (such as garages) as a result
of the risk of poisoning and asphyxiation, even if a timer or Telestart remote is
used.
7. The heater must be checked by an expert at the latest at the start of the cold weather
period.
e1 03 1085
e1 00 0022
www.butlertechnik.com
Advertisement
Table of Contents
Related Manuals for Webasto Air Top 2000 ST
Summary of Contents for Webasto Air Top 2000 ST
-
Page 1: Operating Instructions
Repair or maintenance work not described here may only be carried out by an authorised Webasto dealer. Servicing and safety instructions 1. The Air Top 2000 ST heater unit has been type- tested and approved in accordance with EC Directives 72/245/EEC (EMC), 2001/56/EC (heater) with the following permit num- bers:... - Page 2 If exhaust lines pass through areas used by personnel, they must also be replaced by genuine spare parts after ten years. 11. The fuel specified by the vehicle manufacturer is suitable for use in the Air Top 2000 ST B (petrol EN228).
-
Page 3: Ventilation Option
NOTE for ADR mode only: The Air Top 2000 ST heater is switched on and off by hand using a switch. The use of automatic control systems is prohibited. -
Page 4: General Information
Error code On heaters that output an error code (Air Top 2000 ST), a number, the error code, may appear in the display. In this case you should visit a Webasto service outlet. -
Page 5: Switch Off
Visit www.butlertechnik.com for more technical information and downloads. Switch on Manual: Press the button (continuous heating mode) Automatic: By programming the start time Switch off Manual: Press the button again Automatic: By programming the operating period When heater unit is running: By setting the remaining time Set time/date Press the button for more than two seconds - the time flashes -... -
Page 6: Actions In Event Of Faults
If an error occurs, first check the fuse and plug connections to ensure that they are in proper condition and connected correctly. If the actions described below do not rectify the error, have the heater checked by Webasto- trained personnel. -
Page 7: Error Code Output On Combination Timer Or Control Element
Visit www.butlertechnik.com for more technical information and downloads. Error code output on combination timer or control element If the system is fitted with a combination timer, when an error occurs an error code is output on the timer's display until the heater has been rectified. The error code is output if the heater is fitted with a control element after an error has oc- curred by the switch-on indicator/error code indicator flashing. - Page 8 Visit www.butlertechnik.com for more technical information and downloads. Webasto AG Postfach 80 D - 82131 Stockdorf Deutschland National: Hotline: 01805 707 400 (€ 0,14 aus dem deutschen Festnetz) Hotmail: kundencenter@webasto.de http://www.webasto.de International: http://www.webasto.com www.butlertechnik.com...
