General Notes

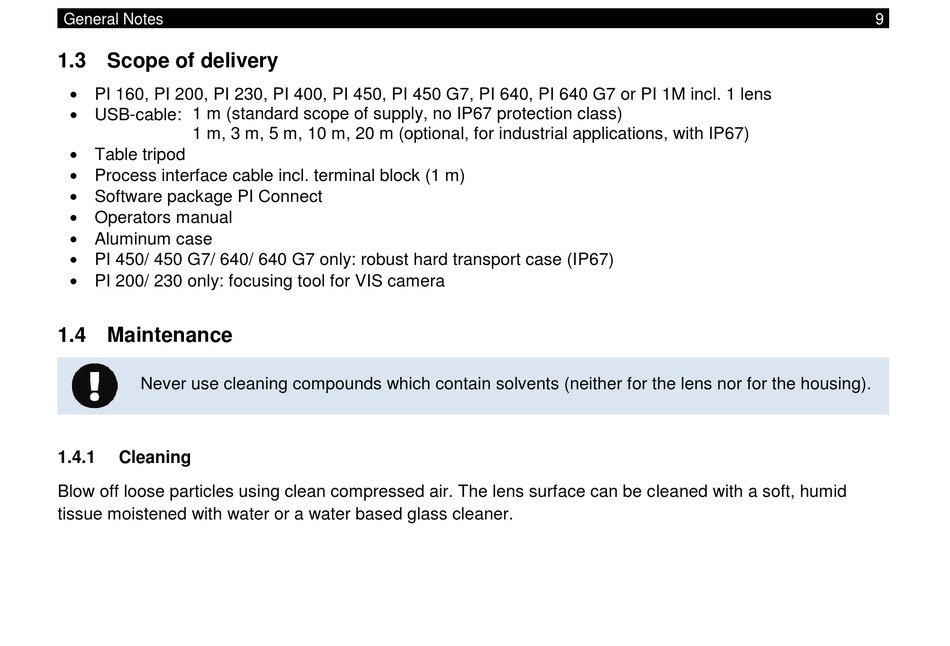

1.3 Scope of delivery

 PI 160, PI 200, PI 230, PI 400, PI 450, PI 450 G7, PI 640, PI 640 G7 or PI 1M incl. 1 lens
 USB-cable: 1 m (standard scope of supply, no IP67 protection class)
1 m, 3 m, 5 m, 10 m, 20 m (optional, for industrial applications, with IP67)
 Table tripod
 Process interface cable incl. terminal block (1 m)
 Software package PI Connect
 Operators manual
 Aluminum case
 PI 450/ 450 G7/ 640/ 640 G7 only: robust hard transport case (IP67)
 PI 200/ 230 only: focusing tool for VIS camera

1.4 Maintenance

Never use cleaning compounds which contain solvents (neither for the lens nor for the housing).
1.4.1

Cleaning

Blow off loose particles using clean compressed air. The lens surface can be cleaned with a soft, humid
tissue moistened with water or a water based glass cleaner.
