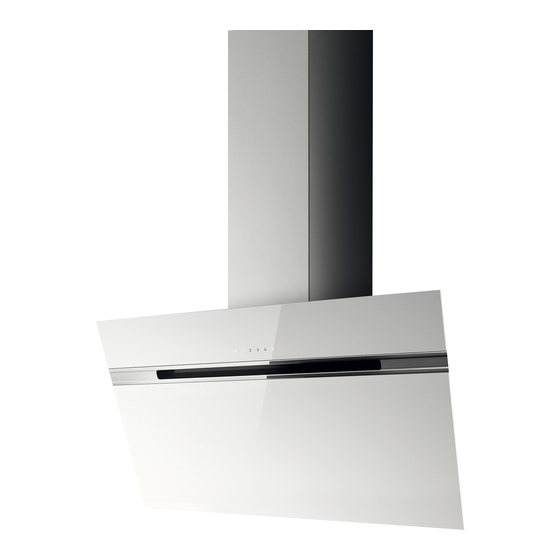

Philco ROMA 90 User Manual
  1. Manuals
  2. Brands
  3. Philco Manuals
  4. Ventilation Hood
  5. ROMA 90
  6. User manual

Philco ROMA 90 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

RANGE HOOD

USER'S MANUAL
ROMA 90

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROMA 90 and is the answer not in the manual?

Questions and answers

Related Manuals for Philco ROMA 90

Summary of Contents for Philco ROMA 90

  • Page 1: Range Hood

    RANGE HOOD USER'S MANUAL ROMA 90...
  • Page 2 Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

  • Page 3: Table Of Contents

    Contents PART 1: IMPORTANT SAFETY INSTRUCTIONS ........4 Caution ..........................4 PART 2: DESCRIPTION OF THE APPLIANCE ........7 PART 3: INSTALLATION ................8 Use ...........................8 Electrical connection ......................10 Mounting.........................10 PART 4: OPERATION ................16 PART 5: MAINTENANCE AND CLEANING .........17 Cleaning .........................17 Grease filter........................17 Charcoal filter (filter version only)...................18 Replacing lamps......................18 PART 6: BEFORE YOU CALL THE SERVICE CENTRE .....19...

  • Page 4: Part 1: Important Safety Instructions

    PART 1: IMPORTANT SAFETY INSTRUCTIONS Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use. The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use.
  • Page 5 fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite. CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.
  • Page 6 This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

  • Page 7: Part 2: Description Of The Appliance

    PART 2: DESCRIPTION OF THE APPLIANCE 1. Control panel 2. Grease filter 3. Halogen lamp 4. Vapour catcher 5. Telescopic chimney...

  • Page 8: Part 3: Installation

    PART 3: INSTALLATION The hood is designed to be used either for exhausting or filter version. Ducting version In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood. Attention! The exhausting pipe is not supplied and must be purchased apart.

  • Page 9: Filter Version

    Filter version The aspirated air will be degreased and deodorised before being fed back into the room. In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

  • Page 10: Electrical Connection

    Electrical connection The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

  • Page 16: Part 4: Operation

    PART 4: OPERATION Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

  • Page 17: Part 5: Maintenance And Cleaning

    PART 5: MAINTENANCE AND CLEANING ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

  • Page 18: Charcoal Filter (Filter Version Only)

    Charcoal filter (filter version only) It absorbs unpleasant odours caused by cooking. The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four mounths (or when the filter saturation indication system –...

  • Page 19: Part 6: Before You Call The Service Centre

    PART 6: BEFORE YOU CALL THE SERVICE CENTRE If the appliance is not working as it should check the following recommendations for resolving the most common problems. If the problem persists or it is not included in the table below, turn off the appliance and disconnect it from the power socket and contact an authorised service centre.

  • Page 20: Part 7: Technical Specifications

    PART 7: TECHNICAL SPECIFICATIONS Air flow (m³/h) Low speed Noise level (dba) Air flow (m³/h) Medium speed Noise level (dba) Air flow (m³/h) High speed Noise level (dba) Air flow (m³/h) Intensive speed Noise level (dba) Pressure (Pa): 394 Power (W): 199,5 Input Voltage: 220-240V ~ 50/60 Hz Air outlet diameter:15 cm...
