Summary of Contents for apivio IP336PoE

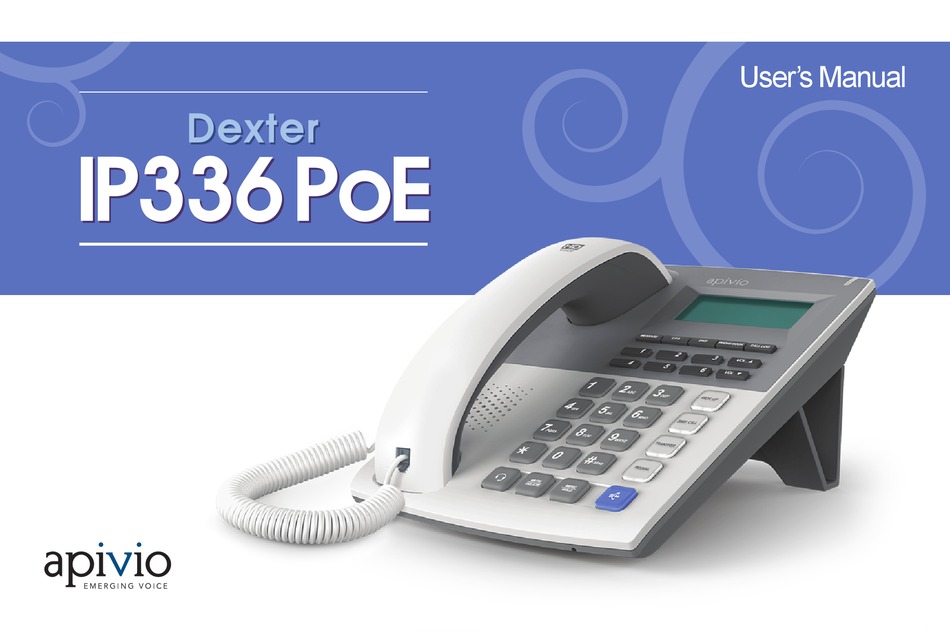

- Page 1 User’s Manual Dexter Dexter I P 336 P oE I P 336 P oE...
-
Page 2: User Precaution
USER PRECAUTION Please read the instruction carefully to protect yourself and others from personal injury or damage to property. To use the phone correctly and safely and prevent an - Any damages due to unauthorized disassembly and accident, it is essential for you to heed the warning and intentional damages by users are not covered by the warranty. -
Page 3: Table Of Contents
CONTENTS COMPONENTS The components must be checked when the package is opened. Please contact the store where ..........User Precaution you purchased it if there are any missing items............Components ............ About Phone IP336 – Phone Receiver with connecting cable .... -
Page 4: About Phone
ABOUT PHONE Front LCD screen Indicate status for network, message and etc. Message Start message menu. Directly forward incoming calls to the typed phone number. Do Not Disturb. Phone book / Search saved phone numbers. / Cancel Cancel settings. Call Log/Enter Search recent call histories. - Page 5 ABOUT PHONE Side Back Headset jack Connect and use headset to call. Microphone jack Connect and use microphone to call. Handset Connect and use handset to call. connecting jack ※Please use 3.5㎜ plug type of headset and microphone jack.
-
Page 6: Product Assembly / Disassembly
Product Assembly / Disassembly Product Assembly Please assemble phone stand on the back side of product as shown the picture below. (Please do not press too hard while inserting the stand. It may damage the product.) Product Disassembly Please follow the steps above with backward order. -
Page 7: Lcd Status
LCD STATUS CASES Case 1 “No Service” PM 10 : 15 03/11/Fri PM 10 : 15 No Service 03/11/Fri In this case, phone does not properly communicate with IP-PBX. - Causes 1) Network connection failure 2) Blocked by firewall(security equipment) port 3) Non registered account information LCD screen Case 2 “Check the account”... - Page 8 Case 5 “Starting” PM 10 : 15 PM 10 : 15 03/11/Fri 03/11/Fri apivio Duplicated Addr Staring… In this case, there is same IP address with other PC In this case, system does not start for more than or phone.
-
Page 9: Installation
INSTALLATION How to install phone according to internet using environment Connecting cables (Back) A. Customers who use directly connected optic fiber LAN. 1. Connect internet line of optic fiber LAN to LAN port. 2. Connect computer line to PC port. 3. - Page 10 INSTALLATION How to install phone according to internet using environment DC 5V Power B. Customers who use ADSL, VDSL or cable modem 1. Connect internet line to LAN ports of modem and Phone computer line ADSL, VDSL, 2. Connect computer line to PC port Cable modem 3.
-
Page 11: Networks Setting
NETWORK SETTING Detail settings according to protocol 1. How to use dynamic IP Enter subnet mask address Subnet mask and press confirm button - Press shortcut keys as shown below, and set dynamic IP. 255.255.255.0 - “Dynamic IP” is set as default value. Enter gateway address and Gateway Message... -
Page 12: Service Setting
NETWORK SETTING SERVICE SETTING Service (VoIP) detail settings 3. How to use PPPoE - Press shortcut keys as shown below, and move to PPPoE setting 1. LCD screen settings Press menu button and after Message message is appeared on the Status Info LCD screen as shown on the right, Function settings... -
Page 13: Setting Via Web
SERVICE SETTING SETTING VIA WEB Phone settings Phone settings Web settings Web settings Enter password to use numeric 1. Check IP to use numeric keys of phone. Password keys and press confirm. Press menu button to swift keyboard mode from number to English upper / lower case. - Page 14 SETTING VIA WEB First page when you access the settings via web Dynamic IP setting DNS server setting Static IP setting NAT setting PPPoE setting...
-
Page 15: Trouble Shooting
TROUBLE SHOOTING Solution for simple symptoms – Following symptoms may occur when the phone is not broken. Symptoms How to solve - Please check hold during call setting on your phone. (Menu + 3 + 2) 1. I cannot use hold mode during call. - Group must be set to use pickup. -
Page 16: Basic Functions
BASIC FUNCTIONS Pick up Hang up Call through Call through Enter phone Memory dial Ringtones Function the receiver the phone handset speaker phone numbers button/Enter Make a Call Call through Handset Call through speaker phone Enter phone Enter phone numbers numbers You can call the Memory... -
Page 17: Answer A Call
BASIC FUNCTIONS Answer a Call Call through handset Call through handset Phone Phone rings rings Tip! Answer another call during an ongoing call : In this case, hold during call function has to be set. After set the function, press [HOLD] button to answer another during another answer the... -
Page 18: Call Log
BASIC FUNCTIONS Setting groups of phone book You can set group where you save phone numbers. Maximum 10 groups can be set. 10. Select group - Edit name : Change the name of group. - Select ringtone : Select each group ringtone. Call log Press [MENU] and [3 –... -
Page 19: Conference Call
BASIC FUNCTIONS Redial Silent You can call to the latest dialed number. Press [SILENT] during an ongoing call to mute your voice. Message Pickup You can send or receive short text message. The function allows you to answer another Please contact to service manager to use the service. ringing phone in the network. -
Page 20: Adjust Volume
BASIC FUNCTIONS Transfer Allow you to transfer a call to another telephone in group. l Method 1 l Transfer after call Enter Inform During phone You can call the other person and about numbers call the call inform about the call which you to transfer will transfer. -
Page 21: Change Ringtone
BASIC FUNCTIONS Call wating Allow you to answer another call during an ongoing call l How to receive l l How to set l During Another Answer the call incoming call another call Change ringtone Allow you to find and change ringtones easily. l How to set l Search for ringtones Auto add area code... -
Page 22: Setting Blf Keys
Setting BLF ( Busy Lamp Field ) Keys * This page is only applicable for IP-335 BLF version. BLF displays call status of saved phone numbers with six LED buttons. BLF keys can be set up either by phone or by managing website. Setting BLF by Phone - Save number : After entering phone numbers, Input BLF... -
Page 23: How To Function Menu
HOW TO SET FUNCTION MENU MENU MENU MENU Test message Ringtones Message lock New message Hold during call Contrast Voice message Connecting sound for external call Auto backlight off Comment Sent message Pickup Language ② Delete all messages Speed dial Auto setting Message box information Auto add area code... -
Page 24: Treatment Before Disposal
TREATMENT BEFORE DISPOSAL Please follow the instructions when you dispose the product. When disposing of the product, please contact the nearest local governments for proper treatment. Please dispose it in the right way that you are informed. Please inform administration office if they provide free recycling service of the phone. -
Page 25: Warranty
WARRANTY The products which are produced and sold from Moimstone Co, Ltd are guaranteed for 12 months from the date you purchased if the products have been used in accordance with those specified in the documentation. 1. 12 months from the date of purchase The products which failed in the production process are free exchanged or repaired from the store you purchased. -
Page 26: Damage Compensation
DAMAGE COMPENSATION Free of charge Free compensation services will be provided for manufacturer’s defects or spontaneous failure within 12 months of warranty. Compensation Types of damage Within warranty After warranty Major repair within 10 days from the purchase Exchange or refund Major repair within 1 months from the purchase Exchange or free repair Damages occurred during shipping or installation... -
Page 27: Product Specification
VoIP protocol Network “LAN(10/100Base–T with Auto MDIX) PC(10/100Base–T with Auto MDIX)” Codec Narrowband vocoders : G711 A/U, G.729 - Product Name : VoIP Phone / IP336PoE - Certification Number : MSH-IP335S - Company Name : Moimstone Co, Ltd / Korea... - Page 28 User’s manuals can be different according to software version of each IP phone and IP-336PoE-E01(20141014) the product specifications can be changed without prior notice.
