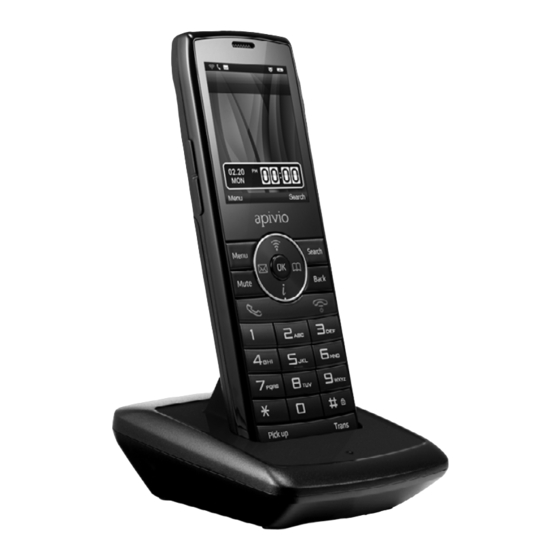

- Page 1 VoIP MWP1100N User Manual...
-
Page 2: User Precautions
User Precautions Please read the instructions carefully to protect yourself and others Precautions when using from personal injury or damage to property. · Please do not touch the phone with wet hands. · Please do not use the phone for other than its intended purpose. Precautions when installing ·... - Page 3 User Precautions Precautions when using battery FCC SAR Compliance Statement · Please don’t use this phone with a battery from another Your wireless phone is a radio transmitter and receiver. manufacturer, as this could damage the device. It is designed and manufactured not to exceed the emission limits ·...
- Page 4 User Precautions Warnings · This device is for indoor use, only in the 5150~5250Mhz frequency range. · This device was tested for typical body-worn operations. · To comply with RF exposure requirements, keep at least 1.5cm (0.5 inches) between the user's body and the headset, including the antenna.
-
Page 5: Table Of Contents
Contents User Precautions ....02 Extra Functions Useful Functions ....15 Display ......17 Basic Instructions Setting ......18 Components ..... 06 System info ....... 19 HD Voice Features ..... 06 About the Phone ....07 LCD Status ....... 08 Supplements Insert the Battery .... -
Page 6: Components
Components HD Voice Features Please check to ensure the components pictured below ·This device uses high-end speakers and receivers to are in the box after purchase. Please contact the retail support HD Voice capability. store where you purchased the device, if there are any ·This device deploys HD Voice clarity similar to an HD TV. -
Page 7: About The Phone
About the Phone Volume : Adjust the sound volume. Menu : Access the phone menu. Search : Search your registered Wi-Fi networks. Wireless line : Search Wi-Fi networks. Phone book : Access the phone book. System info : Access system information. Message : SMS (Texting is not supported at this time). -
Page 8: Lcd Status
LCD Status Indicates Wi-Fi signal strength. Strong signal Weak signal Status Icon Indicates the phone call function is unavailable. Indicates phone status. Please refer to the icon legend on the right, for Indicates the phone call function is available. details. Indicates the alarm has been set. -
Page 9: Insert The Battery
Insert the battery Install the adaptor Please use the included battery. If you need to exchange or purchase another battery, please contact an authorized Connect the adaptor service centre. to the rear connector. Push (1) Push down on the battery cover, as shown at left, and Connect the charger plug into a power outlet. -
Page 10: Wi-Fi Connection
Wi-Fi Connection Press and hold the [End] Select the desired You will be connected button for 3 seconds to network, Press [OK], and can begin using power on the phone. and enter applicable your device. password. Press to search for available Wi-Fi connections... -
Page 11: Make A Call / Hang Up
Make a Call / Hang Up Input the call Press the phone To set the answer type: [Menu] ¨ 2.Call Manage ¨ number number . 2.Answer type. Using phone Select the number in history history. Answer a call with Out of Office function Using Search and select If the Out of Office function is activated, the phone will... -
Page 12: Transfer
Transfer Adjust Volume You can transfer a call to another number or to another In standby mode, press [Volume] and click the phone in the same group. button. You can adjust Volume, Ring, Call, Power On/Off, Alarm. Adjust the volume (8 steps) by pressing [Volume] or On the call Input the New call... -
Page 13: Cfa
Phone Book · Manage groups at ¨ 3.Manage groups. · In the phone book list, press the [Menu] button to Press the [Menu] button to Add, Edit, Delete groups and delete or edit entries. members. Register up to 30 per Group. ·... -
Page 14: Message
Message Send and receive messages with your phone. Please inquire with your service provider if this function is available in your area. Write the message Spam Message ¨ 1.Write ¨ ¨ Input the number ¨ ¨ Select ¨ 3.Spam Message save mode ¨... -
Page 15: Useful Functions
Useful Functions Out of Office Alarm [Menu] ¨ 4.Useful Functions ¨ 1.Out of Office Set and clear multiple alarm functions. • How to set : [Menu] ¨ 4.Useful Functions ¨ 3.Alarm • Auto attendant : Set and clear the Out of Office auto answer while away from your desk/work. - Page 16 Useful Functions Calculator Web Browser Use the Direction buttons or [OK] button to cycle To connect to an Access Point (AP) requiring Web through the on screen options. Press the [Back] button Authentication: to delete one character. Press the [Menu] button to In your Web browser, move the cursor with the Navigation delete all.
-
Page 17: Display
Display Wallpaper Brightness Select from 10 kinds of wallpaper for on-screen display. Adjust display brightness(10 levels). • How to set : [Menu] ¨ 6.Display ¨ 1.Wallpaper ¨ • How to set : [Menu] ¨ 6. Display ¨ 3. Brightness ¨ Select the wallpaper ¨... -
Page 18: Setting
Display Setting Menu style Wifi setting Select a menu style (Rotate or Grid) To search for available WiFi connections. • How to set : [Menu] ¨ 6.Display ¨ 5.Menu style ¨ • How to set : [Menu] ¨ 7.Setting ¨ 1.Wifi setting ¨ 2.Search ¨... -
Page 19: System Info
System info User Default Wi-fi info To delete all the user setting values including phone Display the WiFi AP connection information. number. • How to set : [Menu] ¨ 7.Setting ¨ 3.User Default ¨ Input About phone user password(default password ‘0000’) ¨ Display the current H/W version and S/W version information. -
Page 20: Troubleshooting
Trouble shooting Solutions to common issues (may occur even when the phone is functioning normally) Symptoms Solutions The battery must be sufficiently charged for the phone to operate. Please charge the phone on the cradle, and 1. The phone does not work. ensure it is positioned correctly and securely. -
Page 21: Treatment Before Disposal
Warranty If your product does not work properly because of a defect in materials or workmanship, Apivio Systems Inc. (referred to as “the warrantor”) will, for the length of the period indicated on the chart on p. 20, which starts with the date of original purchase (“12 month Warranty... -
Page 22: Damage Compensation
Damage Compensation Free of charge Compensation services are free of charge for manufacturer’s defects or spontaneous failure within the 12 month warranty period. Compensation Types of damage Within warranty After warranty Exchange or refund Major repair within 10 days from the purchase Exchange or free repair Major repair within 1 month from the purchase Exchange... -
Page 23: Specifications
Specifications Section Description IEEE 802.11 a/b/g/n (CSMA/CA) RF Protocol RF Channel / 2.400~2.4835GHz / 13 Channel Frequency 5.15~5.25, 5.25~5.35, 5.47~5.65, 5.725~5.825GHz / 19 Channel Talk Time : Up to 4 Hours Standby Time : Up to 78 Hours Battery Charging Time : Under 6 Hours Input AC 100~200V, 50~60Hz, 0.5A Output... - Page 24 MWP-1100NAP-01(20141024) ·Usual manual can be changed as IP Phone software version without any notice.
