Addendum for Dap4 User Manual – gPod Model
The gPod model is specifically suited for agricultural applications. It has additional features of
Lighting control, CO
2
explained in this document.
1) Two additional sensors can be installed.
a) CO sensor: Carel (DPWL417000) 4-20mA. With a 24VDC power supply.
2
b) Light sensor: 24VAC EM photocell sensor (EM-24A2)

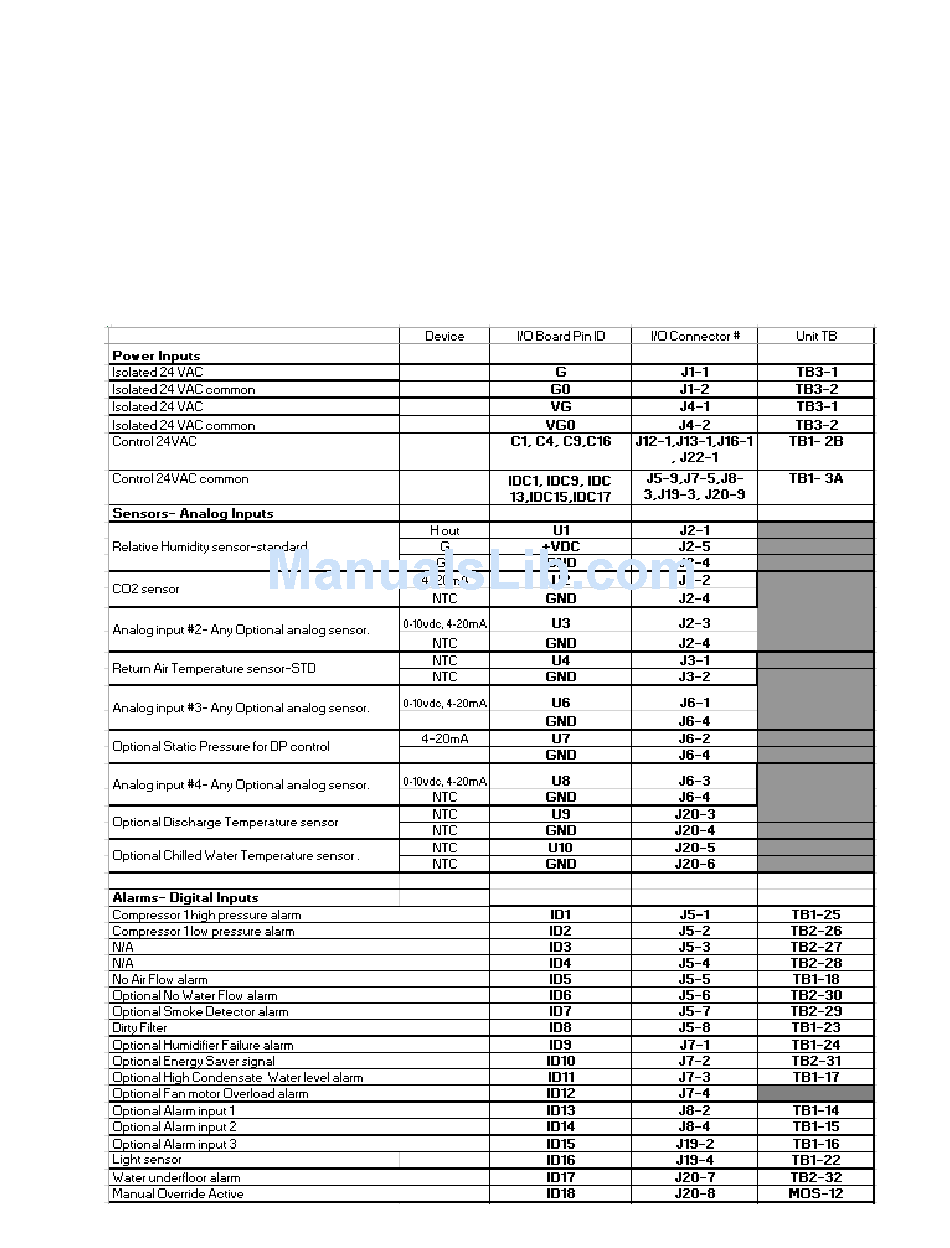

2) Dap4 I/O connections for gPod system
105 • dap4 User Manual
level control, and Night time temperature and humidity offsets which are
