Summary of Contents for Cata ALPHA6

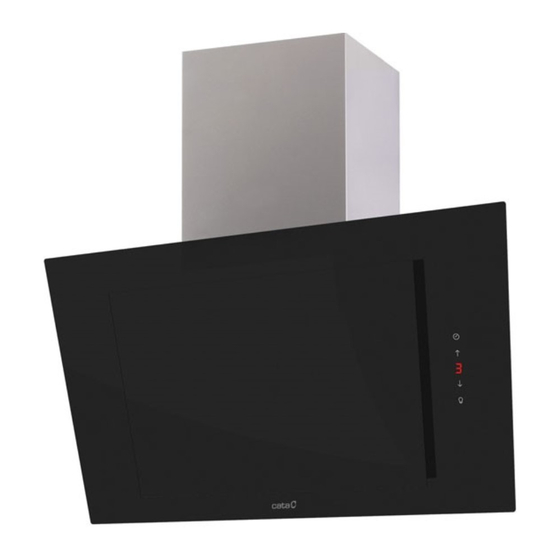

- Page 1 ALPHA6/ 7/ 9/BK/ WHK AGB60/70/90...
- Page 2 [01] x 1 [02] x 1 [03] x 1 [04] x 2 [06] x 2 [05] x 1 [07] x 1...
- Page 3 [08] x 1 [09] x 1 [10] x 5 1 : 1 [11] x 5 (3.9 x 32mm) [12] x 8 (3.4 x 8mm)
- Page 4 ALPHA6/7/9/BK/WHK AGB60/70/90 Cooker Hood Installation...
-
Page 5: Table Of Contents
Let's get started... started... Getting Before you start Safety more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity Appendix Installation... -
Page 6: Before You Start
Getting Started... Before you start Safety... - Page 7 Before you start Before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. Please keep this instruction booklet for future reference and pass it on to any future owners.
-
Page 8: Tools Required
Before you start Tools required Ø6mm Accessories not supplied Extraction Recirculation Ø125mm or Ø150mm 02859396) VENT PACK 2 (UK & IE) SELF ADHESIVE ALUMINIUM TAPE CARBON FILTER ORDERING HOTLINE 0844 800 1128 (UK) 01 4475261 (IE) -
Page 9: Safety
Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. • This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions. - Page 10 Safety We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully. A steam cleaner is not to be used. The appliance is not intended to be operated by means of external timer or separated remote-control system.
-
Page 11: In More Detail
more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity... -
Page 12: Product Functions
Product Functions Product functions This appliance extracts the air of the kitchen to remove the odours and keep an optimum level of the air quality inside the room, it also allows you to illuminate the cooking area. Operation Operation • Switch on the appliance at the switched fused connection unit. The appliance is ready for operation functions. -
Page 13: Care And Maintenance
Care and maintenance Care and maintenance Warning: always switch off the electricity supply before carrying out maintenance work on the hood. In FUSE the event of a fault, contact customer services. Bulb replacement FUSE 10’ Note: Please follow Active charcoal filter replacement steps on next page (p13), before attempting to remove the bulb The Bulb may be hot, leave it 10 minutes before replacement. -
Page 14: Care And Maintenance
Care and maintenance Active charcoal filter replacement: 1 X ACTIVE CHARCOAL FILTER. MODEL NUMBER_02859396... -
Page 15: Care And Maintenance
Care and maintenance Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, FUSE contact customer services. Metal filter replacement: Exterior cleaning: use non-corrosive, liquid detergent and avoid the use of abrasive cleaning products. 1 MONTH MAX.65˚C Aluminium filters: to avoid fires, clean thoroughly once a month... -
Page 16: Troubleshooting
Troubleshooting Troubleshooting Fault Cause Solution Excessive The Appliance is not hung Take down the appliance Vibration properly on the brackets. and check it is properly fixed. The fan blade is damaged. Switch off the appliance. Repair to be carried out by The fan motor is not fixed qualified service personnel tightly. -
Page 17: Recycling And Disposal
Recycling and disposal Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. -
Page 18: Technical And Legal Information
Technical and legal information All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. Warning: THIS APPLIANCE MUST NOT BE EARTHED. - Page 19 Technical and legal information Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. For your own safety a qualified electrician or contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation.
-
Page 20: Guarantee
Guarantee Manufacturer's Guarantee This appliance is covered by a full manufacturer’s 24 month parts and labour guarantee and covers all parts and labour costs associated with the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts. -
Page 21: Customer Service
Guarantee Exclusions to the guarantee (continued) Claims arising from non-domestic use or commercial environment. Any gas appliance not fitted by a gas safe qualified installer. If no fault is found then GAA reserves the right to charge for the call out at the going rate of £55.00 plus VAT. -
Page 22: Ce Declaration Of Conformity
CE Declaration of conformity CE Declaration of conformity MANUFACTURER: CATA ADRESS: We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law. MACHINE APPLICATION:... -
Page 23: Appendix
Appendix... Installation... - Page 24 Installation ACTIVE CHARCOAL FILTER (02859396) VENT PACK 2 (UK + IE) You can choose two type of installation: - Ducted option - Recirculation option [12] x 4 Fit the metal box and motor to the glass and metal work. Connect the electric cable. Fit the metal box and motor to the glass and metal work.
- Page 25 MAX.880 DIM.B DIM.B MIN.650mm MIN 435mm Electric Mark on the wall the hole positions as shown in diagram. The Wall Plugs supplied are suitable for solid walls only. When fixing to any other type of wall use suitable alternative fixings.
- Page 26 [10] x 5 [11] [10] [11] x 2 Drill the wall, insert the plugs for all the 6 marked holes and fix the screws for the top two holes of the hood. [11] x 1 Position the hood over the top two screw then fix the bottom screws from inside the hood. Tighten the top 2 screws to secure.
- Page 27 [05] [05] [11] MAX 880mm [11] x 2 Fix the top bracket to the wall. [07] x 1 [03] x 1 Replace the aluminium filter and fix front glass panel.
- Page 28 [08] [08] [09] [09] [09] [12] x 2 Fix the Collar and the reducer if required. Ø125mm or Ø150mm VENT PACK 2 (UK & IE) Fix the Ducting Tube 125 or 150 using tape or clamp. Fix the Collar and the reducer if required.
- Page 29 [02] [04] x 2 Fix to the wall the top bracket and place the decorative tubes. [15] [12] x 2 Fix the decorative tube to the bracket. Connect top of the ducting tube to vent kit as per manufacturers instructions.
- Page 30 Remove the Protector film. For electrical connection see Technical and legal information section.
- Page 31 Notes...
- Page 32 CNA Trading U.K. Ltd Hillbrow House Hillbrow Road Esher Surrey KT10 9NW...
