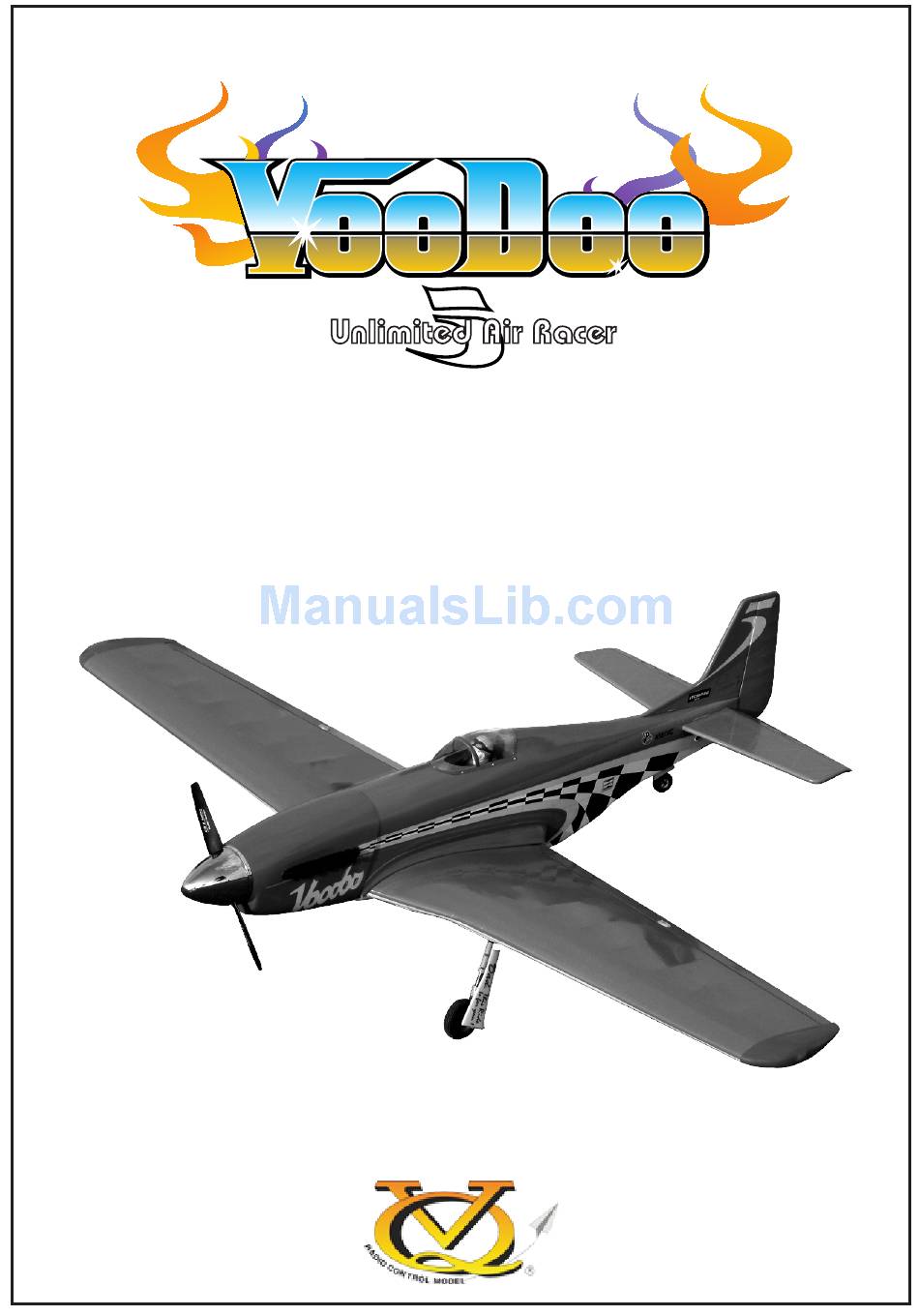

RADIO CONTROL MODEL / RC FLUGMODELL
INSTRUCTION MANUAL
SPECIFICATIONS
Wingspan.......57.5 in. / 146cm
Length...............50 in. / 127cm
Engine................46 2T / .70 4T
or Electric equivalent.
Radio..................4 ~ 6 channel
WARNING!
This radio control model is not a toy. If modified or flow carelessly it could go out of control and
cause serious bodily injury or property damage.
Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas with no debris or obstacles.
Almost ready to fly
Advertisement
Table of Contents
Related Manuals for Radio control model P-51 VooDoo
Summary of Contents for Radio control model P-51 VooDoo
-
Page 1: Instruction Manual
Radio....4 ~ 6 channel WARNING! This radio control model is not a toy. If modified or flow carelessly it could go out of control and cause serious bodily injury or property damage. Before flying your airplane, ensure the air field is spacious enough. - Page 2 REQUIRED FOR OPERATION (Purchase separately) 10.5x6 for .40 - 2 cycle engine Extension for aileron 11x6 for .46 - 2 cycle engine servo, retract servo. 12x6 for .60 - 4 cycle engine 12x7 for .70 - 4 cycle engine 13x8 for G-46 HP Motor. Motor Control Retract landing gear VQAR03...
-
Page 3: Joining The Wing
1- Joining the wing Cut the opening hole (½”x1/2”) WING - TOP VIEW throughout the balsa wood for the aileron extension cord exit. WING ROOT Using the thread (pre-installed at factory) to slide Thread (pre-installed at factory) the aileron extension cord into the wing half. Secure one end of the aileron extension cord with adhesive tape... -
Page 4: Servo Installation
Retract servo tray 3- Retract servo tray TOP VIEW 1/8(3mm plywood) Retract servo mount Retract servo mount CENTER Secure one end of the WING aileron extension cord SECTION with adhesive tape BOTTOM Retract servo tray installation Cut away only the covering 4- Servo Installation TOP VIEW RETRACT SERVO INSTALLATION... - Page 5 Link the servo and retract gear arm with push rod. 6- Retract landing gear Installation Be sure to adjust the stroke so that the landing gear locks in both up and down position. Retract servo Retract gear Retract gear RETRACTED EXTENDED WING TOP-VIEW With the retract and retract servo in the...
- Page 6 9- Fixed gear / Starres Fahrwerk ABS Wheel well cover Bottom view /Ansicht von unten 10- Fixed gear / Starres Fahrwerk 2x6mm screw ..4 4mm collar ...2 ..2 11- Wing bolt flat / Verstarkung Wing bolt flat 1/8”(3mm)plywood Wing bolt flat Cut away only the covering Bottom view /Ansicht von unten...
-
Page 7: Aileron Servo Installation
12- Wing bolt flat / Verstarkung Drill the holes throughout the wing bolt plat , from the top to the bottom of the wing. WRONG RIGHT 17/64” 6.5mm WING BOTTOM -Switch on the radio (trims centered) 13- Aileron servo installation then mount the ailerons servo horn in neutral position. -
Page 8: Installing The Wing
15- Air Scoop/wing cover 6x40mm nylon bolt 15/32” Plastic air scoop 12mm ..2 Wing cover Wing bolt plat 1/8”(3mm) ply Cut away the covering inside the line before install the air scoop and wing cover BOTTOM-VIEW 1-Using the ABS air scoop as a template, trace around the outside edge of the ABS air-scoop,and then remove it. 2-Using a sharp hobby knife, cut away the covering inside the lines. -
Page 9: Horizontal Stabilizer
Securely glue together. If coming off during flight, you lose control of 18- Horizontal stabilizer your air plane. Vergewissern Sie sich, sauber geklebt zu haben. Andernfalls konnen Cut away only the covering both Probleme mit der Flugeigenschaft auftreten! the right and left side B’... -
Page 10: Elevator Installation
20- Elevator installation Vergewissern Sie sich, sauber geklebt zu haben. Andernfalls konnen Probleme mit der Flugeigenschaft auftreten! Securely glue together. If coming off during flight, you lose control of your air plane. 3/8 in. (9.5mm) push the elevator and its hinges into the hinge slots in the trailing edge of the horizontal stabilizer. - Page 11 5/32x1” 1/8x5-1/64” 22- Engine mount - engine 4x25mm screw 3x20mm screw ...4 ...4 ! Align the mark on both mounts Blind-nut 1/8”(3mm) nut with the mark on the fuselage ....4 ....4 B’ FRONT-VIEW B=B’ - Using a pencil or felt tipped pen, mark the fire wall where the four 13/64”...
-
Page 12: Electric Motor
23- Fuel tank To muffler Filler tube Rubber stopper 3x25mm screw To engine 3x35 mm screw After confirming the direction . Insert this assembly, clunk end first, into the fuel tank and tighten and screw the fuel tank cap on firmly. Checking for leaks - block the vents and blow into the feed - if in doubt submersing the tank in a blow of water will show up any problems 24- Electric motor... -
Page 13: Cowling Installation
26- Linkages Throttle push rod BOTTOM VIEW Elevator push rod Thrott. servo Elev. servo Rudder servo Elevator push rod Rudder push rod Tail wheel push rod Elevator pushrod 3mm set Screw 3mm set Screw Elevator pushrod throttle pushrod or rudder pusshrod D=.050”(1.2mm) D=5/64”(2mm) Tail wheel pushrod... - Page 14 28- Decor Note: Cut out the stickers and apply them in the proper area. Do not peel the backing paper off all at once. Peel off one corner of the backing and cut off with scissors. Arrange sticker on model and when satisfied adhere the corner without backing. Carefully peel back the rest of the backing while at the same time adhering the rest of the sticker.
-
Page 15: Control Surface
30 Control Surface 15/64”( 15/64”( AILERON STROKE 1-23/64”(35 mm) 13/32”(10mm) 1-23/64”(35 mm) 13/32”(10mm) ELEVATOR STROKE RUDDER STROKE Adjust the travel of the control surfaces to achieve the values stated in the diagrams. These value will be suitable for average flight requirements. Adjust the values to suit your particular needs.
