Remove; I/O Port; Install And Remove Cable - Dahua IPC-HF3200 Quick Start Manual

2.4.2 Remove

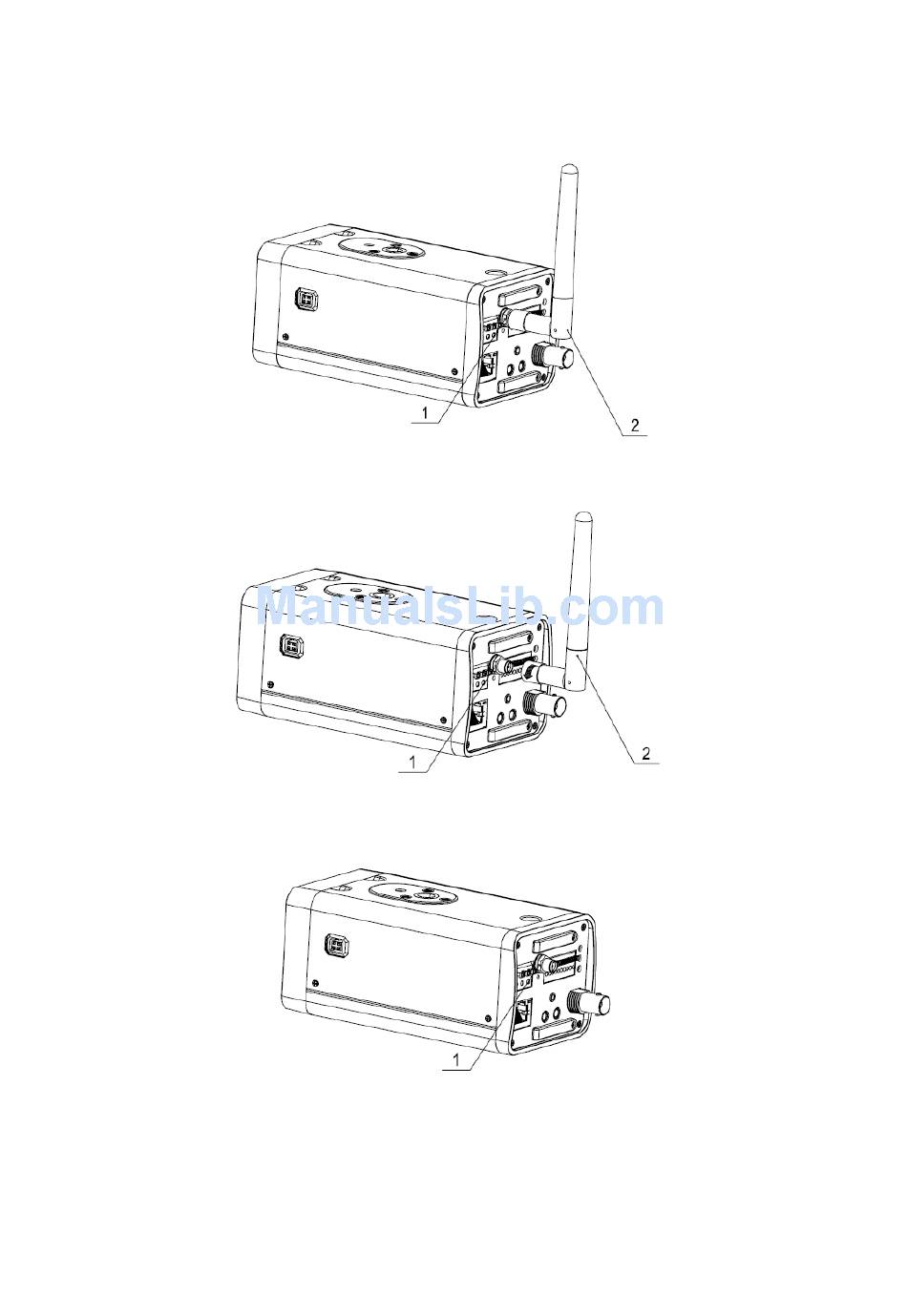

Use your hands to hold the 3G/WIFI thread end and then turn according to the following figure.
See Figure 2-13.
Now you can see the antenna is away from the thread. See Figure 2-14.
Remove the 3G/WIFI antenna from the port of the rear panel. See Figure 2-15.

2.5 I/O Port

2.5.1 Install and Remove Cable

Install Cable
Figure 2-13
Figure 2-14
Figure 2-15
12
