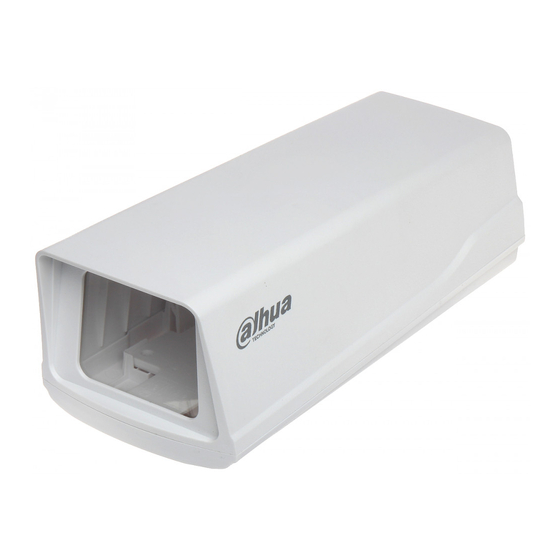

- Page 1 PFH600N Housing User's Manual Version 1.0.1...
-
Page 2: Table Of Contents
Table of Contents GENERAL INTRODUCTION ................1 Overview ..............................1 Features ..............................1 Dimensions ............................. 1 HOUSING INSTALLATION INSTRUCTION GUIDE ........... 2 Lock/Unlock Housing ..........................2 Camera Installation ..........................2 BRACKET INSTALLATION GUIDE ..............4 APPENDIX 1 SPECIFICATIONS ................5 APPENDIX 2 TOXIC OR HAZARDOUS MATERIALS OR ELEMENTS .... - Page 3 Welcome Thank you for purchasing our housing! Please read the following safeguards and warnings carefully before you install or use the product!
- Page 4 Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation. 2．Transportation security Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation.
-
Page 5: General Introduction
1 General Introduction 1.1 Overview The PFH600N housing (“housing”) adopts all-weather compact design. It can install camera and lens of various dimensions. It has built-in camera mounting plate. The IP66 compliance is suitable for various environments. 1.2 Features Compact design, concealed cable exit. ... -
Page 6: Housing Installation Instruction Guide
2 Housing Installation Instruction Guide 2.1 Lock/Unlock Housing You can use screwdriver to fix or loosen the two M4 cross pan head screws on both sides of the housing to lock or unlock the housing. See Figure 2-1. Figure 2-1 2.2 Camera Installation Step 1: Take the camera bracket from the housing. -
Page 7: Figure
Figure 2-3 Figure 2-4 Note: The distance between lens face and camera fixing hole has to be longer than 60mm, but shorter than 130mm. -
Page 8: Bracket Installation Guide
3 Bracket Installation Guide Installation Steps: Step 1: Pull the cable through the inside of the bracket. Step 2: Put the waterproof joint on the cables and then secure it firmly on the housing. Step 3: Secure the bracket on the housing with M6 screws. Note: ... -
Page 9: Appendix 1 Specifications
Appendix 1 Specifications Product Model DH-PFH600N Dimension 312mm×133mm×103mm Camera Max Dimension 211mm×73mm×78mm Window Area 63mm×72mm Weight 0.7Kg Material ASA, PC Protection Level IP66 Installation Environments Indoor/Outdoor Working Temperature -30℃～+60℃ ＜90%，no condensation Working Humidity... -
Page 10: Appendix 2 Toxic Or Hazardous Materials Or Elements
Appendix 2 Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE ○ ○ ○ ○ ○ ○ Sheet Metal ○ ○ ○ ○ ○ ○ Plastic Parts ○ ○ ○ ○ ○ ○...
