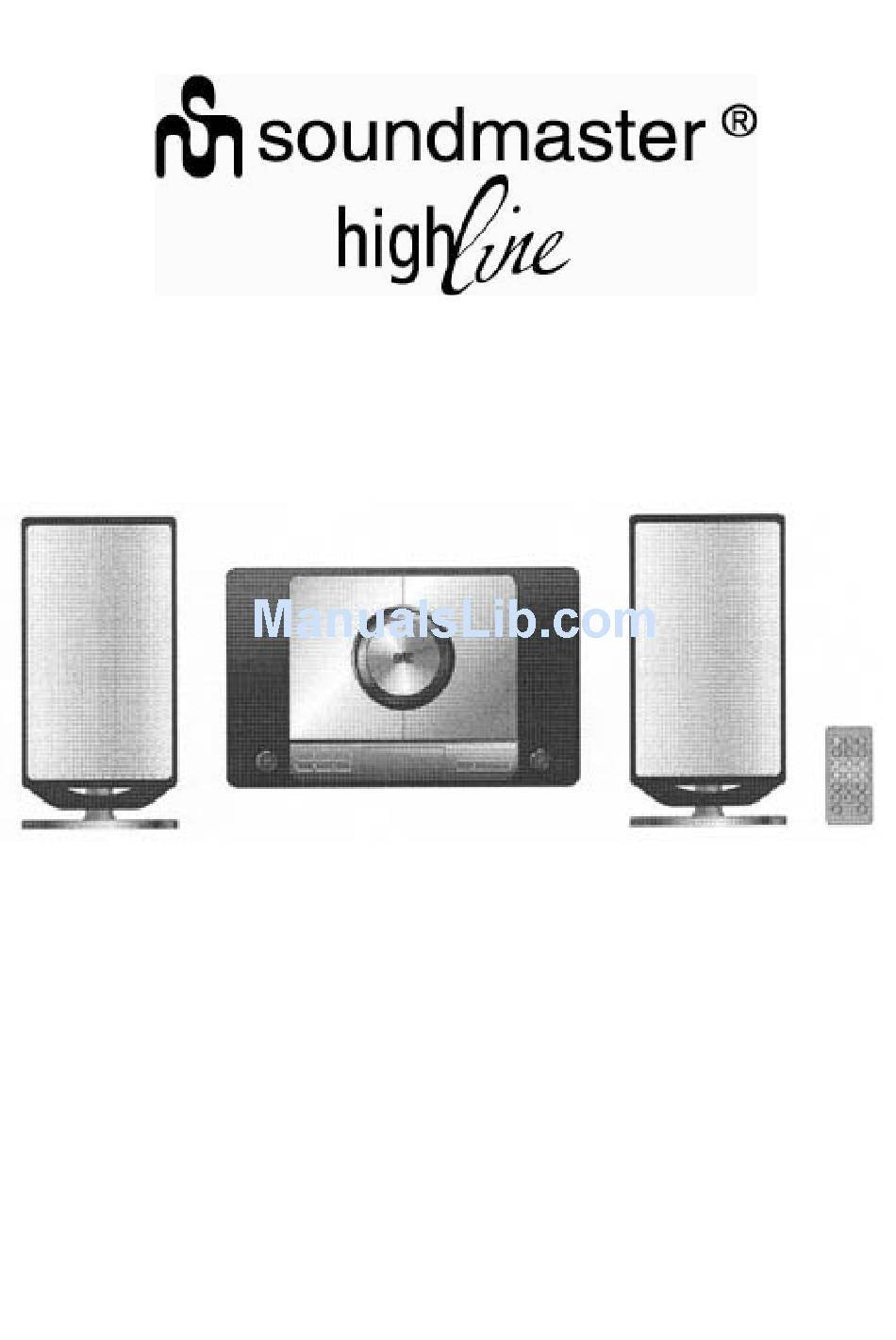

- Page 1 Modell Disc 4220USB Bitte vor Inbetriebnahme sorgfälltig lessen. Read instructions carefully before using the unit. Avant de metre en service votre appareil, lisez attentivement ce instructions...
- Page 2 Sicherheits- / Umwelt- / Aufstellhinweise Das Gerät ausnahmslos nur in trockenen Innenräumen betreiben. Niemals mit Feuchtigkeit in Verbindung bringen Niemals das Gerät öffnen. STROMSCHLAGGEFAHR ! Dies ist nur Fachpersonal gestattet. Bei Gewitter, Netzstecker sofort aus der Steckdose entfernen. Bei Beschädigung des Netzkabels, Netzstecker sofort ziehen und eine Fachwerkstatt aufsuchen. Kinder sollten das Gerät nur unter Aufsicht Erwachsener betreiben.
-
Page 3: Control And Indicators
CONTROL AND INDICATORS... -
Page 4: Remote Sensor
STANDBY ON/OFF button • To turn the standby ON/OFF. REMOTE SENSOR • To sense signal from remote control. key (Touch sensor key) • Record sound from CD/MP3/TUNER/AUX • File copy USB to card or card to usb. INFO/BIT-SEL key (Touch sensor key) •... -
Page 5: Ac Power Cord
13. FUNCTION Key (Touch sensor key) • To select the TUNER, CD, USB, CARD or AUX mode. 14. DISC TRAY 15. SPEAKER TERMINAL 16. AUX INPUT SOCKET 17. SUB-WOOFER JACK (Optional) 18. 75 ohm antenna-jack 19. AC POWER CORD 20. AM ANTENNA 21. -
Page 6: Remote Control
REMOTE CONTROL STANDBY/ON Key INFO/BIT-SEL Key RDS/REPEAT Key ALBUM/PRESET - Key PTY/RANDOM key SKIP-/DOWN STOP /BAND key TIMER/SLEEP Key 10. EQ key 11. MUTE Key 12. FIND/ESP Key 13. SKIP+/UP 14. PLAY/PAUSE (CD MODE SELECTION) 15. VOLUME - Key 16. VOLUME + Key 17. -
Page 7: Operation/Tuner
D. AUX input / MP3 input for connection of other sound sources. (e.g. TV or VCR audio output). OPERATION POWER STANDBY ON/OFF When you first plug the unit into the mains, the unit will go into standby mode. The display will show the time. •... - Page 8 LISTENING TO FM STATION WITH RDS RDS(Radio Data System) permits FM stations to send additional signals with the regular programme signals. For example, the station send their station names and information about what type of broadcast programme, such as sports or music,etc.
- Page 9 To search a station by PTY codes A particular programme type broadcast can be located by specifying the PTY codes. NEWS:News AFFAIRS: Current affairs INFO: Sport SPORT: Sport EDUCATE: Education DRAMA: Drama CULTURE: Culture SCIENCE: Science VARIED: Varied POP M: Pop music ROCK M: Rock music MOR M: Middle of the road music (easy-listening) LIGHT M: Light classics...
- Page 10 OPERATION/COMPACT DISC/MP3/WMA Press FUNCTION key to select CD/MP3 mode. INSERTING THE MP3/WMA-CD/CD DISC Press OPEN/CLOSE to open the CD door. Insert a MP3-CD/CD in the tray. Press OPEN/CLOSE again to close the CD door. • The MP3-CD/CD-player starts and scans the contents list of the MP3/WMA- CD/CD.
- Page 11 FIND BY FILE NAME • Press FIND/ESP on remote control once to access this search mode. The display will show letter "A". If any file name start with letter "A", It will appear on the display. You can Press to search from A-Z,0-9. •...
- Page 12 REPEAT PLAY (For MP3/WMA-CD/CD) Press REPEAT button once. "REPEAT 1" will be displayed on the LCD. Press REPEAT twice, "REPEAT ALL" will be displayed on the LCD. Press REPEAT three times, "REPEAT ALBUM" will be displayed on the LCD. Press REPEAT four times to cancel the repeat function. RANDOM PLAY Press RANDOM button once, "RANDOM"...
- Page 13 OPERATION/RECORDER REC FM TUNER Press Function key, to select tuner mode, then press STOP/BAND key, to select FM band. Press FR/DOWN or FF/UP until you wish select station. Press BIT-SEL key once, “BIT RATE ” will dispaly on the LCD. Press to select recorder BIT RATE(64-96-128-192-256)kbps.
-
Page 14: Timer On Setting
USB/CARD COPY Press Function key, to select USB or CARD mode. In USB play mode, Press REC key, copy current file to SD or MMC card FCOPY folder. In CARD play mode, Press REC key, copy current file to USB FCOPY folder. In STOP mode, Press REC key, copy all file to USB or SD/MMC card FCOPY folder. - Page 15 OPERATION/PRESET EQUALIZER Press PRESET EQ to select the digital sound performance in the order of FLAT, CLASSIC, ROCK, POP and JAZZ. OPERATION/MUTE Press MUTE to terminate the sound output. Press again to cancel this mode. GENERAL Set not reacting when any function button is pressed. The normal function of the product may be disturbed by external interference, just reset the product (reconnect of power source may be required) to resume normal operation.
