Installation Preparation

PREPARE ELECTRICAL WIRING

WARNING:
• Remove all power leading to the appliance from the circuit
breaker or fuse box before beginning installation. Failure to do
so can result in a risk of electrical shock.
ADVERTENCIA:
• Retire todos los conductores de corriente del electrodoméstico
de disyuntor o de la caja del fusible antes de comenzar con la
instalación. Si no cumple con esto, se podrá producir el riesgo
de descargas eléctricas.
Electrical Requirements
• This appliance must be supplied with 120V, 60 Hz., and
connected to an individual properly grounded branch circuit,
protected by a 15- or 20-ampere circuit breaker or time-delay
fuse.
• Wiring must be 2 wire with ground and rated for 75°C (176°F).
• If the electrical supply does not meet the above requirements,
call a licensed electrician before proceeding.
Grounding Instructions–Permanent Connection
This appliance must be connected to a grounded metal,
permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and be
connected to the equipment-grounding terminal or lead on
the appliance.
Grounding Instructions–Power Cord Models
This appliance must be grounded. In the event of a malfunction
or breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This appliance is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is installed and
grounded in accordance with all local codes and ordinances.
WARNING:
• The improper connection of the equipment grounding conductor
electrician or service representative if you are in doubt that the
appliance is properly grounded. If house wiring is not 2-wire
with ground, a ground must be provided by the installer. When
house wiring is aluminum, be sure to use UL-Listed anti-oxidant
compound and aluminum-to-copper connectors.
ADVERTENCIA:
• La conexión inadecuada del conductor de conexión a tierra del
equipamiento puede provocar un riesgo de descarga eléctrica.
técnico si tiene dudas sobre la correcta conexión a tierra del
aparato. Si el cableado doméstico no cuenta con un cable de
2 hilos con conexión a tierra, un instalador debe realizar una
conexión a tierra. Cuando el cableado doméstico es de aluminio,
asegúrese de usar un compuesto antioxidante y conectores de
aluminio a cobre aprobados por UL.
4
18"
Receptacle
Location
18"
Area
6"
6"
For models equipped with power cord: Do not modify the plug
provided with the appliance; if it will not fit the outlet, have a
proper outlet installed by a qualified technician.

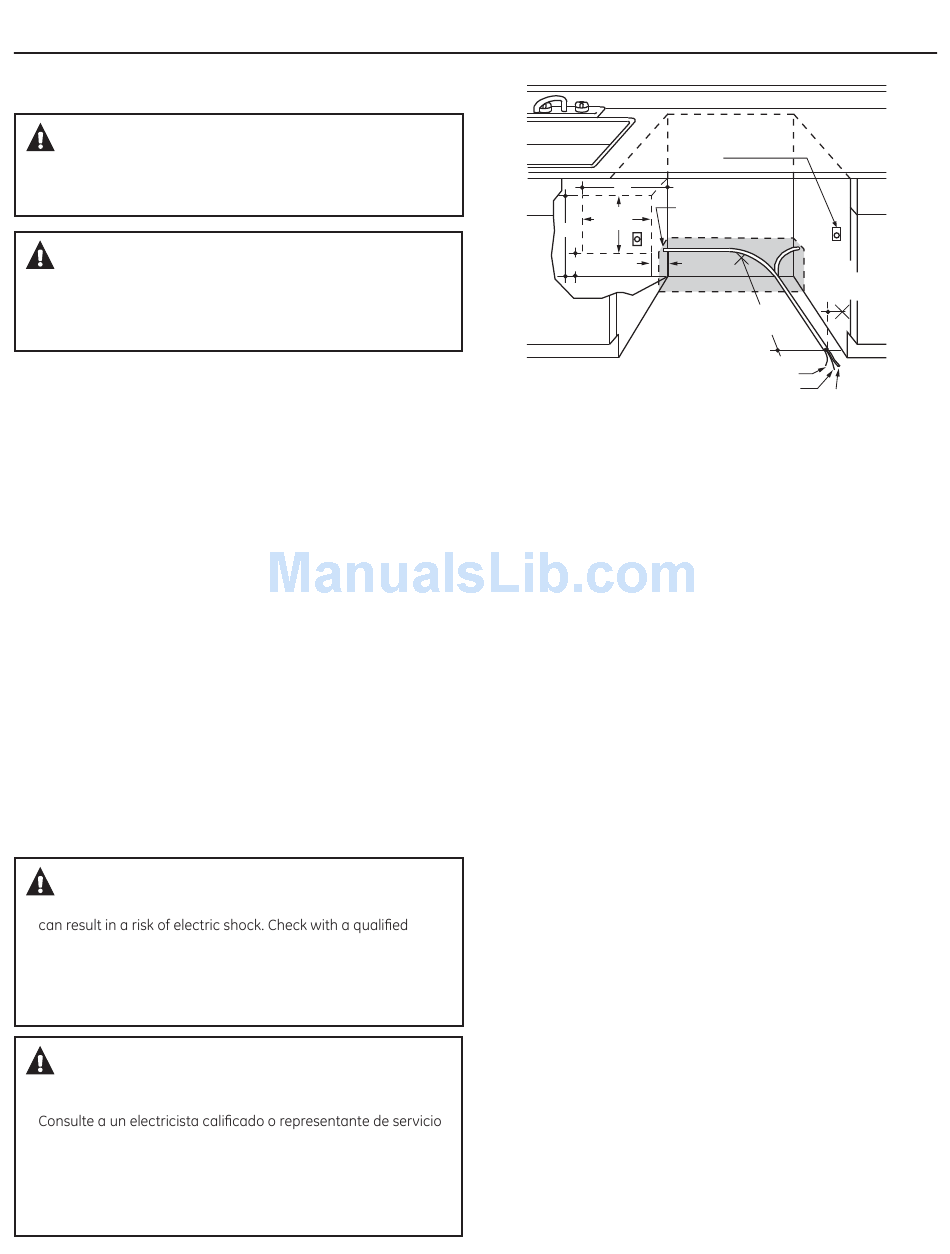

Cabinet Preparation & Wire Routing
• The wiring may enter the opening from either side, rear or the
floor within the shaded area illustrated in above figure and
defined in PREPARE DISHWASHER ENCLOSURE section.
• Cut a 1-1/2" maximum diameter hole to admit the electrical
cable. Edges of hole should be smooth and rounded.
Permanent wiring connections may pass through the same
hole as the drain hose and hot water line, if convenient. If
cabinet wall is metal, the hole edge must be covered with a
bushing.
NOTE: Power cords with plug must pass through a separate
hole.
Electrical Connection to Dishwasher
Electrical connection is on the right front of dishwasher.
• For permanent connections the cable must be routed as
shown in above figure. Cable must extend a minimum of 24"
from the rear wall.
• For power cord connections, install a 3-prong grounding
type receptacle in the sink cabinet rear wall, 6" min. or 18"
maximum from the opening, 6" to 18" above the floor.
• Use only WXO9X70910 (5' 5" long) or WX09X70911 (7' 11"
long) Dishwasher Power Cord Kit. Do not use an extension
cord or adapter plug with this appliance.
Alternate Receptacle
Location in Adjacent
Cabinet
1-1/2" Dia. Hole (Max.)
3"
from
Cabinet
24"
from Wall
Ground
Black
White
