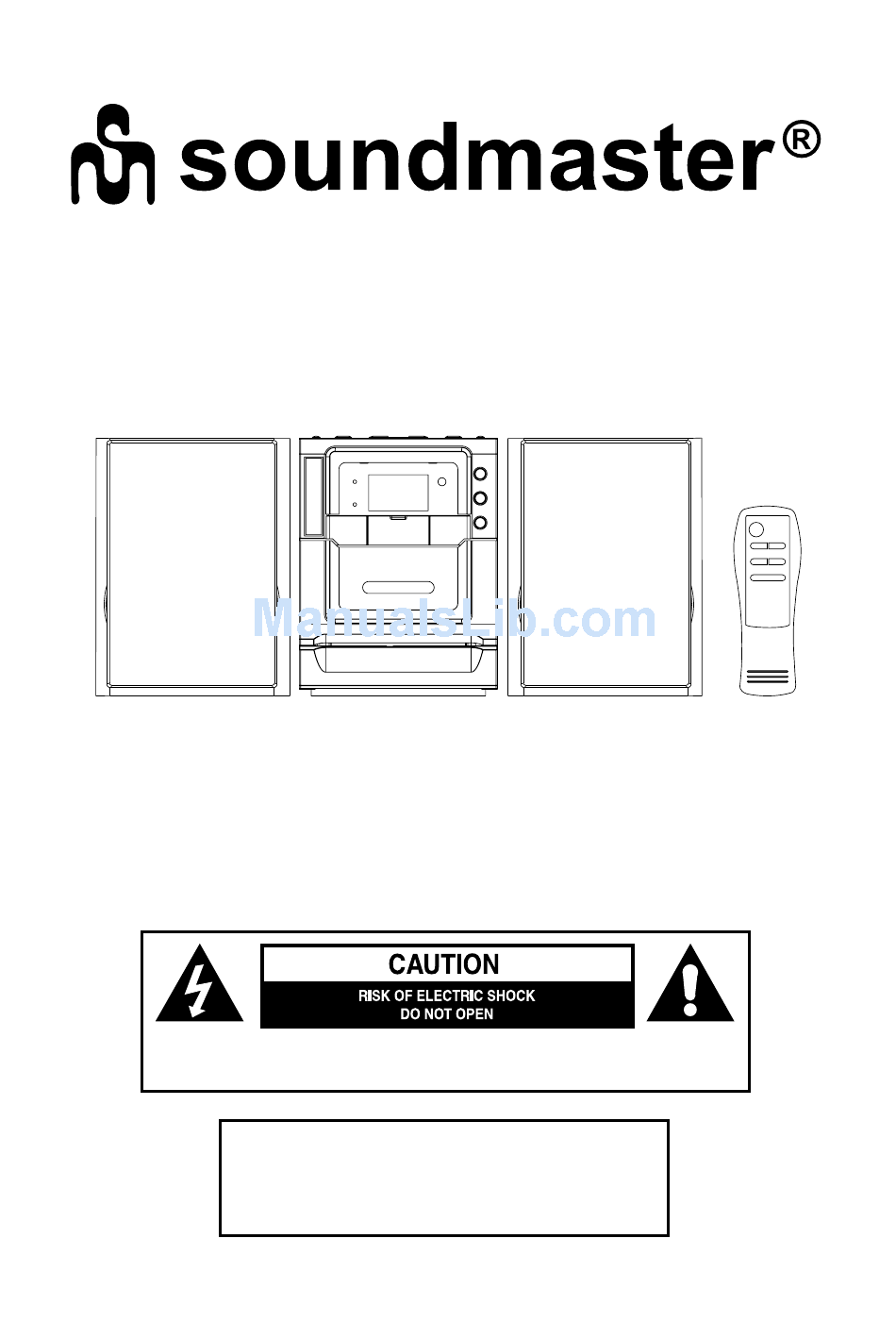

Bitte vor Inbetriebnahme sorgfälltig durchlesen.
Read instructions carefully before using the unit.
Avant de metre en service votre appareil, lisez attentivement ce instrcutions
LASERSCHUTZKLASSE 1 PRODUKT
CLASS 1 LASER PRODUCT
APPAREIL A LASER DE CLASSE 1
Modell MCD-700
WARNING : SHOCK HAZARD-DO NOT OPEN
AVIS: RISQUE DE CHOC ÉLECTRONIQUE - NE PAS OUVRIR
WARNING: ELEKTROSCHOCK GEFAHR - NICHT ÖFFNEN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCD-700 and is the answer not in the manual?

Questions and answers

Related Manuals for SOUNDMASTER MCD-700

Summary of Contents for SOUNDMASTER MCD-700

  • Page 1 Modell MCD-700 Bitte vor Inbetriebnahme sorgfälltig durchlesen. Read instructions carefully before using the unit. Avant de metre en service votre appareil, lisez attentivement ce instrcutions WARNING : SHOCK HAZARD-DO NOT OPEN AVIS: RISQUE DE CHOC ÉLECTRONIQUE - NE PAS OUVRIR WARNING: ELEKTROSCHOCK GEFAHR - NICHT ÖFFNEN...
  • Page 2 WARNING TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING : SHOCK HAZARD-DO NOT OPEN LIGHTNING FLASH WITH ARROWHEAD SYMBOL - EXCLAMATION POINT - within an equilateral triangle, within an equilateral triangle, is intended to alert the is used to indicate that a specific component shall be user to the presence of uninsulated dangerous...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS 1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated. 2. RETAIN INSTRUCTIONS - The safety and operating instruction should be retained for future reference. 3. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to. 4.

  • Page 4: Location Of Control

    LOCATION OF CONTROL 1) POWER INDICATOR 2) LCD DISPLAY 3) REMOTE SENSOR 4) MINUTE 5) HOUR 6) TIME SET 7) FUNCTION SELECTOR 8) FM STEREO INDICATOR 9) BAND SELECTOR 10) TUNING CONTROL 11) CASSETTE DOOR 12) CASSETTE RECORD 13) CASSETTE PLAY 14) CASSETTE REWIND 13 14 15 16 15) CASSETTE FORWARD...

  • Page 5: Power Source

    LOCATION OF CONTROL 28) BATTERY BACKUP 29) SPEAKER JACK L / R 30) BEAT CUT 31) FM ANTENNA 32) HEADPHONE JACK 33) AC CORD POWER SOURCE AC POWER You can power your appliance by plugging the AC power cord at the back of the appliance into a wall AC power outlet.

  • Page 6: Remote Control

    REMOTE CONTROL 1. PLAY / PAUSE 2. SKIP - 3. PROGRAM 4. STOP 5. SKIP + 6. REPEAT BATTERY INSTALLATION Insert 2 x “AAA” size batteries into the battery compartment. Be sure that the batteries are inserted correctly to avoid damage to the remote control. Always remove the batteries when the remote control will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.

  • Page 7: Radio Operation

    RADIO OPERATION GENERAL OPERATION 1. Set the “FUNCTION” selector to “RADIO” mode. 2. Select desired band by using the “BAND” selector. 3. Adjust radio frequency to your desired station by using the “TUNING” control. 4. Adjust the “VOLUME” control to the desired level. FM / FM-STEREO RECEPTION - Set the “BAND”...

  • Page 8: Tape Operation

    TAPE OPERATION GENERAL OPERATION PAUSE Press to stop playing tape operation temporarily. Press again to resume tape operation. STOP / EJECT Press to stop tape operations. Press again to open the cassette door after the tape spools stop turning. FAST FORWARD &...
  • Page 9 CD OPERATION GENERAL OPERATION PLAY / PAUSE Press to start playing CD disc. Press again to stop playing CD operation temporarily. Press again to resume playback. SKIP + & Press to go to the next track or back to the previous track. SKIP - Press and hold while playing until you find the point of the sound.

  • Page 10: Other Features

    CD OPERATION PROGRAM Up to 20 tracks can be programmed for disc play in any order. Be sure to press the “STOP” button before use. 1. Press the “PROGRAM” button, the display will show “P01” and flash. 2. Select desired track by using the “SKIP +” or “SKIP -” button. 3.
