Summary of Contents for SOUNDMASTER MCD-808USB

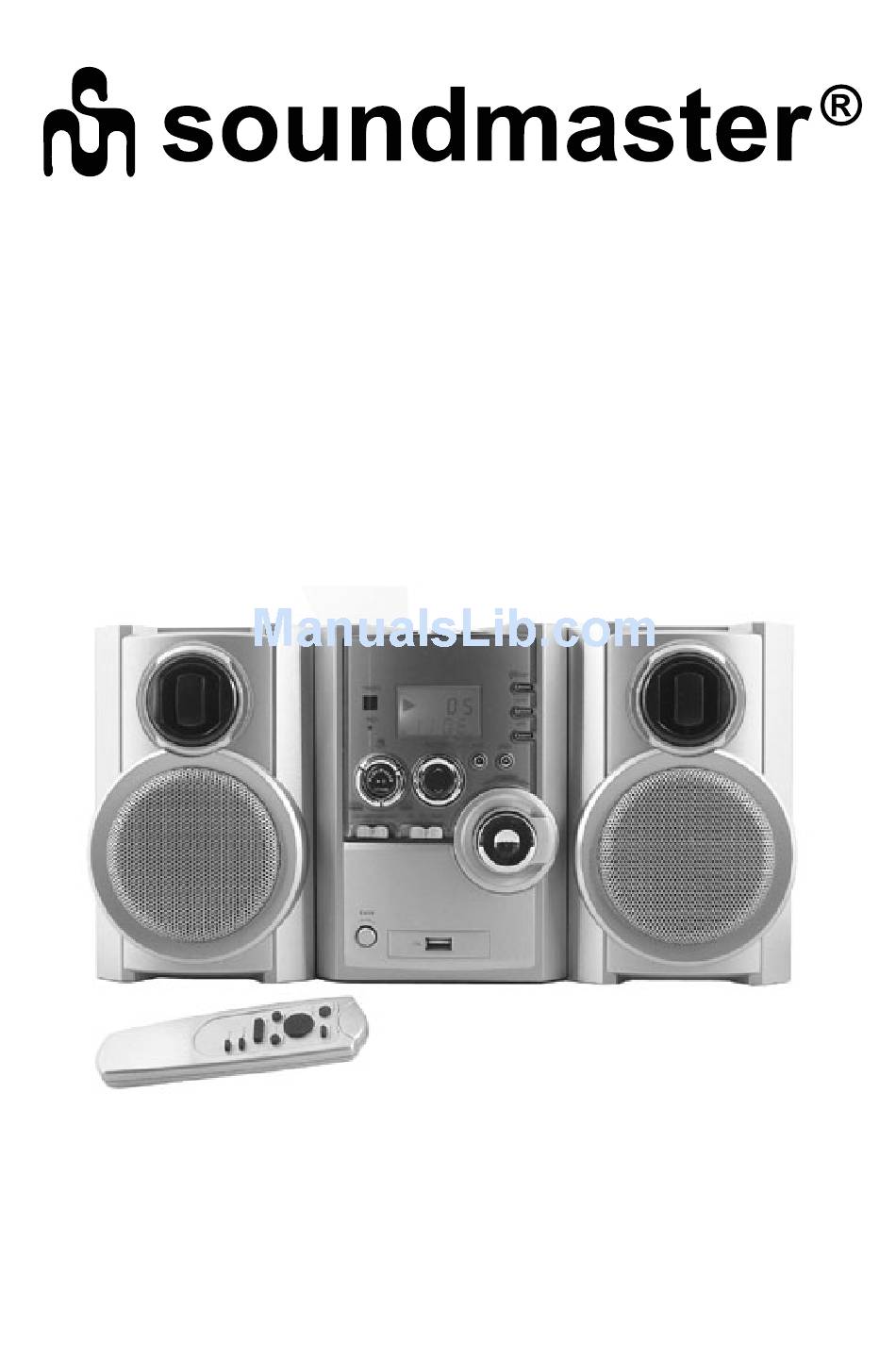

- Page 1 Modell MCD-808USB Model MCD-808USB Modèle MCD-808USB M C D - 8 0 8 U S B Bedienungsanleitung bitte vor Inbetriebnahme sorgfälltig lesen Read instructions carefully before using the unit Avant de metre en service votre appareil, lisez attentivement ce instructions...
-
Page 2: Class 1 Laser Product
WARNING : TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE WARNING : SHOCK HAZARD-DO NOT OPEN This marking is located on back side of the unit The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS 14. DAMAGE REQUIRING SERVICE-The appliance should be serviced by qualified service personnel 1. READ INSTRUCTIONS-All the safety and when : operating instructions should be read before A. The power-supply cord or plug has been the appliance is operated. damaged. -
Page 4: Precautions Concerning Batteries
SENSOR window of the receiver. Note: • Even if the remote control unit is operated within the effective range, remote control operation may be impossible if there are any obstacles between the unit and the remote control. • If the remote control unit is operated near other appliances which generate infrared rays, or if other remote control devices using infrared rays are used near the unit, it may operate incorrectly. -
Page 5: Location Of Control
LOCATION OF CONTROL 1.) REMOTE SENSOR 2.) CD OPEN BUTTON 3.) LCD DISPLAY 4.) FM STEREO INDICATOR 5.) STOP 6.) PLAY / PAUSE 7.) BACK 8.) NEXT 9.) POWER OFF / FUNCTION SELECTOR 10.) BAND / FM STEREO SELECTOR 11.) BASS 12.) TIME SET / ALBUM 13.) HOUR 14.) MINUTE... - Page 6 LOCATION OF CONTROL 1.) MODE 2.) VOLUME + 3.) VOLUME - 4.) SKIP - 5.) PLAY/PAUSE 6.) PROGRAM 7.) SKIP + 8.) STOP 9.) ALBUM...
-
Page 7: Before Connection
Before Connection Caution Turn off the power of all the equipment before making connections. Read instructions of each component you intend to use with this unit. • Be sure to insert each plug securely. To prevent hum and noise, do not bundle the connection cords with power cord of speaker cord. - Page 8 Operating CD 1 Switch to “CD/MP3/USB” mode, unit will turn “ON” automatically. 2 Press “OPEN” button to open CD door. • Place the disc with label facing up on the disc tray. • Hold the disc without touching either of its surface position with printed title side facing up, align it with the guides and place it in its proper position.
- Page 9 Radio Operation 1 Set the function selector to “RADIO” position 2 Select desire Band (Radio frequency Digit will appear on display) 3 Adjust radio frequent to your desire station by using the tuner control 4 Adjust Volume Control for volume level FM / FM-Stereo Reception •...
- Page 10 Operating MP3 1 Switch to “CD/MP3/USB” mode, unit will turn “ON” automatically. 2 Press “OPEN” button to open CD door • Place the disc with label facing up on the disc tray. • Hold the disc without touching either of its surface position with printed title side facing up, align it with the guides and place it in its proper position.
- Page 11 Operating USB 1 Switch to “CD/MP3/USB” mode, unit will turn “ON” automatically. 2 Insert USB device to port. 3 Press and hold “PLAY” button to operate USB. Display show Total File and Tracks No. 5 Stopping play Press “STOP” button once to stop play •...
