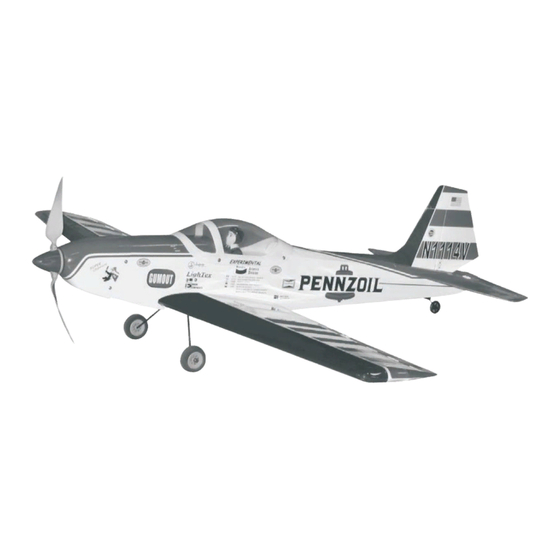

Requires: 4-channel radio w/ 4 micro servos,
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co
www.theworldmodels.com
E205PO11571111
Outrunner Motor KM0283010
w/ Propeller Adaptor HW2340100
20A brushless ESC, 3 cells 11.1V
2100 mAh Li - Po battery & charger.
Specifications
*Specifications are subject to change without notice.*
., Ltd .
INSTRUCTION MANUAL
39.5 in / 1000 mm
260 sq in / 16.8 sq dm
25.5 oz / 720 g
32.0 in/ 810 mm
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY(ARF) SERIES
MADE IN CHINA
Advertisement
Table of Contents
Related Manuals for The World Models Manufacturing SUPER CHIPMUNK-EP
Summary of Contents for The World Models Manufacturing SUPER CHIPMUNK-EP
- Page 1 INSTRUCTION MANUAL Requires: 4-channel radio w/ 4 micro servos, Outrunner Motor KM0283010 w/ Propeller Adaptor HW2340100 20A brushless ESC, 3 cells 11.1V 2100 mAh Li - Po battery & charger. Specifications 39.5 in / 1000 mm Wing Span 260 sq in / 16.8 sq dm Wing Area 25.5 oz / 720 g Flying Weight...
-
Page 2: Before You Begin
I N D E X BEFORE YOU BEGIN P. 1 PARTS LIST P. 2 ASSEMBLY P. 3 -9 SAFETY PRECAUTIONS BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. -
Page 3: Parts List
Parts list 1. MAIN WING -- 1 pair 8. PUSHROD CONNECTOR PL4410020 -- 1 set BATTERY TIE -- 1 pc. 2. PUSHROD Ø1.4X75mm w/ Thresds (For Aileron) -- 2 pcs SPONGE -- 1 pc. STRAPER PL4112106 -- 2 pcs DOUBLE-SIDED TAPE -- 1 pc. SCREW PM2x12mm -- 4 pcs FUEL TUBE D4xd2x4mm -- 2 pcs CLEVIS PL4112105 -- 2 pcs... - Page 4 Main Wing Aileron Servo lead Bottom View Apply instant type CA glue to both sides of each hinge. Aileron Servos straper Screw PM2x12mm PM2x12mm Fuel Tube Ø4x4mm Ø1mm pilot holes for World Models Clevis tri-horn are pre-drilled. Please look Pushrod Ø1.4x75mm for pin-hole marks at under side of Horn...
-
Page 5: Stabilizer & Elevator
Stabilizer & Elevator (Stabilizer) Temporary install the main wing, adjust leveling of the stabilizer to make it as parallel to the main wing (Main Wing) as possible. B=B' A=A' Completed Apply instant type CA glue to both sides of each hinge. PA2x8mm Vertical Fin/Rudder &... -
Page 6: Elevator Pushrod
Elevator Pushrod Screw PM2x8mm Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. PM2x8mm Clevis Fuel Tube Ø4x4mm Horn Pushrod Ø1.4x430mm TWM PL8210010 CLEVIS WRENCH Bottom View Rudder Pushrod Ø1mm pilot holes for World Models tri-horn are pre-drilled. -
Page 7: Optional Parts
Outrunner Motor & Cowling d3xD7mm M3x6mm Socket Head Screw Optional Parts Washer M3x6mm PM2x12mm Screw Outrunner Motor 28/ 30 PWA2x8mm Screw KM0283010 d3xD7mm Washer Propeller Adaptor (d3xD5) HW2340100 Don't over-tighten the M3 screws, too much KP0011310 stress on the screws Solder Solder could split the firewall. -
Page 8: Radio Equipment
Radio Equipment Receiver wrapped up in sponge. Double-Sided Tape Elevator Servo Brushless ESC Fuel Tube Ø4x4mm Front Elevator Servo Elevator Pushrod Ø1.4x80mm Straper Switch Rudder Pushrd Battery Rudder Servo Ø1.4x400mm Sponge Battery Tie KA1.7x5mm Main Wing Front Screw PM2.5x20mm d2.5xD8mm Washer d2.5xD8mm PM2.5x20mm Bottom View... - Page 9 Canopy Screw PWA2x8mm PWA2x8mm Front Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A=A' B=B' C=C' E205PO11571111...
-
Page 10: Control Throws
Control Throws Adjust the control throws as shown in the diagram. These throws are good for general Rudder 20mm flying. You can adjust according to your personal preference. 20mm Elevator 10mm 10mm Aileron The ideal C.G. position is 65mm (2.56in.) behind C.G. - Page 11 Product Registration Form (US Customers) We would like to share with you any relevant information regarding your model, including product news and free upgrade parts when applicable. Please fill in the following and send to AirBorne Models, 4749-K, Bennett Drive, Livermore, CA 94551 USA. 1.
- Page 12 The World Models Manufacturing Co www .thew orldm odels .com E205PO11571111...
