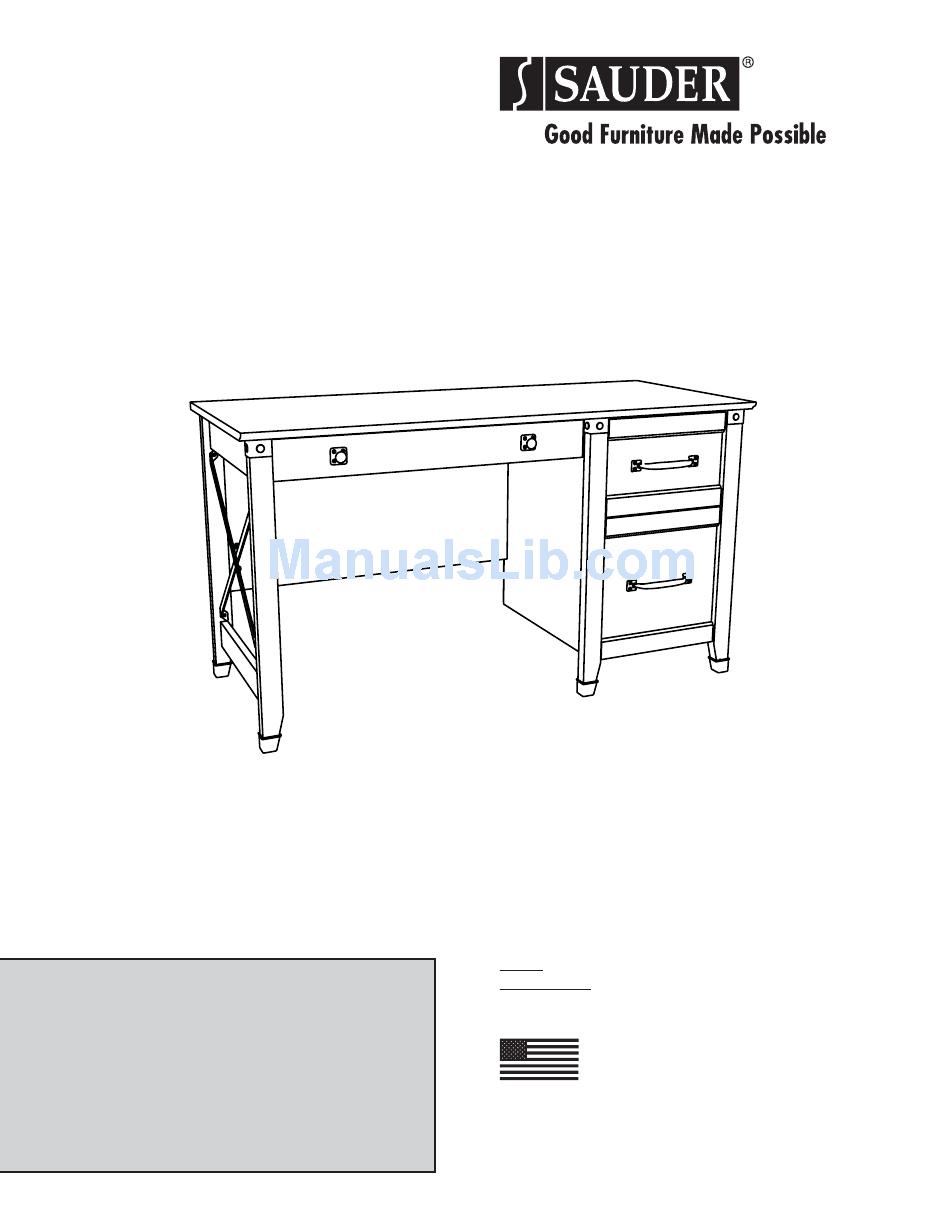

412267
Desk
Registry Row Collection
PLEASE CONTACT US
BEFORE RETURNING
YOUR UNIT TO THE STORE
1-800-523-3987
www.sauder.com
NOTE: THIS INSTRUCTION BOOKLET CONTAINS
IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
English .................... Page 2-28
Français ...............Pages 29-32
Made in the USA
Espanol .............Páginas 33-36
Archbold, OH
Lot #: 354656
Date Purchased: ____________________
07 / 10 / 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 412267 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sauder 412267

Summary of Contents for Sauder 412267

  • Page 1 412267 Desk Registry Row Collection NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE CONTACT US PLEASE READ AND KEEP FOR FUTURE REFERENCE. BEFORE RETURNING English ....Page 2-28 YOUR UNIT TO THE STORE Français ....Pages 29-32 Made in the USA 1-800-523-3987 Espanol .....Páginas 33-36...
  • Page 2 Part Identifi cation ....2-3 No. 2 Phillips Screwdriver Hardware Identifi cation ..3-4 Tip Shown Actual Size Assembly Steps ....6-28 Français ......29-32 Hammer Espanol ....... 33-36 Safety ......... 37-38 Straight Edge Screwdriver Warranty ........39 Page 2 www.sauder.com/services 412267...
  • Page 3 CENTER LEG D236 FILE DRAWER SIDE MODESTY PANEL EXTENSION BLOCK SMALL DRAWER D792 BACK END MOLDING BOTTOM PENCIL DRAWER BRACE FRONT UPPER DRAWER FRONT PENCIL DRAWER BACK D227 D236 D246 D239 D792 D236 D792 D239 D238 D238 412267 www.sauder.com/services Page 3...
  • Page 4 WOOD DOWEL - 9 FOOT - 5 BRACKET - 1 FRONT BRACKET - 1 PULL - 2 METAL BRACE - 1 FILE GLIDE - 2 WW BACKPLATE - 2 KNOB - 2 CORNER ACCENT - 3 Page 4 www.sauder.com/services 412267...

  • Page 5: Table Of Contents

    DDD BROWN 9/16" LARGE HEAD SCREW - 14 SILVER 1/2" MACHINE SCREW - 5 GGG NAIL - 25 GOLD 5/16" FLAT HEAD SCREW - 24 Screws are shown actual size. You may receive extra hardware with your unit. 412267 www.sauder.com/services Page 5...

  • Page 6: Metal

    Push twenty-three HIDDEN CAMS (1F) into the ENDS (A and C), UPRIGHT (D), BOTTOM (F), MODESTY PANEL (G) and BRACE (I). Then, insert the metal end of a CAM DOWEL (2F) into each HIDDEN CAM, except in the LOWER LEFT END (C) and MODESTY PANEL (G). Page 6 www.sauder.com/services 412267...
  • Page 7 (13 used) Turn thirteen CAM SCREWS (8F) into the LEGS (U, V, X and Y). NOTE: Be sure to use the exact holes shown. 412267 www.sauder.com/services Page 7...
  • Page 8 Fasten the CORNER ACCENTS (UU) to the FRONT LEGS (U, V, and Y). Use two BLACK 7/8" MACHINE SCREWS through the FRONT LEGS (U and Y). Use a SILVER 1/2" MACHINE SCREW through the LEFT FRONT LEG (V). Page 8 www.sauder.com/services 412267...
  • Page 9 Edge with CAM DOWELS Angled edge Angled edge Fasten the RIGHT FRONT LEG (U) to the RIGHT END (A) and the CENTER LEG (Y) to the UPRIGHT (D). Tighten six HIDDEN CAMS. 412267 www.sauder.com/services Page 9...

  • Page 10: Black 2-1/4" Flat Head Screw

    Slide the END MOLDING (AA) onto the END (A). Line up the groove in the MOLDING over the head of the SCREWS in the END and slide it until it is against the RIGHT FRONT LEG (U). Fasten the RIGHT REAR LEG (W) to the RIGHT END (A). Use three BLACK 2 1/4" FLAT HEAD SCREWS (XX). Page 10 www.sauder.com/services 412267...

  • Page 11: Zz Silver 1-1/8" Flat Head Screw -2

    Repeat this step for the other end of the UPPER LEFT END (B) and both ends of the LOWER LEFT END (C) and BRACE (I) as shown above. Now, fasten the BRACE (I) to UPPER LEFT END (B). Use two SILVER 1-1/8" FLAT HEAD SCREWS (ZZ). 412267 www.sauder.com/services Page 11...
  • Page 12 NOTE: Be sure the CAM SCREWS insert into the holes in the short edges of the LOWER LEFT END (C) and BRACE (I). Fasten the LEFT REAR LEG (X) to the LOWER LEFT END (C) and BRACE (I). Tighten two HIDDEN CAMS. Repeat this step for the LEFT FRONT LEG (V) making sure all HIDDEN CAMS are tight. Page 12 www.sauder.com/services 412267...

  • Page 13: Fff Gold 5/16" Flat Head Screw

    (8 used in this step) Fasten two CABINET RIGHTS (40CA) and two CABINET LEFTS (40CB) to the RIGHT END (A) and UPRIGHT (D). Use eight GOLD 5/16" FLAT HEAD SCREWS (FFF) through holes #1 and #3. 412267 www.sauder.com/services Page 13...

  • Page 14: Yy Silver 2" Flat Head Screw

    Fasten the EXTENSION BLOCK (Z) to the UPRIGHT (D). Use two SILVER 2" FLAT HEAD SCREWS (YY). Fasten the remaining CABINET RIGHT (40CA) and CABINET LEFT (40CB) to the BRACE (I) and EXTENSION BLOCK (Z). Use four GOLD 5/16" FLAT HEAD SCREWS (FFF) through holes #1 and #3. Page 14 www.sauder.com/services 412267...
  • Page 15 Risk of damage or injury. Hidden Cams must be completely tightened. Hidden Cams that are not completely tightened will loosen, and parts may separate. To completely tighten: Arrow Arrow Arrow 210 degrees - Tightened properly 180 degrees - Not tightened! 412267 www.sauder.com/services Page 15...
  • Page 16 Fasten the UPRIGHT (D) to the MODESTY PANEL (G). Use two SILVER 2" FLAT HEAD SCREWS (YY). Fasten the METAL BRACE (TT) to the LEFT LEGS (V and X). Use four BROWN 9/16" LARGE HEAD SCREWS (DDD). Page 16 www.sauder.com/services 412267...
  • Page 17 Maximum Arrow 210 degrees Minimum 190 degrees Fasten the BOTTOM (F) to the UPRIGHT (D). Tighten two HIDDEN CAMS. . Fasten the RIGHT END (A) to the BOTTOM (F) and TOP (E). Tighten four HIDDEN CAMS. 412267 www.sauder.com/services Page 17...

  • Page 18: Tack

    (5 used) (5 used) Push a FOOT (QQ) over the bottom edge of each LEG (U, V, W, X, and Y). With a hammer, tap a TACK GLIDE (LL) through the holes of the FEET (QQ). Page 18 www.sauder.com/services 412267...

  • Page 19: Ggg Nail

    Carefully turn your unit over onto its front edge and lay the BACK (H) over the large opening. Fasten the BACK (H) to your unit using the NAILS (GGG). NOTE: Be sure the BACK is not hanging over the top surface of the TOP. 412267 www.sauder.com/services Page 19...

  • Page 20: Pencil Drawer Front

    Fasten the PENCIL DRAWER FRONT (R) to the DRAWER FRONT BRACKETS (OO). Use two BROWN 9/16” LARGE HEAD SCREWS (DDD). Slide the DRAWER BOTTOM (M) into the grooves in the DRAWER SIDES (D238) and DRAWER FRONT (R). Page 20 www.sauder.com/services 412267...
  • Page 21 Flip the drawer over and insert five CLIPS (JJ) into the groove in the DRAWER BACK (S) and wrap them over the DRAWER BOTTOM (M). Tap a NAIL (GGG) through each CLIP. NOTE: The CLIPS should set in about 1” from the DRAWER SIDES. 412267 www.sauder.com/services Page 21...
  • Page 22 Fasten a DRAWER RIGHT (40CC) and a DRAWER LEFT (40CD) to the DRAWER SIDES (D238). Use four GOLD 5/16" FLAT HEAD SCREWS (SS) through holes #2 and #4. Fasten a BACKPLATE (WW) and KNOB (VV) to the DRAWER FRONT (R). Use two GOLD 1" MACHINE SCREWS (AAA). Page 22 www.sauder.com/services 412267...
  • Page 23 Slide the FILE DRAWER SIDES (D236) onto the FILE DRAWER BACK (D227). Slide the SMALL DRAWER BOTTOM (D792) into the grooves in the FILE DRAWER SIDES and FILE DRAWER BACK. Repeat this step for the other drawer. 412267 www.sauder.com/services Page 23...
  • Page 24 Pull the DRAWER FRONT BRACKETS (MM) apart and slide them into the grooves in the FILE DRAWER SIDES (D236). Fasten the DRAWER FRONT (N) to the DRAWER FRONT BRACKETS. Use four BROWN 9/16" LARGE HEAD SCREWS (DDD). Page 24 www.sauder.com/services 412267...
  • Page 25 Pull the DRAWER FRONT BRACKETS (NN) apart and slide them into the grooves in the DRAWER SIDES (D239). Fasten the DRAWER FRONT (J) to the DRAWER FRONT BRACKETS. Use four BROWN 9/16” LARGE HEAD SCREWS (DDD). 412267 www.sauder.com/services Page 25...
  • Page 26 Fasten a DRAWER RIGHT (40CC) and a DRAWER LEFT (40CD) to the FILE DRAWER SIDES (D236). Use four GOLD 5/16” FLAT HEAD SCREWS (FFF) through holes #2 and #4. Repeat this step for the other drawer. Page 26 www.sauder.com/services 412267...
  • Page 27 (4 used for the PULLS) Push the FILE GLIDES (RR) onto the top edge of the FILE DRAWER SIDES (D236). Fasten the PULLS (SS) to the DRAWER FRONTS (N and J). Use four SILVER 1/2" MACHINE SCREWS (EEE). 412267 www.sauder.com/services Page 27...
  • Page 28 Push a CAM COVER (II) onto each HIDDEN CAM. NOTE: Please read the back pages of the instruction booklet for important safety information. This completes assembly. Clean with your favorite furniture polish or a damp cloth. Wipe dry. Page 28 www.sauder.com/services 412267...
