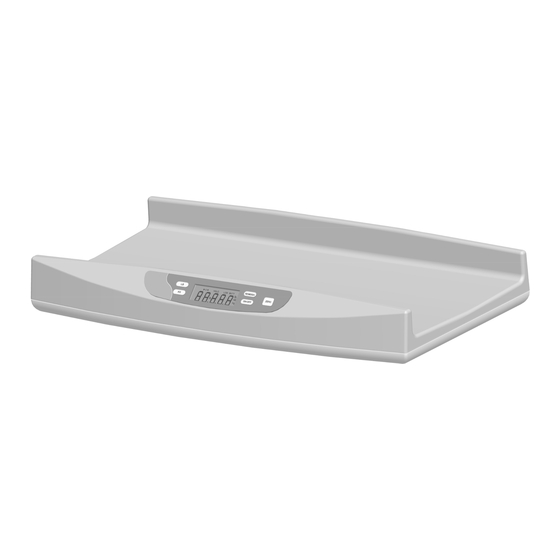

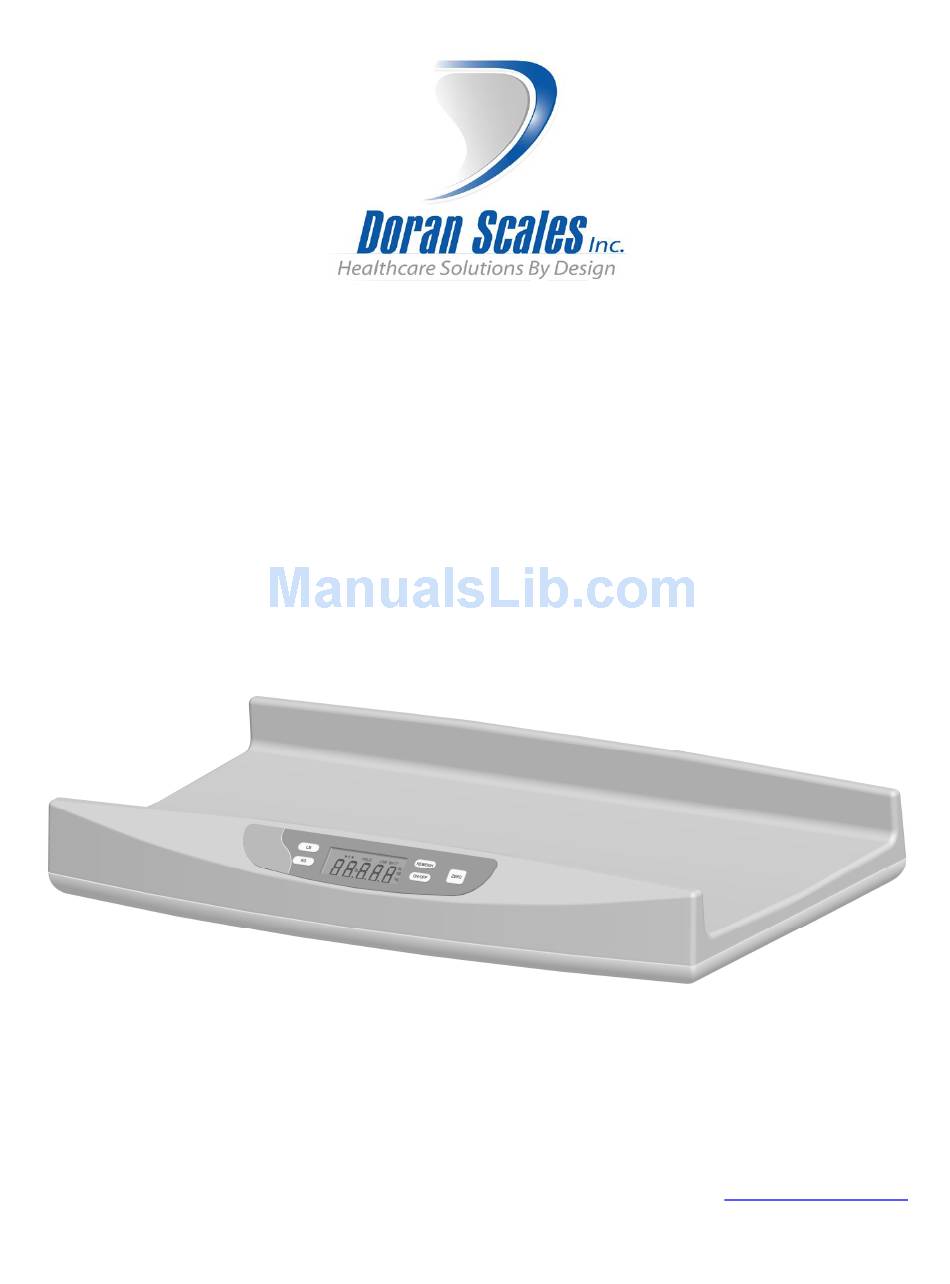

- Page 1 Model DS4100 Infant Scale Instruction Manual Doran Scales, Inc. 1315 Paramount Pkwy Batavia, IL 60510 USA 1-800-264-4107 www.doranscales.com MAN0259 Revision 0.5...
-
Page 3: Table Of Contents
Section 1. Unpacking and Installation ............1 Introduction ........................1 Unpacking ........................1 Cautions and Warnings ....................1 Care & Cleaning......................1 Installation........................2 Battery Installation ....................... 2 Section 2. Scale Operation ................ 3 Display Pushbuttons ....................3 Weighing a Patient....................... 5 Zero Operation...................... -
Page 4: Section 1. Unpacking And Installation
We are dedicated to deliver a superior product that will provide many years of trouble free service. As an ISO9000 registered company, Doran Scales is dedicated to delivering products built with strict compliance to our high quality standards. If you have any questions regarding your scale, please contact Doran Scales, Inc. -
Page 5: Installation
Battery Installation The DS4100 comes with a set of four AA alkaline batteries. These batteries supply a year’s of typical use with the standard Automatic Shutoff Timer settings. The batteries can be accessed on the bottom of the scale. To access the battery compartment, turn the scale upside down and open the battery compartment door. -
Page 6: Section 2. Scale Operation
Section 2. Scale Operation Fig. 2 DS4100 Front Panel Display Pushbuttons The Model DS4100 controls consist of ZERO, ON/OFF, REWEIGH, LB and KG buttons. The display is used to provide weight indications and operator messages indicating scale operation. Power On/Off Press the On/Off button to turn on the scale. - Page 7 Display Annunciators The display annunciators will indicate the scale status. Center of Zero ( Indicates that the scale has an accurate zero reading. Hold Indicates a stable weight has been achieved and held on the display. This indicates an accurate weight has been achieved. Low Batt Indicates when the batteries require replacement.
-
Page 8: Weighing A Patient
Weighing a Patient 1. Press On/Off. The scale will turn on and display a zero weight. 2. Place patient on the scale. 3. When a stable weight is reached the display will lock and the HOLD annunciator will be displayed. 4. -
Page 9: Section 3. Scale Calibration
Section 3. Scale Calibration Two Point Calibration Procedure This calibration procedure is intended to be used when a full set of calibrated weights are not available. When possible, use the multiple point calibration procedure below. CAUTION: Calibrating this scale improperly will void the warranty and will require field service or return of the scale to the factory. -
Page 10: Multiple Point Calibration
Multiple Point Calibration Use this calibration procedure when a full set of calibrated weights is available. This calibration sequence will result in the most accurate calibration possible. CAUTION: Calibrating this scale improperly will void the warranty and will require field service or return of the scale to the factory. 1. -
Page 11: Calibration Troubleshooting
Calibration Troubleshooting If Err 0 appears on the display during step 8, the calibration zero is out of range. Remove all weight from the platform and press LB to perform the zero calibration again. If this error persists, consult the raw counts table below. If ErrSp appears on the display during step 10,12, 14 or 16, the span calibration is out of range. -
Page 12: Section 4. Parameter Setup
Section 4. Parameter Setup The DS4100 offers the ability to change the shutoff timer settings. Parameter settings shown in bold are the default settings. Entering and Exiting Setup Mode To enter setup mode from the front panel, press and hold REWEIGH and then press and hold ZERO. -
Page 13: Start Up Zero
Start Up Zero Scale automatically zeros when the scale is turned on. Scale will not zero when the scale is turned Automatic Shutoff Timer Automatic shutoff timer. The timer controls the period of time the scale stays on after non-use. 10 seconds 30 Seconds 1 minute... -
Page 14: Section 5. Specifications
Section 5. Specifications Scale Dimensions 25” L x 13.75” W x 3.75” H Power 4 AA Alkaline Batteries One year battery life with 10 second Automatic Shutoff Timer setting. Displayed Units lb:oz, kg Capacity 45 lb x 0.2 oz 20 kg x 5 g Construction ABS Plastic Housing Options... -
Page 15: Section 6. Troubleshooting
Section 6. Troubleshooting General Problem Resolution Problem What to Do or Check Weight reading will not repeat or Person or object other than that being scale does not return to zero when weighed is touching the scale. weight is removed. Verify that there is nothing caught in the feet area or interfering with the feet. -
Page 16: Error Messages
Error Messages Error Message What to Do or Check The setup parameters loaded in nonvolatile memory have become corrupted. Er EP If this problem persists, contact Doran Technical Support for assistance. The A/D communication is not detected. Ensure the wire harness was not pinched during assembly. Er Ad If this problem persists, contact Doran Technical Support for assistance. - Page 17 Limited Three Year Warranty Doran Scales, Inc. warrants Model DS4100 to be free from defects in material and workmanship for a period of three (3) years from date of shipment. Any product found to be defective within this time period may be returned to Doran’s factory, freight prepaid, with prior return authorization and proof of purchase showing date of original sale, for repair or replacement at no charge.
