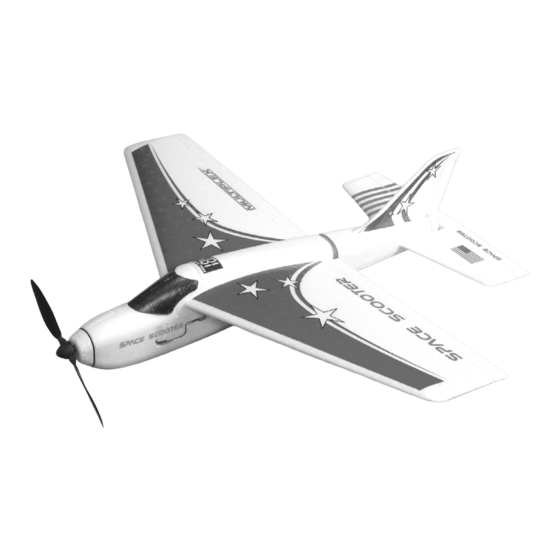

Multiplex Space Scooter Building Instructions
  1. Manuals
  2. Brands
  3. Multiplex Manuals
  4. Toy
  5. Space Scooter
  6. Building instructions

Multiplex Space Scooter Building Instructions

21 4220; 1 3204; 1 3205; 1 3206; 1 3207
Hide thumbs Also See for Space Scooter:

Advertisement

Quick Links

Download this manual
D
Bauanleitung
F
Notice de construction
GB
Building instructions
I
Instruzioni di montaggio
E
Instrucciones de montaje
# 21 4220 KIT Space-Scooter Montagesatz mit Motor und Getriebe
# 1 3204 RTF Space-Scooter 40MHz Europa-Version
# 1 3205 RTF Space-Scooter 35MHz Europa-Version
# 1 3206 RTF Space-Scooter 41MHz Europa-Version
# 1 3207 RTF Space-Scooter 72MHz US-Version
3 ... 6
7 ... 10
11 ... 14
15 ... 18
19 ... 22
1
