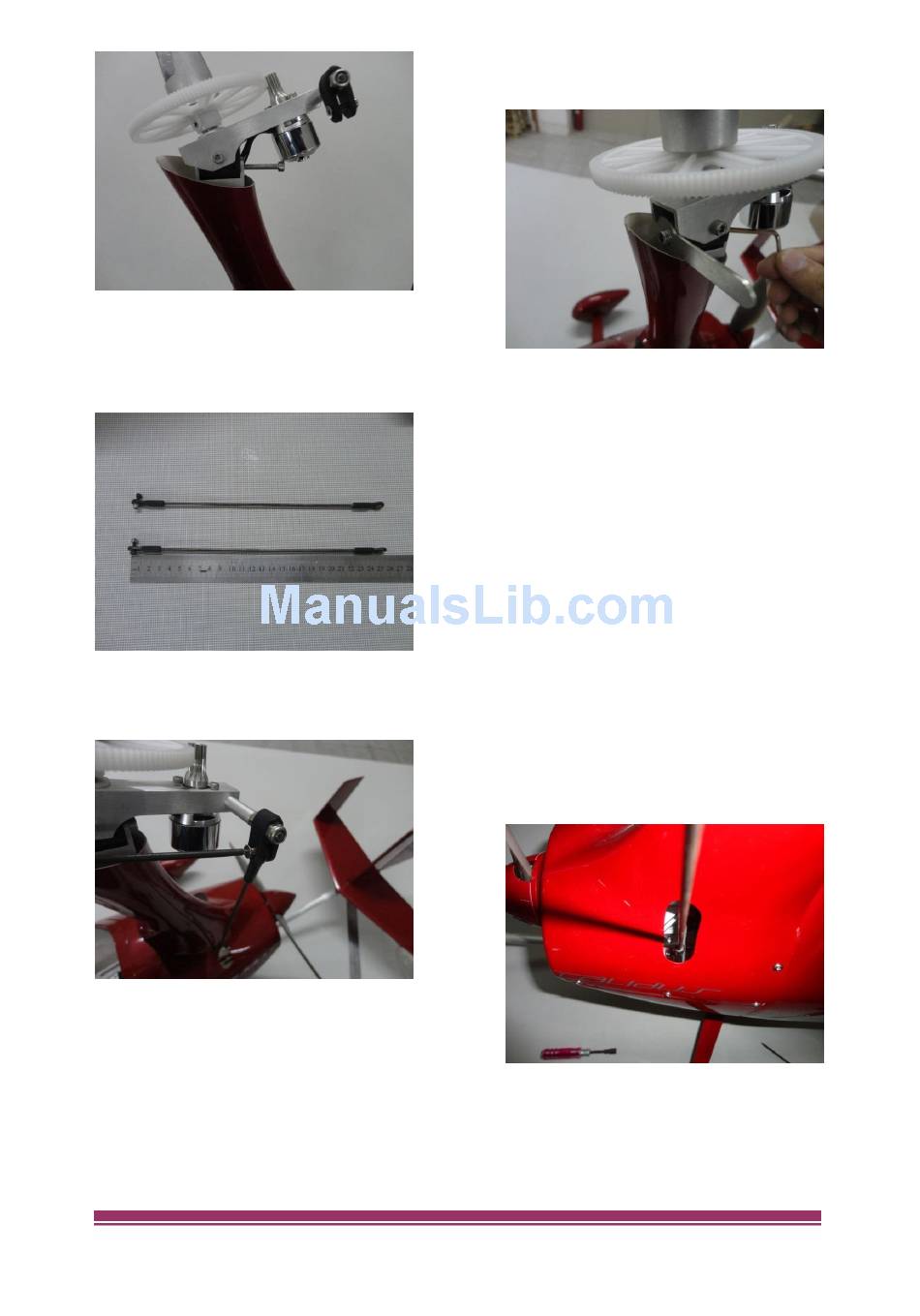

Install the rotor head to cardan frame with one M4*40
screw and locking nut.
Install the pushrod to rotor head horns and servo arms
with M3*12 screws and locking nuts
Anleitung / Manual Hacker Autogyro „Calidus"
© 2013 Hacker Motor GmbH
Modellbau Lindinger GmbH
Modellbau Lindinger GmbH
Montieren Sie den Rotorkopf – Rahmen mit einer
M4x40 Schraube und einer selbstsichernden Mutter.
Die Anlenkungen wurden bereits zusammengebaut,
die Länge wurde eingestellt. Sie können für die
einfachere Montage des Rotorkopfs wieder demontiert
werden.
Rotor head push-rods have been installed and the ball
links distance has been adjusted. They can be removed
for easier installation of the rotor head.
Befestigen Sie die die Anlenkungen mit M3x12
Schrauben und selbstsichernden Muttern am
Rotorkopf und den Servohebel.
e-Mail: office@lindinger.at
Seite / page 26
