System description

The thermal camera makes good thermal pictures and allows determination of temperatures so that it can
be used in multiple areas and industries. The efficiency in industrial fields can also be optimised by using
this camera.
4.1

Battery and charger

It is recommended to charge the instrument immediately when the battery symbol is displayed on the
screen. Delivery content includes two sets of batteries and one charger. The instrument may only be used
with the delivered batteries.
4.1.1

Charge battery

- Insert the batteries into the device correctly.
- Connect the charger to the power socket. When in charging mode, a red LED will flash. When the
instrument is fully charged, the LED will be green.
- Charging takes approximately 4 hours.
4.2

Direct charging

It is possible to charge the batteries with the delivered adaptor directly. This will take about 5 hours.
During that time, an orange LED will flash and it will turn green when the instrument is fully charged.
4.3

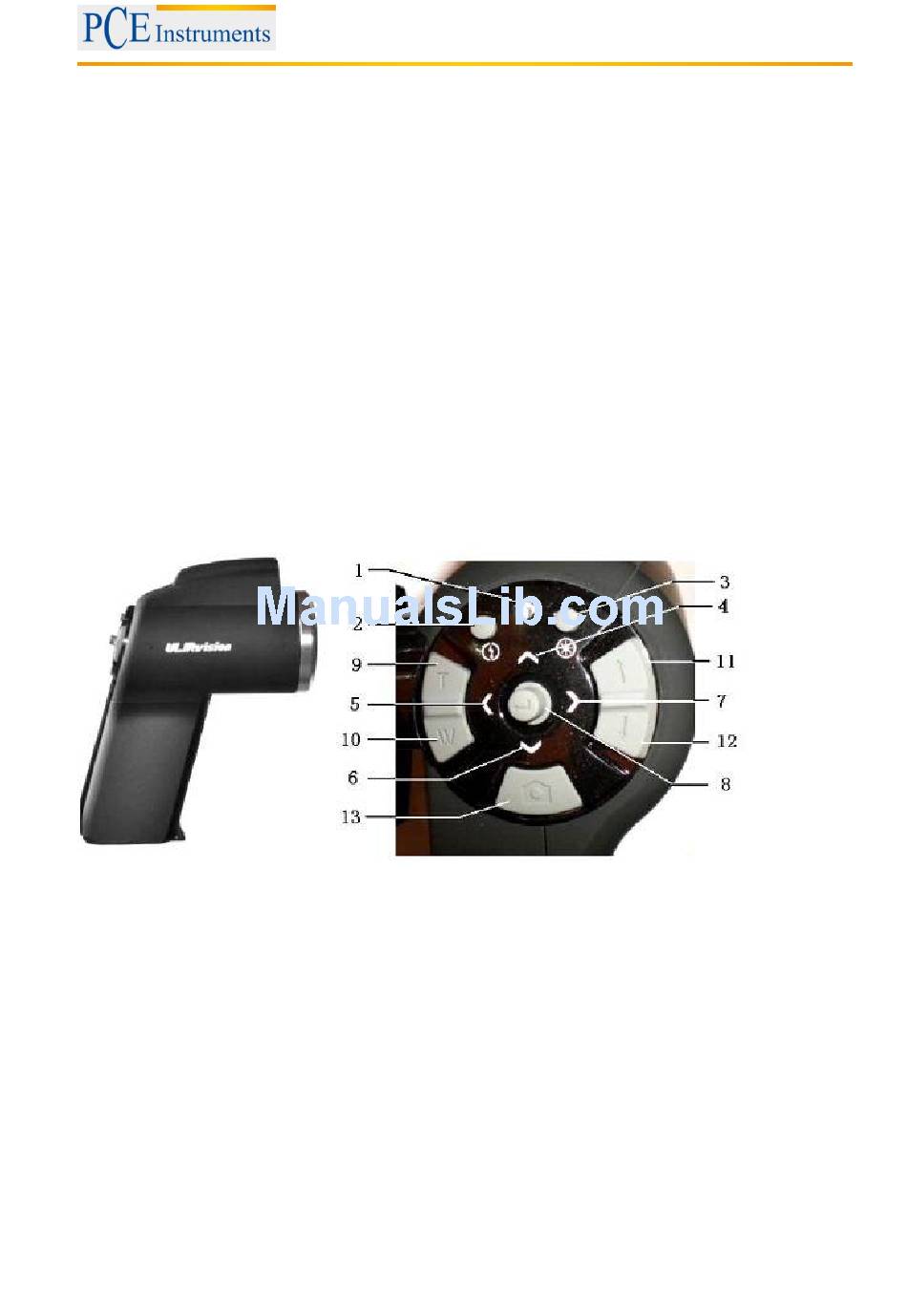

Controls

1. Power LED
2. Hot key 1:
Press for auto focus. Press and hold to activate / deactivate LED.
3. Hot key 2:
Press to switch between objects to be measured (spot, line, area) and fusion zones and also to
set the overlay temperature, the colour code and the upper and lower temperature limits.
Press and hold the key to activate / deactivate the laser pointer.
4. 5., 6., 7: direction keys
˂,˃,˄,˅ have different functions in the different modes. In main menu the keys have the function
of scrolling through the menu and to adjust the slide-bar value. In real-time-mode the keys allow
direct access.
Manual
7
