4.14 Submenus

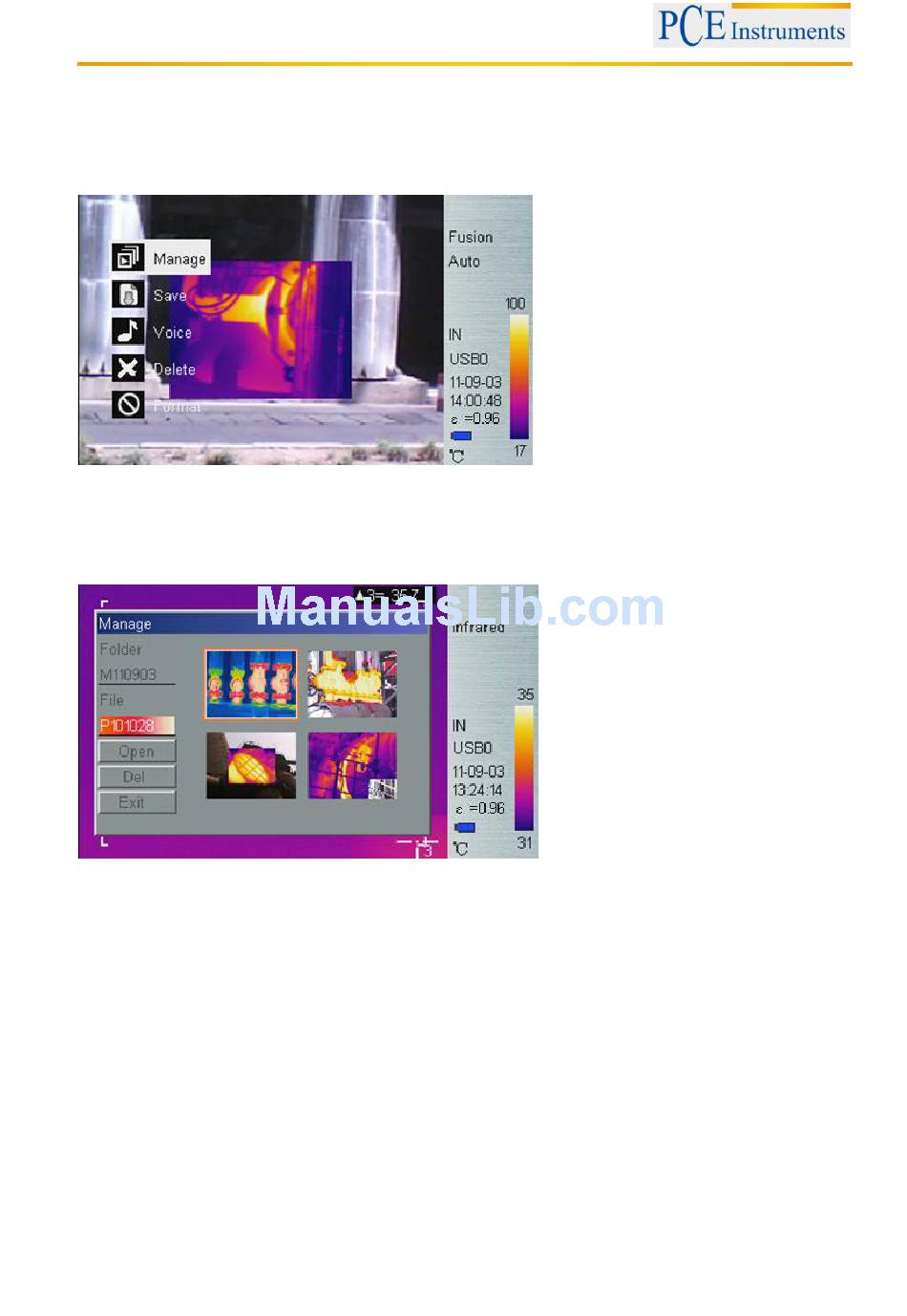

4.14.1 File

Use the file menu to save, view and delete thermal images. Also you can add audio comments or format
the storage.

4.14.2 Manage

Choose "manage submenu" to get an overview of the thermal pictures. Add audio comments or edit them.
Thermal images can also be deleted.
If no directory exists, it will be added automatically during the storage of the images. The directory name
th
is MYYMMDD where YYMMDD stand for year, month, day. As an example: The 26 September 2012 will
have the file name M120926. All taken pictures will be saved in that directory. The name of the file will be
saved following the scheme PHHMMSS which stands for hours, minutes and seconds. All names refer to
the time set in the system.
In the window where you can manage the files you can use ˄ and ˅ to select the objects. Use ˂ and ˃ to
switch between the different directories and files. Chosen objects are highlighted. After you have chosen
a thermal image you need to press the Enter key to view the image. Press Enter again to delete the
image or press Exit to leave the submenu.
