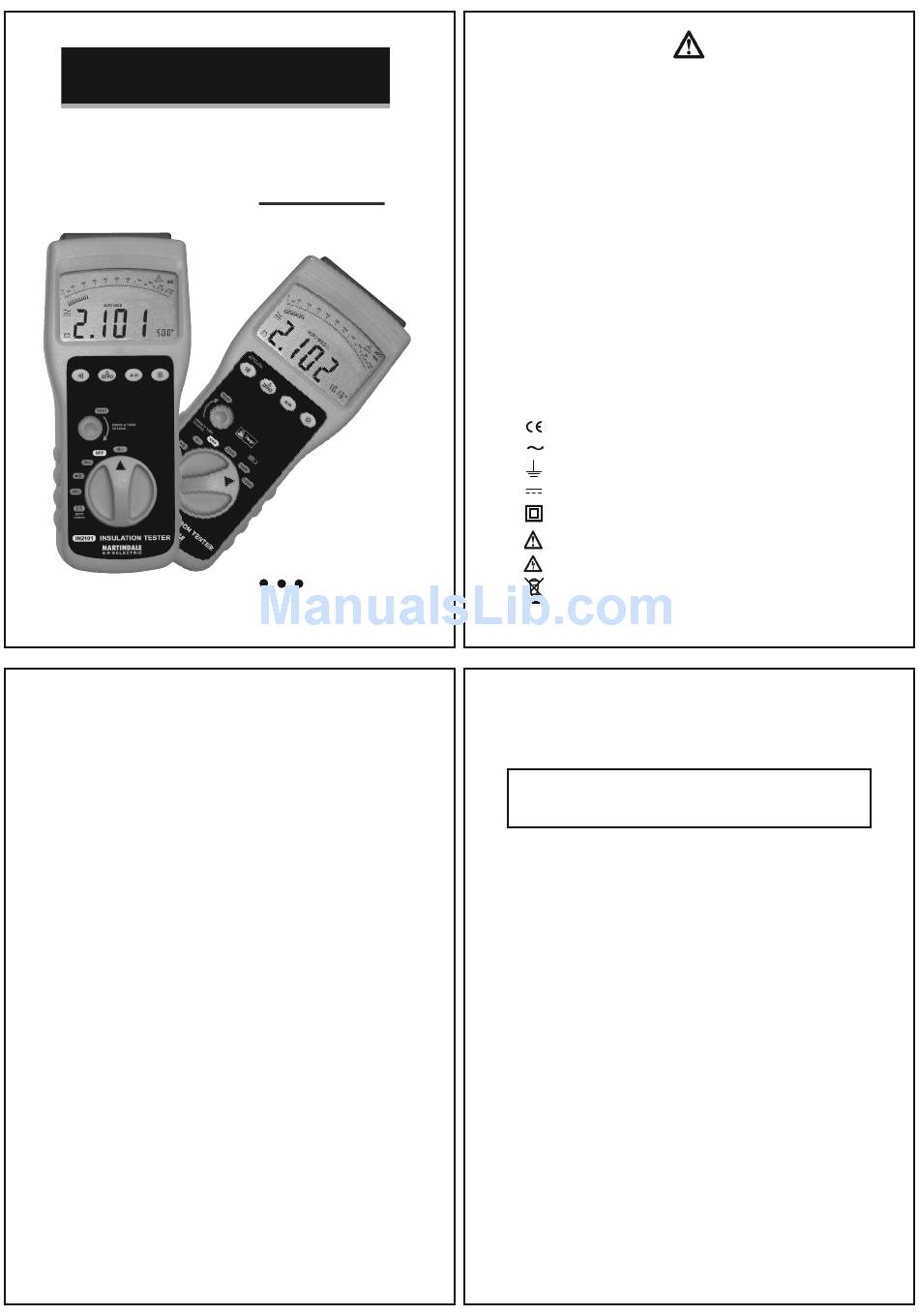

MARTINDALE IN2101 Instruction Manual

IN2101 / IN2102
INSULATION TESTER
Thank you for buying one of our products. For safety and full
understanding of its benefits please read this manual before
use. Technical support is available from 01923 441717 and
support@martindale-electric.co.uk.
CONTENTS
1 Introduction
1.1 Inspection
1.2 Description
2 Product Specific Safety Information
3 Operation
3.1 Installing or Replacing Batteries
3.2 Replacing Fuses
3.3 How it Works
4 Maintenance
4.1 Calibration
4.2 Cleaning
4.3 Repair & Service
4.4 Storage Conditions
5 Warranty
Specifications
I
NSTRUCTION
M
ANUAL
MARTINDALE
E L E C T R I C
Trusted by Professionals
1
1
1
3
5
5
5
6
9
9
9
9
10
11
GENERAL SAFETY INFORMATION: Always read before proceeding.
Warning
These instructions contain both information and warnings that are necessary for
the safe operation and maintenance of this product. It is recommended that you
read the instructions carefully and ensure that the contents are fully understood.
Failure to understand and to comply with the warnings and instructions can result
in serious injury, damage or even death.
In order to avoid the danger of electrical shock, it is important that proper safety
measures are taken when working with voltages exceeding 30V AC RMS, 42V AC
peak or 60V DC.
This product must only be used by a competent person capable of interpreting the
results under the conditions and for the purposes for which it has been
constructed. Particular attention should be paid to the Warnings, Precautions and
Technical Specifications. Always check the unit is in good working order before
use and that there are no signs of damage to it. Do not use if damaged.
Where applicable other safety measures such as use of protective gloves, goggles
etc. should be employed.
Please keep these instructions for future reference. Updated instructions and
product information are available at: www.martindale-electric.co.uk/instruct
REMEMBER: SAFETY IS NO ACCIDENT
MEANING OF SYMBOLS:
equipment complies with relevant EU Directives
alternating current (ac)
earth (ground) terminal
direct current
equipment protected by double or reinforced insulation (Class II)
caution - risk of danger & refer to instructions
caution - risk of electric shock
end of life disposal of this equipment should be
in accordance with relevant EU Directives
1. INTRODUCTION
This manual contains information and warnings which must be
followed to ensure safe operation of the IN2101/2.
WARNING
READ "SAFETY INFORMATION" BEFORE USING THIS METER
1.1 Inspection
Examine the shipping carton for any sign of damage. Inspect the
unit and any accessories for damage. If there is any damage then
consult your distributor immediately.
You should have the following items:
1. IN2101 or IN2102
2. TL47A lead set
3. Instruction manual
4. Protective carry case with strap
5. Six LR6 alkaline batteries
6. Spare fuse (located in battery compartment)
1.2 Description

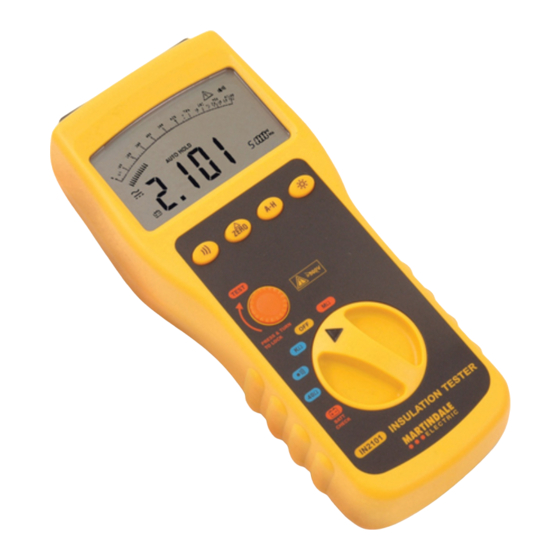

The IN2101/2 Digital Insulation and Continuity Tester is designed
to perform testing in accordance with international standards,
including BS7671. Insulation testing can be undertaken at 500V
DC (IN2101) or 250/500/1000V DC (IN2102). The tester is
powered by six 1.5V alkaline batteries type LR6.
replace batteries refer to section 3.1
1
To install or
