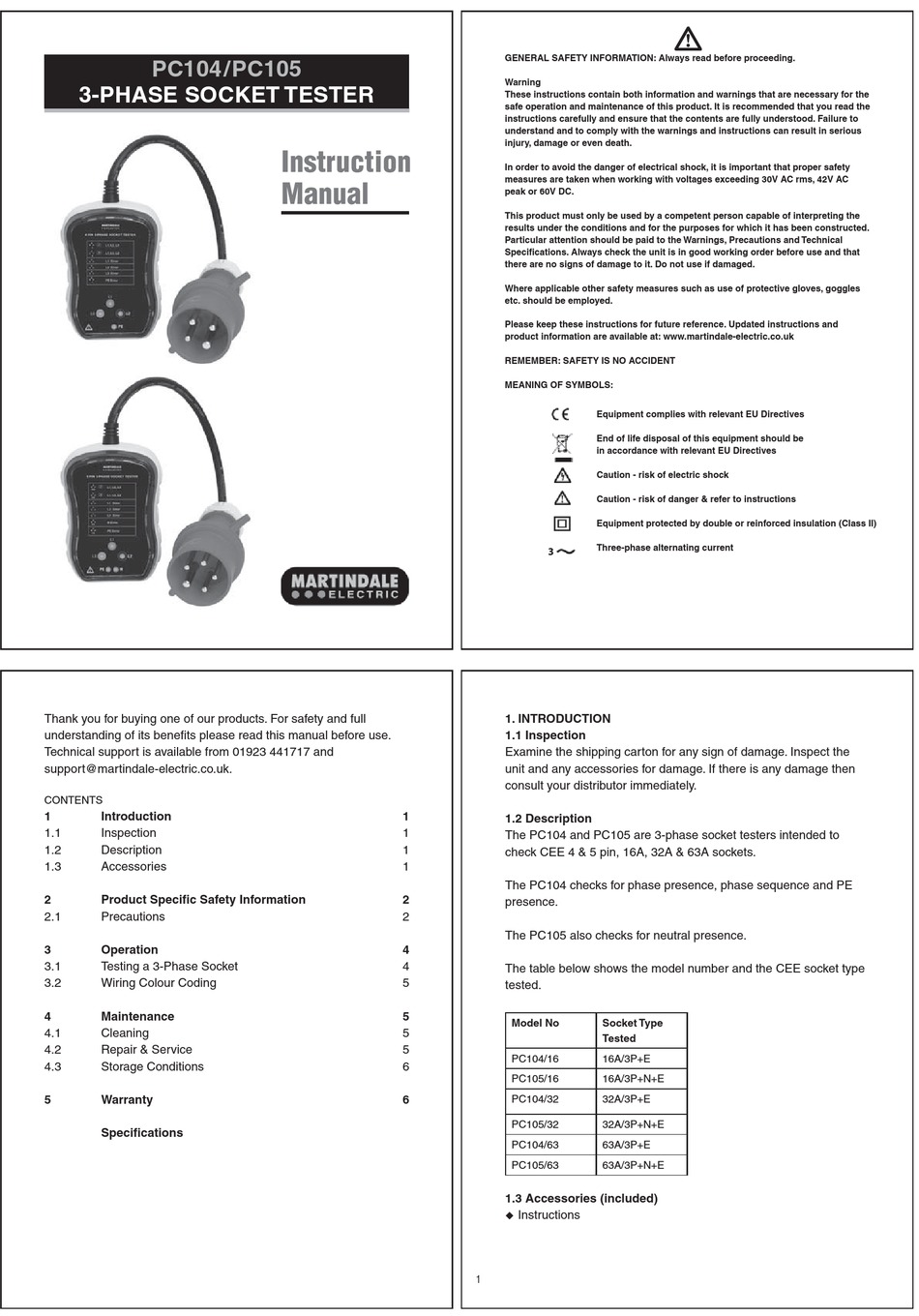

MARTINDALE PC104 Instruction Manual

PC104 /PC105
3-PHASE SOCKET TESTER
Thank you for buying one of our products. For safety and full
understanding of its benefi ts please read this manual before use.
Technical support is available from 01923 441717 and
support@martindale-electric.co.uk.
CONTENTS
1 Introduction
1.1 Inspection
1.2 Description
1.3 Accessories
2 Product Specifi c Safety Information
2.1 Precautions
3 Operation
3.1 Testing a 3-Phase Socket
3.2 Wiring Colour Coding
4 Maintenance
4.1 Cleaning
4.2 Repair & Service
4.3 Storage Conditions
5 Warranty
Specifi cations
Instruction
Manual
23/01/2013 08:19:58 PC104 PC105 instructions rev1 revised.indd 3
1
1
1
1
2
2
4
4
5
5
5
5
6
6
GENERAL SAFETY INFORMATION: Always read before proceeding.
Warning
These instructions contain both information and warnings that are necessary for the
safe operation and maintenance of this product. It is recommended that you read the
instructions carefully and ensure that the contents are fully understood. Failure to
understand and to comply with the warnings and instructions can result in serious
injury, damage or even death.
In order to avoid the danger of electrical shock, it is important that proper safety
measures are taken when working with voltages exceeding 30V AC rms, 42V AC
peak or 60V DC.
This product must only be used by a competent person capable of interpreting the
results under the conditions and for the purposes for which it has been constructed.
Particular attention should be paid to the Warnings, Precautions and Technical
Specifi cations. Always check the unit is in good working order before use and that
there are no signs of damage to it. Do not use if damaged.
Where applicable other safety measures such as use of protective gloves, goggles
etc. should be employed.
Please keep these instructions for future reference. Updated instructions and
product information are available at: www.martindale-electric.co.uk
REMEMBER: SAFETY IS NO ACCIDENT
MEANING OF SYMBOLS:
Equipment complies with relevant EU Directives
End of life disposal of this equipment should be
in accordance with relevant EU Directives
Caution - risk of electric shock
Caution - risk of danger & refer to instructions
Equipment protected by double or reinforced insulation (Class II)
Three-phase alternating current
3
1. INTRODUCTION
1.1 Inspection
Examine the shipping carton for any sign of damage. Inspect the
unit and any accessories for damage. If there is any damage then
consult your distributor immediately.
1.2 Description

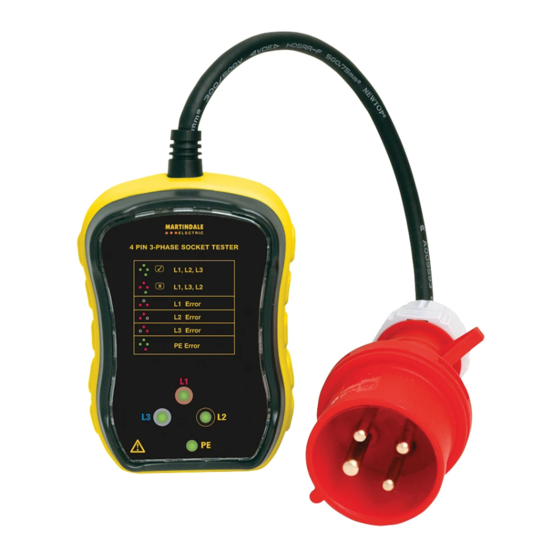

The PC104 and PC105 are 3-phase socket testers intended to
check CEE 4 & 5 pin, 16A, 32A & 63A sockets.
The PC104 checks for phase presence, phase sequence and PE
presence.
The PC105 also checks for neutral presence.
The table below shows the model number and the CEE socket type
tested.
Model No Socket Type
Tested
PC104/16 16A/3P+E
PC105/16 16A/3P+N+E
PC104/32 32A/3P+E
PC105/32 32A/3P+N+E
PC104/63 63A/3P+E
PC105/63 63A/3P+N+E
1.3 Accessories (included)
‹ Instructions
1
