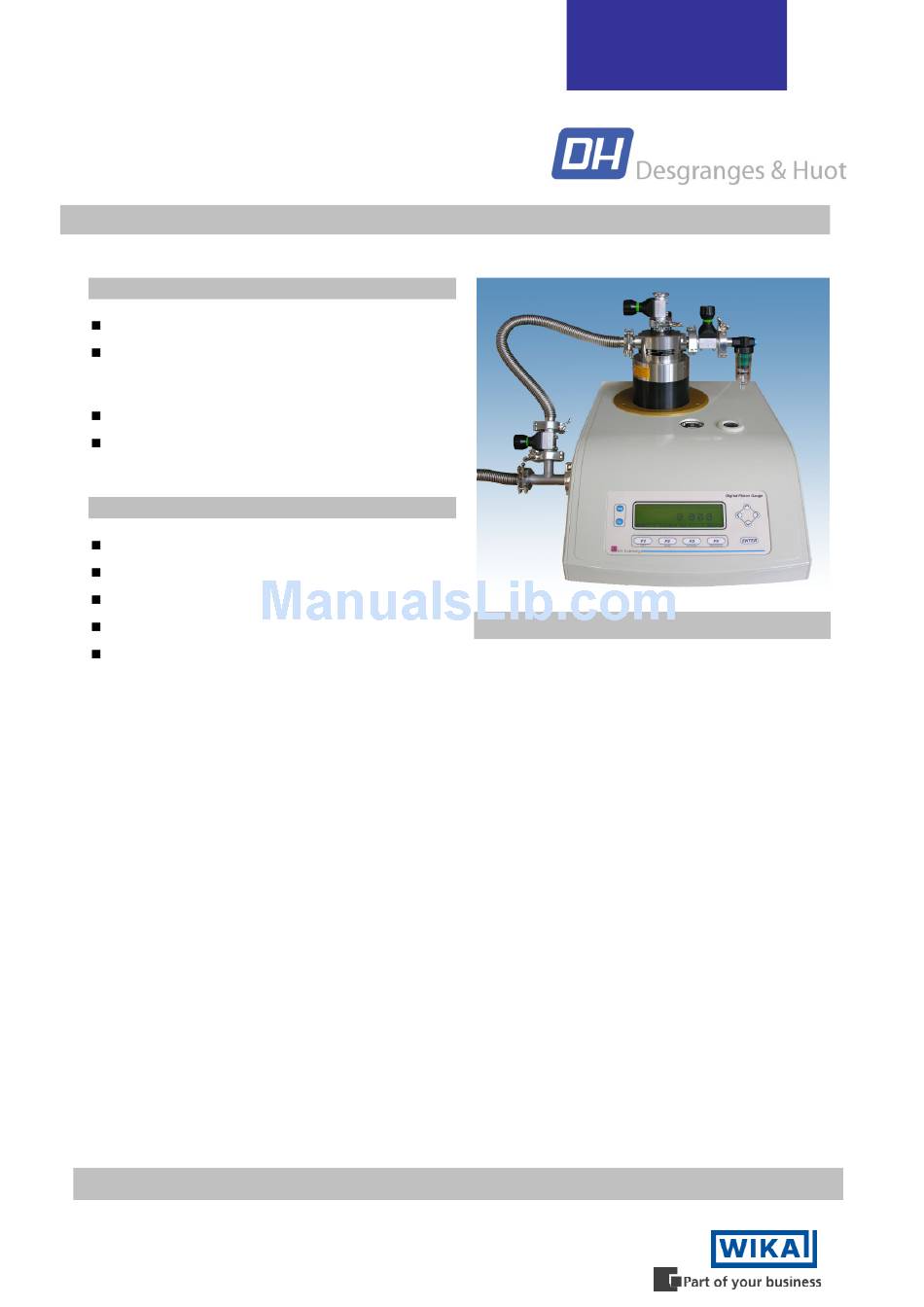

Digital Pressure Standard
Model CPD8000

Applications

High level Digital Primary standard.
Reference instrument for testing, adjusting and
calibrating pressure measuring instruments in
factories and calibration laboratories.
Unique working principle.
Self-contained, complete system also suitable for
on-site measurements/calibrations

Special Features

Absolute & gauge
Resolution down to 1 ppm
Several ranges up to 5 MPa
Accuracy down to 20 ppm of reading
Perfect for automatic calibration system.

Description

A unique concept
The CPD8000 measuring principle lies on the principle of
the pressure balances and is based on the fundamental
equation which defines pressure: P = F/A with P as a
pressure, F a force and A an effective area.
CPD8000 is a worldwide exclusivity combining two high
level technologies:
Best available piston cylinder assemblies; whose
effective area A is perfectly known
High accuracy force cell which measure the force F.
CPD8000 is defined as a digital pressure balance and is a
high accuracy pressure measurer.
Page 1 of 8
Calibration Technology
Desgranges & Huot WIKA Data Sheet CPD8000 04/2012

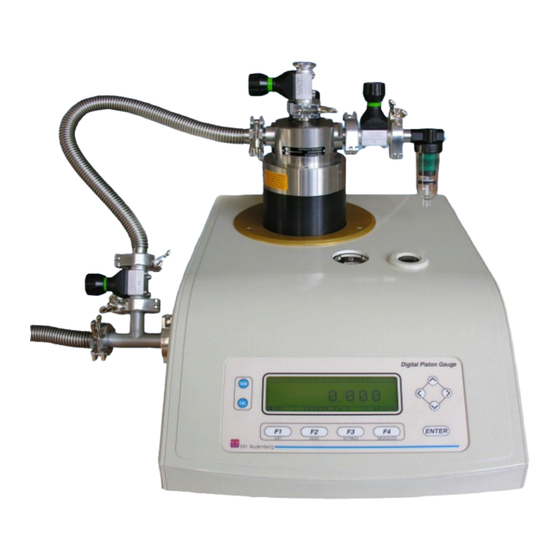

CPD8000-A fitted with low pressure head

Primary principle

As a result, the CPD8000 measuring principle is a
primary principle; it associates the measurement
accuracy and reliability of fundamental pressure
standards with the ease of use of automatic digital
instruments.

Easy of use

Model CPD8000 offers same high accuracy as a high
end pressure primary standard with the benefits of:
No weights manipulation
Built-in reference mass for auto-calibration
Displaying of full corrected pressure
Desgranges & Huot WIKA Data Sheet CPD8000 04/2012
