Russell Hobbs RH1916 Instruction Manual

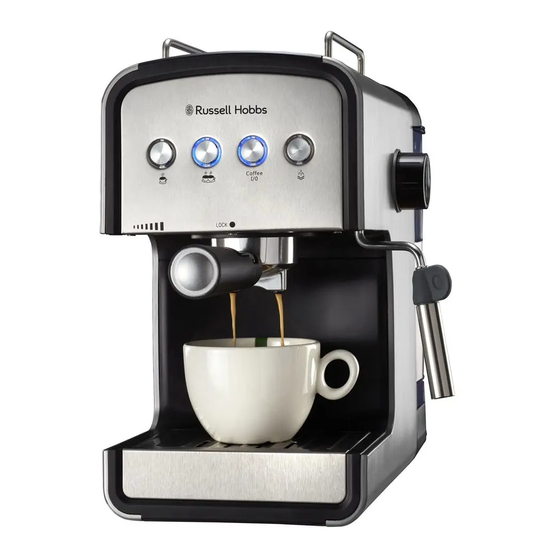

Nero espresso coffee maker
Hide thumbs

Advertisement

Table of Contents

INSTRUCTIONS AND WARRANTY
MODEL NO. RH1916
RUSSELL HOBBS NERO ESPRESSO COFFEE MAKER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RH1916 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Russell Hobbs RH1916

Summary of Contents for Russell Hobbs RH1916

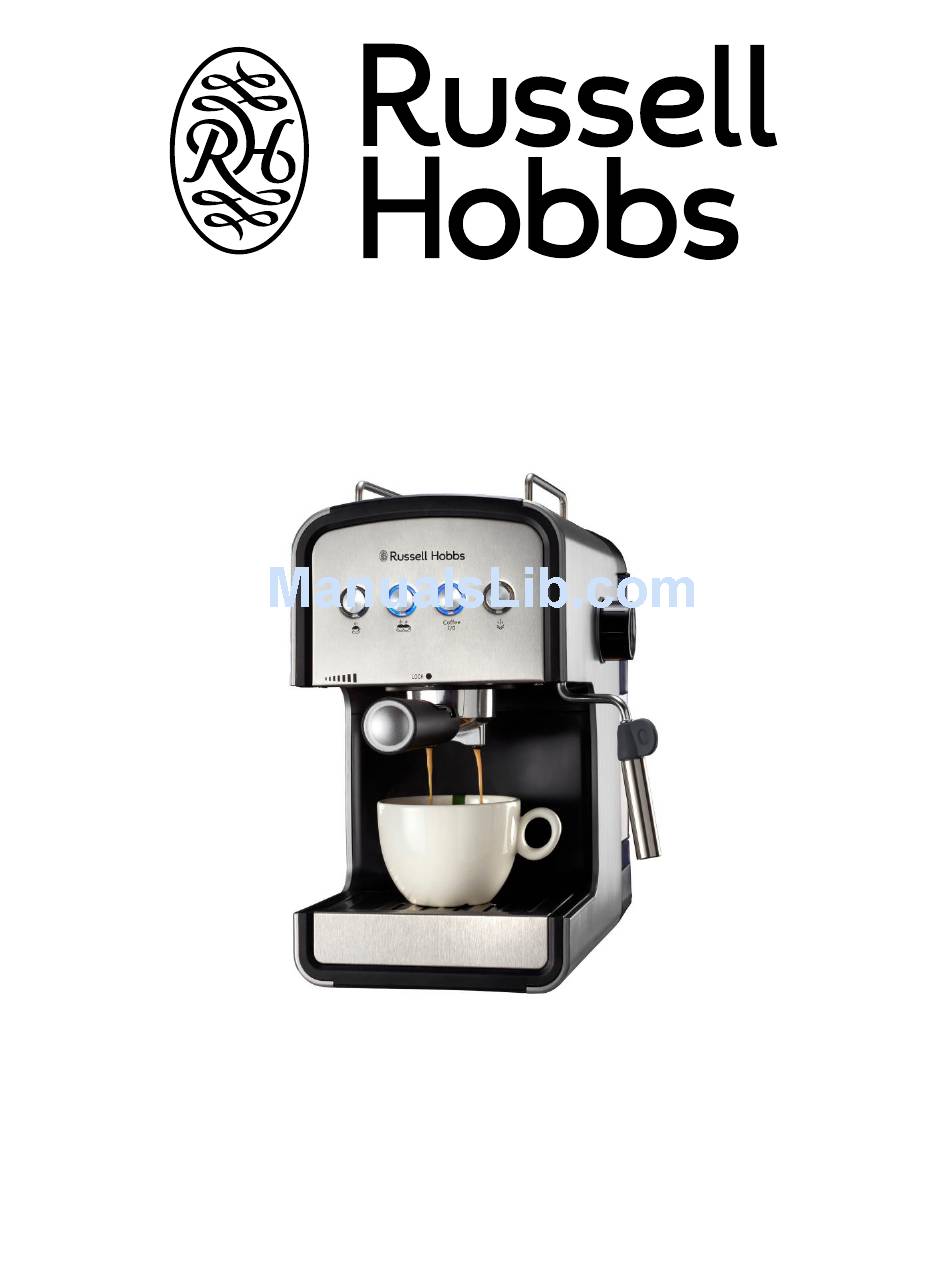

  • Page 1 INSTRUCTIONS AND WARRANTY MODEL NO. RH1916 RUSSELL HOBBS NERO ESPRESSO COFFEE MAKER...
  • Page 2 Congratulations on purchasing our Russell Hobbs Nero Espresso Coffee Maker. Each unit is manufactured to ensure safety and reliability. Before using this appliance for the first time, please read the instruction manual carefully and keep it for future reference. FEATURES OF THE RUSSELL HOBBS NERO ESPRESSO COFFEE MAKER •...

  • Page 3: Important Safeguards

    IMPORTANT SAFEGUARDS When using any electrical appliance, basic safety precautions should always be followed including the following: 1. Please read the instructions carefully before using any appliance. 2. Always ensure that the voltage on the rating label corresponds to the mains voltage in your home.
  • Page 4 17. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven. 18. Keep the appliance and cord away from direct radiant heat from the sun, from damp, from sharp edges and other dangers.
  • Page 5 35. Do not place the unit on a hot surface. 36. It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food. 37. Pump Espresso coffee makers use high pressures to produce hot coffee and steam. It is absolutely necessary to keep the brew head and steam wand clean and free from debris or blockages for health and safety purposes.

  • Page 6: Parts Diagram

    PARTS DIAGRAM 1. Single espresso button 2. Double espresso/ two cup button 3. ON/ OFF button 4. Steam activation button 5. Drip tray 6. Cup holder 7. Water reservoir/ water tank cover 8. Water reservoir/ water tank 9. Steam control dial 10.
  • Page 7 Proper care and maintenance will ensure the long life of the Russell Hobbs Nero Espresso Coffee Maker and its reliable/ consistent operation. Save these instructions and refer to them often for cleaning and care tips.

  • Page 8: Selecting The Right Coffee

    SELECTING THE RIGHT CUP Before preparing your beverage, please make sure to select the right cup size according to the following Barista ratio’s table: SELECTING THE RIGHT COFFEE THE COFFEE The coffee should be freshly ground and dark roasted. If not, this will affect the outcome and taste of your coffee.

  • Page 9: Before The First Use

    If the grind is too fine, the water will not flow through the coffee even under pressure. These grinds look like powder and feel like flour when rubbed between fingers. If the grind is too coarse, the water flows through the coffee too fast, preventing a full-flavoured extraction.
  • Page 10 Wash the water tank, the porta-filter, the two crema filters and measuring spoon in a mixture of mild detergent and water. Rinse each component thoroughly and buff dry with a clean cloth. Before first use, we recommend that you prime the coffee maker and clean out the internal components of the coffee maker before first use to ensure all manufacturing dust and residues are removed.
  • Page 11 g. Now turn the steam dial towards the back. Note: There may be noise while the pump is in operation - it is normal) h. The button indicator light will flash while the coffee maker is preheating. It takes approximately 2 (two) minutes to preheat. Once the machine has finished preheating, the indicator light will stop flashing and all indicator lights should turn a solid colour.

  • Page 12: Preparing Espresso

    SELECT THE DESIRED FUNCTION PREPARING ESPRESSO 1. Press the SINGLE ESPRESSO button once to brew one single shot. OR press the DOUBLE ESPRESSO button twice to brew a double shot. OR press and hold the SINGLE ESPRESSO button for 3 seconds to customize the brewing amount to your preference.

  • Page 13: Making Hot Water

    position). Wait until the green indicator light illuminates and turn the steam control dial in an anti- clockwise direction to release steam again. 8. Pour the frothed milk into the espresso previously prepared. 9. Your cappuccino is now ready to enjoy! 10.

  • Page 14: Cleaning And Maintenance

    PRODUCING STEAM TO HEAT LIQUIDS The steam wand (without the frothing device) can be used to make hot beverages like hot chocolate, water or tea. 1. Make sure that the steam button is set to the “OFF” or “0” position. 2.

  • Page 15: Cleaning The Water Tank

    3. Remove the porta-filter and discard the coffee grounds. Wash both the porta-filter and crema filter with warm soapy water, rinsing them well. Do not wash the porta-filter or crema filters in the dishwasher. 4. Wipe the lower part of the brew head in the coffee maker with a damp cloth or paper towel to remove any coffee grounds/ residues that may be left over.
  • Page 16 on the surface of the brew head. The frequency of cleaning depends upon the hardness of the water used. The following table will provide you with a guideline for suggested cleaning intervals. TO DESCALE THE WATER TANK: 1. Fill the water tank with fresh, undiluted white household vinegar. 2.

  • Page 17: Storing The Appliance

    8. Now turn the steam dial towards the back. Note: There may be noise while the pump is in operation - it is normal) 9. The button indicator light will flash while the coffee maker is preheating. It takes approximately 2 (two) minutes to preheat.

  • Page 18: Changing The Plug

    - Consult the retailer for possible repair or replacement. If the retailer fails to resolve the problem and you need to return the appliance, make sure that:  The unit is packed carefully back into its original packaging.  Proof of purchase is attached. ...

  • Page 19: Troubleshooting

    TROUBLE SHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS Coffee does not dispense 1. No water in water tank. 1. Add water. from the porta-filter. 2. The coffee grind is too fine. 2. Replace the ground coffee with medium ground coffee. 3. There is too much ground 3.
  • Page 20 2. The milk is not cold 2. Chill milk prior to making enough. cappuccino. 3. The steam wand is 3. Follow the instructions to blocked. clean the steam wand. 4. Preheating/ priming has 4. Please wait a few not yet finished. moments and try again.

  • Page 21: Recipes To Get You Started

    RECIPES TO GET YOU STARTED “Iced” Latte Double shot of espresso 90ml fruit flavoured syrup Cold Milk Begin by filling up a 355ml (12-ounce) glass with ice. Then add the espresso, syrup and cold milk. # This is a great alternative to hot drinks for summer time. Café...
  • Page 22 Café Latte Double shot espresso 118-148ml steamed milk A café latte has no frothed milk, just velvety smooth steamed milk. Flavours can be added to vary the taste. # In the summer, you may want to add raspberry syrup, while caramel or hazelnut flavours may be a nice addition for a cup of latte on a wintery day.
  • Page 23 IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED. W A R R A N T Y Home of Living Brands (Pty) Limited warrants to the original purchaser of this product (“the customer”) that this product will be free of defects in quality and workmanship which under normal personal, family or household use and purpose may manifest within a period of 1 (one) year from the date of purchase (“warranty period”).
