WIRING & SPEAKER INSTALLATION

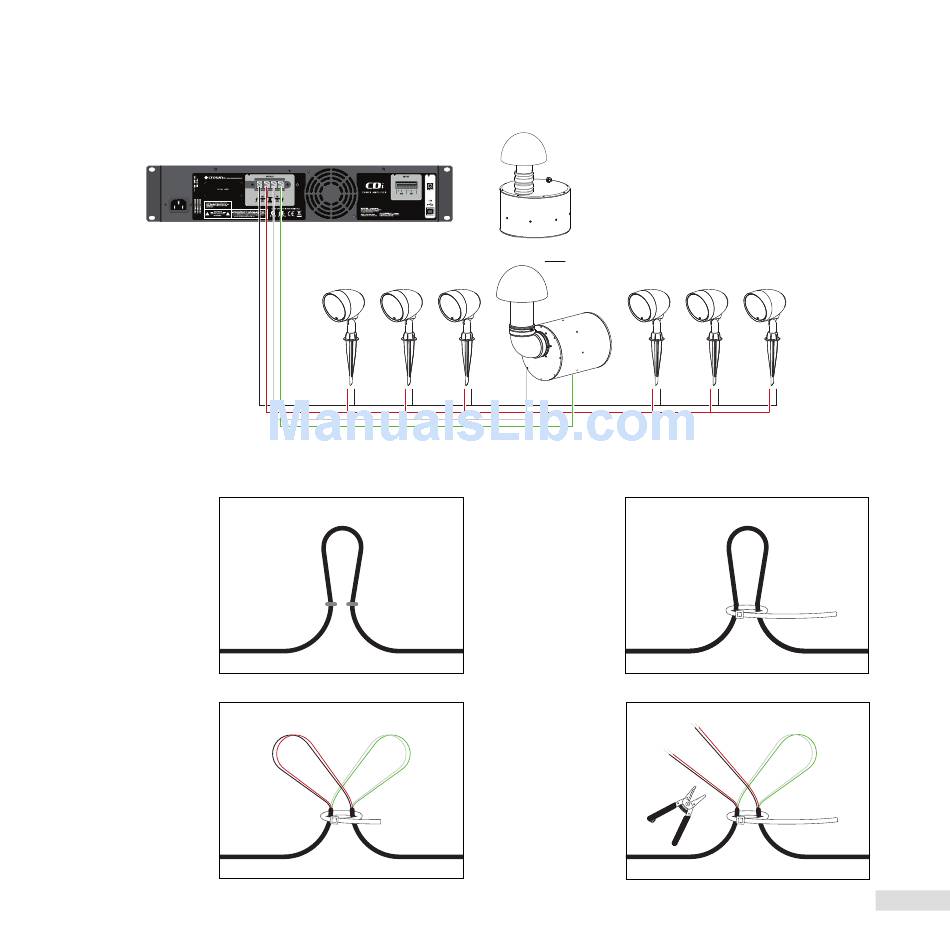

Mono Setup Using 4 Conductor Burial Cable & Crown Amplifier

Preparing the 4 Conductor Burial Cable

1 . Starting
with the first
speaker and
every speaker/
sub that
comes after,
create a loop
approximately
6" in length .
3 . Use a Round
Cable Stripper
to remove the
outside protective
cable jacket to
Wires for
expose the four
Speaker
color-coded
red (+) &
wires . Separate
black (-)
the wire loops
as shown .
Mono
Mono
Mono
2 . Recommended:
4 . Cut the red (+)
Wires for
Subwoofer
white (+) &
green (-)
GOSW10
OR
Mono
GOSW12
Use a wire tie
(not included)
to keep the wire
loop intact and
act as a strain
relief .
and black (-)
wires with cable
strippers and
strip off 1 inch
(25 .4mm) of
insulation from
the ends if the
wires to expose
the copper
conductor .
Mono
Mono
EN |
6
