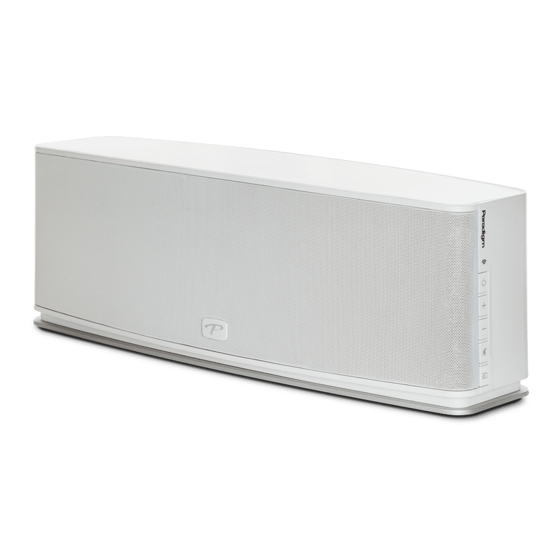

Paradigm PW 800 Owner's Manual

Premium wireless series
Hide thumbs Also See for PW 800:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PW 800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Paradigm PW 800

Summary of Contents for Paradigm PW 800

  • Page 1 OWNER’S MANUAL...
  • Page 2 PARADIGM and ANTHEM are registered trademarks of protection against harmful interference in a residential Paradigm Electronics Inc. PW 800, PW 600, PW AMP, ARC installation. This product generates, uses, and can radiate radio are trademarks of Paradigm Electronics Inc. Copyright frequency energy and, if not installed and used in accordance ©...

  • Page 3: Table Of Contents

    PW 800 Premium Wireless Speaker ........4...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 11. Only use attachments/accessories specified by the manufacturer. 2. Keep these instructions. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. 3. Heed all warnings. When a cart is used, use caution when moving the cart/ 4.

  • Page 5: Important Safety Information

    LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS. • TO COMPLETELY DISCONNECT THIS APPARATUS WARNING! Do not use your Paradigm product(s) FROM THE AC MAINS, DISCONNECT THE POWER outside of the country of original sale—voltage SUPPLY CORD PLUG FROM THE AC RECEPTACLE.

  • Page 6: What's In The Box

    WHAT’S IN THE BOX … PW 800 Premium Wireless Speaker ™ 1. Paradigm PW 800 Speaker 4. ARC Microphone 2. 6’ (1.8 m) Power Cable 5. 6.5’ (2 m) ARC ™ Microphone USB Cable 3. 6’ (1.8 m) Ethernet Cable...

  • Page 7: Pw 600 Premium Wireless Speaker

    Paradigm Premium Wireless Series Owner’s Manual PW 600 Premium Wireless Speaker ™ 1. Paradigm PW 600 Speaker 4. ARC Microphone 2. 6’ (1.8 m) Power Cable 5. 6.5’ (2 m) ARC ™ Microphone USB Cable 3. 6’ (1.8 m) Ethernet Cable...

  • Page 8: Pw Amp Premium Wireless Amplifier

    WHAT’S IN THE BOX … (cont’d …) PW AMP Premium Wireless Amplifier ™ 1. Paradigm PW AMP 4. ARC Microphone 2. 6’ (1.8 m) Power Cable 5. 6.5’ (2 m) ARC ™ Microphone USB Cable 3. 6’ (1.8 m) Ethernet Cable...

  • Page 9: Network Requirements

    • If you plan to use the DTS Play-Fi App on an Android network supporting 802.11b may be used, but it will effectively iOS device or you are setting up a Paradigm product for Wi-Fi ® stream to only one device equipped with DTS Play-Fi streaming, you will need a wireless router.

  • Page 10: Features & Functions

    Android apps. • Your Paradigm product has the following volume level up or down. rear input: 3.5 mm Analog Input (PW 800 Wi-Fi Indicator ( and PW 600) OR RCA Analog Input (PW Mute Button ( ): AMP).

  • Page 11: Controls & Connections

    Paradigm Premium Wireless Series Owner’s Manual CONTROLS & CONNECTIONS PW 800 Premium Wireless Speaker 120V 2A 60Hz PW 800 Sub Out Analog In Wi-Fi Setup Update Wi-Fi Indicator Power AC Power 3.5 mm (Mains) Analog Ethernet Volume Up Input Input...

  • Page 12: Pw 600 Premium Wireless Speaker

    CONTROLS & CONNECTIONS (cont’d …) PW 600 Premium Wireless Speaker 120V 2A 60Hz PW 600 Sub Out Analog In Wi-Fi Setup L S R Update AC Power 3.5 mm Wi-Fi Indicator (Mains) Analog Ethernet Input Input Input Power Volume Up 120V 2A 60Hz Volume Down...

  • Page 13: Pw Amp Premium Wireless Amplifier

    Paradigm Premium Wireless Series Owner’s Manual PW AMP Premium Wireless Amplifier Right Left 120V 2A 60Hz Analog In PF AMP Sub Out Wi-Fi Setup Update Right Speaker Left Speaker Terminals Terminals Class 2 Right Left AC Power Wiring Wi-Fi Indicator...

  • Page 14: Connecting Pw Amp To Speakers

    Bare Wire Connectors: The speakers to be connected to the Paradigm PW AMP should If you are using speaker wire without banana plugs, simply press in the be rated to handle at least 75 W for 8 Ohm speakers and at least spring loaded binding post to expose the connection hole.

  • Page 15: Adding An Optional External Subwoofer

    Using a high-quality RCA style cable, connect the “Sub Out” on connecting a subwoofer, you will need to run it again. the Paradigm Premium Wireless Series product back panel to the “LFE In/Sub In” on the subwoofer’s back panel. TIP! Reference your subwoofer’s Owner’s Manual to learn how to properly adjust the subwoofer’s level and phase controls to...

  • Page 16: Play Music & Connect Multiple Pw Series Products

    PLAY MUSIC & CONNECT MULTIPLE PW SERIES PRODUCTS Once your Paradigm product is connected to your home network, Primary/Secondary Zones: you can start playing music anytime. ® When using the DTS Play-Fi App on your device, you will notice 1. Activate the DTS Play-Fi ®...

  • Page 17: Anthem Room Correction (Arc )

    It’s a process that takes approximately 15 minutes. Anthem’s corrections each time you stream music to your Paradigm product. approach is a true audiophile solution to the problems of the room.

  • Page 18: Updates

    If the DTS Play-Fi app on your device requires an update, the app At Paradigm we constantly strive to improve the performance and will notify you that an update is available and guide you through functionality of your system, as a result from time to time your the update process.

  • Page 19: Device Usage Guide

    Paradigm Premium Wireless Series Owner’s Manual DEVICE USAGE GUIDE Device PW 800 Content Multi-Room • Up to eight • Select music services • Multiple simultaneous users Apple iOS Play-Fi • iTunes – music stored on device • Speakers can be zoned •...

  • Page 20: Basic Troubleshooting

    1. Verify that your Wi-Fi network is functioning. the Paradigm Premium 2. Your router’s Wi-Fi signal may be weak or your Paradigm product may be out of range of your Wireless Series product router’s Wi-Fi network. Move the Paradigm product closer to the router.
  • Page 21 • Restart your phone, tablet or PC (refer to the Owner’s Manual for further details). • If you still can’t find the Paradigm product on your network, and are in an office environment, verify with your network administrator that no special permissions are enabled that would prevent external wireless devices from broadcasting within the network.
  • Page 22 Finally, exit and then restart the DTS Play-Fi App. It should now find all of your Paradigm product(s). If you are still unable to find the Paradigm product(s), perform a Reset (see page 16) on the offending ® unit and re-download the DTS Play-Fi...

  • Page 23: Technical Specifications

    Paradigm Premium Wireless Series Owner’s Manual TECHNICAL SPECIFICATIONS PW 800 Premium Wireless Speaker PW 800 Design 4-driver, 2 way speaker ™ High Frequency Driver Two 1” (25 mm) S-PAL dome, ferro-fluid damped / cooled, extended pistonic range Bass/Midrange Driver Two 5” (127 mm) S-PAL ™...

  • Page 24: Pw 600 Premium Wireless Speaker

    TECHNICAL SPECIFICATIONS (cont’d …) PW 600 Premium Wireless Speaker PW 800 Design 3-driver, 2 way bookshelf High Frequency Driver Two 1” (25 mm) S-PAL ™ dome, ferro-fluid damped / cooled, extended pistonic range Bass/Midrange Driver 5” (127 mm) S-PAL ™...

  • Page 25: Pw Amp Premium Wireless Amplifier

    Paradigm Premium Wireless Series Owner’s Manual PW AMP Premium Wireless Amplifier PW 800 Design Anthem Class-D Amplifier Amplification Anthem ® Class-D Amp; 2 x 200 W Dynamic Peak; 2 x 100 W RMS 4 ohms Wireless Connectivity 2.4 GHz and 5.0 GHz; 802.11 g/n...

  • Page 26: Limited Warranty

    Visit paradigm.com for more information. • Warranty does not apply if the product is used in professional Paradigm Electronics Inc. reserves the right to improve the design or commercial applications. of any product without assuming any obligation to modify any product previously manufactured.
  • Page 27 In no event shall Paradigm Electronics Inc., their agents or representatives be responsible for any incidental or consequential damages. Some jurisdictions do not allow limitation of incidental or consequential damages, so this exclusion may not apply to you.
  • Page 28 Customer Support team at support@paradigm.com. ffmpeg: http://www.ffmpeg.org/ avahi: http://www.avahi.org/ Paradigm Electronics Inc. will distribute such source code to you on a disc for a charge covering the cost of performing such distribution, MIT/X derivate license such as the cost of media, shipping and handling. All of the above CURL: http://curl.haxx.se/...
  • Page 29 NOTES...
  • Page 30 NOTES...
  • Page 31 • High Resolution audio reproduction – up to 24bit/192kHz* • Stream from Android, iOS mobile or PC.  Paradigm’s Premium Wireless Series delivers more dynamic • Stream from digital music streaming Wi-Fi audio. It accomplishes this with advanced engineering and high-quality materials, as well as DTS library or favourite online audio Play-Fi - the most innovative streaming technology available.
  • Page 32 Dimensions (h x w x d) (17.8cm x 50.8cm x 14.0cm) 13.8lb (6.3kg) each Weight Finish Black White © 2015 Paradigm Electronics Inc. All rights reserved. Visit paradigm.com for more details. DIN 45 500. Indicates -3 dB † in a typical listening room.
  • Page 33 PARADIGM PW IF YOUR ROUTER HAS A WPS BUTTON DEVICE GUIDE 1. PRESS and HOLD the Wi-Fi button on the rear of your Paradigm Product for 4 seconds • A modem/WIRELESS router DEVICE TYPE or until your hear a tone. The wireless LED will blink twice in continuous intervals.
  • Page 34 PARADIGM PREMIUM NETWORK REQUIREMENTS WIRELESS SERIES 1. PRESS and HOLD the Wi-Fi button on the rear of your Paradigm Product for 4 seconds DEVICE GUIDE • A modem/WIRELESS router or until you hear a tone. The wireless LED will blink twice in continuous intervals.
  • Page 35 NETWORK REQUIREMENTS DEVICE GUIDE 1. PRESS and HOLD the Wi-Fi button on the rear of your Paradigm Product for 4 seconds • A modem/WIRELESS router or until your hear a tone. The wireless LED will blink twice in continuous intervals.
