SmartWitness AP1 Quick Start Installation Manual

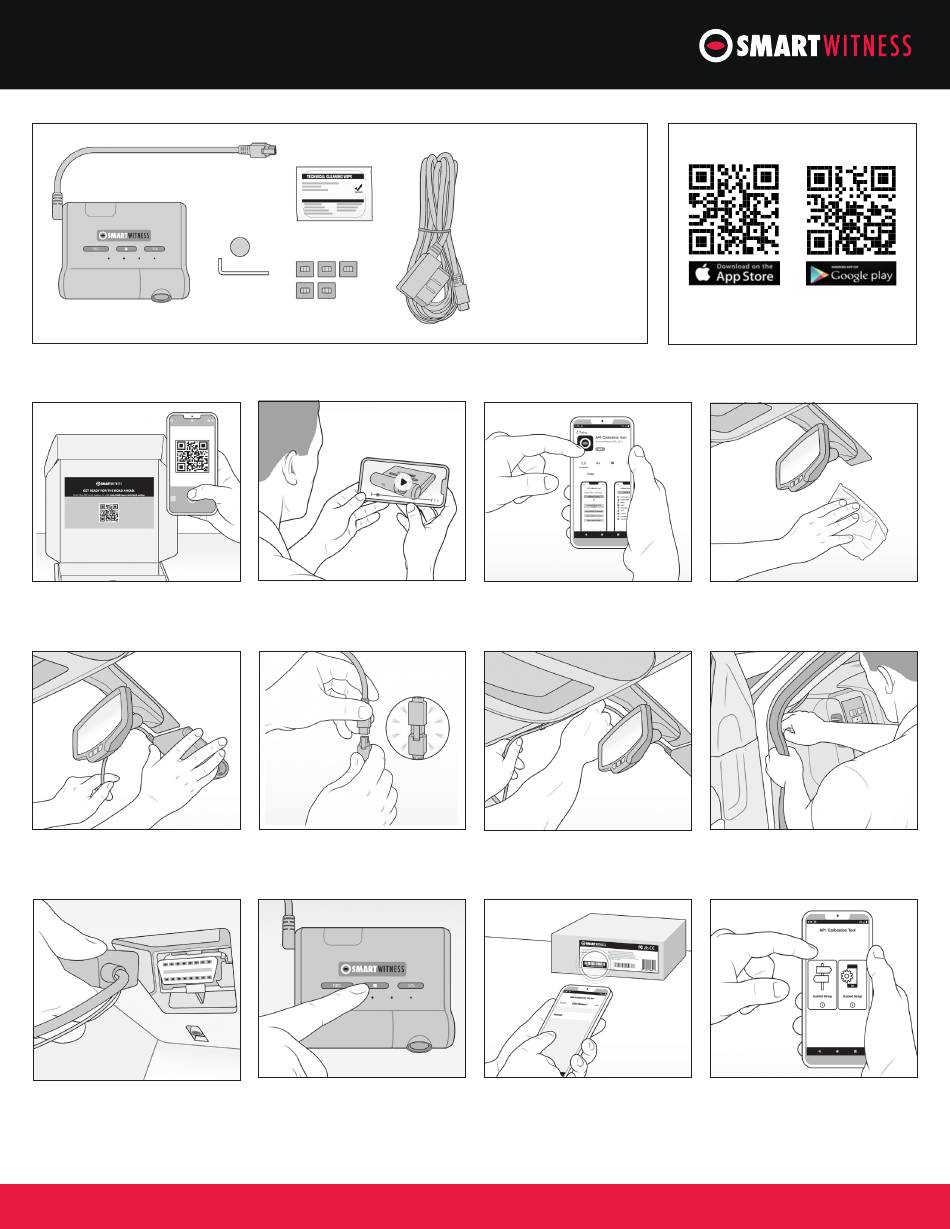

QUICK START INSTALLATION GUIDE
FOR AP1 VIDEO TELEMATICS CAMERA
A.
1. Review the package contents.
2. Scan the QR code inside the
box for a detailed installation video,
spec sheet and user guide.
6. Remove backing, then press and
hold unit to window for 30 seconds.
10. Plug main cable into your
vehicle's OBDII (or J-BUS) port.
B.
D.
C.
E. F.
3. Watch the installation video.
7. Connect AP1 unit wire to main
cable harness.
11. Hold center button on
AP1 camera unit for 5 seconds.
Release button, and wait 3 seconds
for blinking orange light.

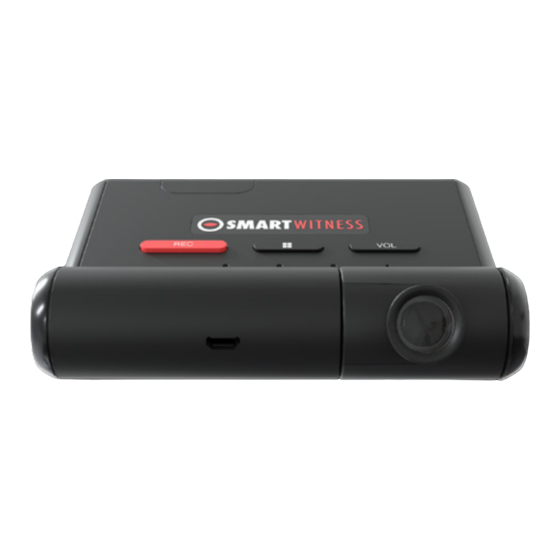

A. AP1 Camera
B. Camera Angle Cover
C. Locking Screw Tool
D. Alcohol wipe
E. Clips
F. Cable
4. Scan the QR code above to find
and download the app.
8. Remove adhesive backing on
clips, and adhere cable to windshield.
12. Select your device's Wi-Fi settings,
choose AP1, and enter the last 8 digits
of the IMEI code on the box's sticker.
Proceed to next page for
Use the appropriate QR code to
download the AP1 Calibration Tool
5. Use included wipe on windshield
surface. Allow time to dry.
9. Tuck cable behind weather stripping,
and push stripping in to secure it.
13. Open the AP1 Calibration Tool,
and choose the manual option.
software calibration
>
