  • Page 1 CP-S CP-R CP-V CP-VA CP-P CP Series Vehicle Cameras User Manual www.smartwitness.com...
  • Page 2: Safety Advice

    Index CP-S 960H Analog Vehicle Camera ..........Page 3 CP-R 960H Analog Vehicle Camera ..........Page 7 CP-V 960H Analog Vehicle Camera ..
  • Page 3: Adjusting The Camera

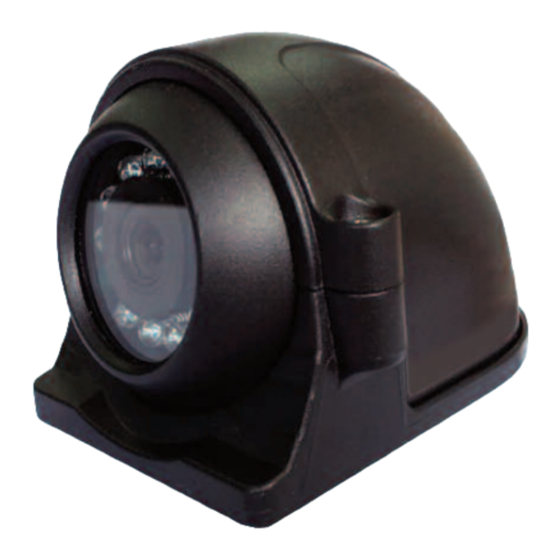

    Introduction The CP-S is a 960H Analog Camera. It features a 2.88mm lens and has a viewing angle between 110-120°. Adjusting the Camera To adjust the angle of the camera, use the screw tool provided and unscrew the screws located on the sides of the camera. There are 3 in total. To unscrew, turn anticlockwise to open the screw from the base.
  • Page 4 Adjusting the Camera Continued Then adjust the camera manually with your hand to your preferred position. After you have completed your adjustment, replace the protective bracket Then close the casing of the camera and screw back the screws.
  • Page 5: Mounting The Camera

    Mounting the camera To mount the camera, remove the screws from all sides Drill a hole in the centre of the camera and screw it into your desired location. Replace the camera and screw in the screws.
  • Page 6: Specification

    Specification CP S Video System Pick Up Element Colour Sony 1/3” CCD Image Sensor Image Signal Process Digital Signal Processing System Lens / Viewing Angle 2.8mm - 96º Number Of Pixel 960 x 576 Effective Pixels 960 (H)× 576 (V) Resolution Analog 700TVL Audio...
  • Page 7 Introduction The CP-R is a 960H Analog Rear view Mirrored camera. Adjusting the Camera To adjust the angle of the dome camera, use the screw tool provided and unscrew the screws located on the sides of the camera. To unscrew, turn anticlockwise to open the screw from the base. Then adjust the camera by moving the lower bracket.
  • Page 8 Specification CP R Video System Pick Up Element Colour Sony 1/3” CCD Image Sensor Image Signal Process Digital Signal Processing System Lens / Viewing Angle 2.8mm - 96º Number Of Pixel 960 x 576 Effective Pixels 960 (H)× 576 (V) Resolution Analog 700TVL Audio...
  • Page 9 Introduction The CP-V is a 960H Analog Dome Camera. It features a 2.88mm lens and has a viewing angle between 90-100°. Adjusting the Camera To adjust the angle of the dome camera, use the screw tool provided and unscrew the screws located on the sides of the camera. There are 3 in total. To unscrew, turn anticlockwise to open the screw from the base.
  • Page 10 Mounting the Camera Continued Get the correct drill bit for the size of the holes which you need to drill. After drilling, feed through the camera wires into the base, as shown above. Then screw back the remaining screws.
  • Page 11 Specification CP-V Video System Pick Up Element Colour Sony 1/3” CCD Image Sensor Image Signal Process Digital Signal Processing System Lens / Viewing Angle 2.8mm - 96º Number Of Pixel 960 x 576 Effective Pixels 960 (H)× 576 (V) Resolution Analog 700TVL Audio Power Supply...
  • Page 12 Introduction The CP-VA is a Internal only 960H Analog Dome Camera with built in audio It features a 2.88mm lens and has a viewing angle between 90-100°. Adjusting the Camera To adjust the angle of the dome camera, use the screw tool provided and unscrew the screws located on the sides of the camera.
  • Page 13 Mounting the Camera Continued Get the correct drill bit for the size of the holes which you need to drill. After drilling, feed through the camera wires into the base, as shown above. Then screw back the remaining screws.
  • Page 14 Specification CP VA Video System Pick Up Element Colour Sony 1/3” CCD Image Sensor Image Signal Process Digital Signal Processing System Lens / Viewing Angle 2.8mm - 96º Number Of Pixel 960 x 576 Effective Pixels 960 (H)× 576 (V) Resolution Analog 700TVL Audio...
  • Page 15 Introduction The CP-P is a 960H Analog Internal Dome Camera. It features a 2.88mm lens and has a viewing angle between 90-100°. Adjusting the Camera To adjust the angle of the dome camera, use the screw tool provided and unscrew the screws located on the sides of the camera.
  • Page 16 Adjusting the Camera Continued Then adjust the camera manually with your hand to your preferred position. After you have completed your adjustment, replace the protective bracket Then close the casing of the camera and screw back the screws.
  • Page 17 Specification CP P Video System Pick Up Element Colour Sony 1/3” CCD Image Sensor Image Signal Process Digital Signal Processing System Lens / Viewing Angle 2.8mm - 96º Number Of Pixel 960 x 576 Effective Pixels 960 (H)× 576 (V) Resolution Analog 700TVL Audio...
  • Page 18 1016 Lunt Avenue, Metrotower 2, 2600-4720 Beddington Farm Schaumburg, IL 60193, USA Kingsway Burnaby, BC V5H Road,Croydon, Surrey, 4N2, Canada CR0 4WP +1 (312) 981-8774 sales.usa@smartwiness.com +1 (778) 994-6670 +44(0) 1483 397005 sales.can@smartwiness.com sales@smartwiness.com www smartwitness com ©2018 SmartWitness EMEA Limited...

This manual is also suitable for:

Cp-sCp-rCp-vCp-vaCp-p
