hANDleBARS

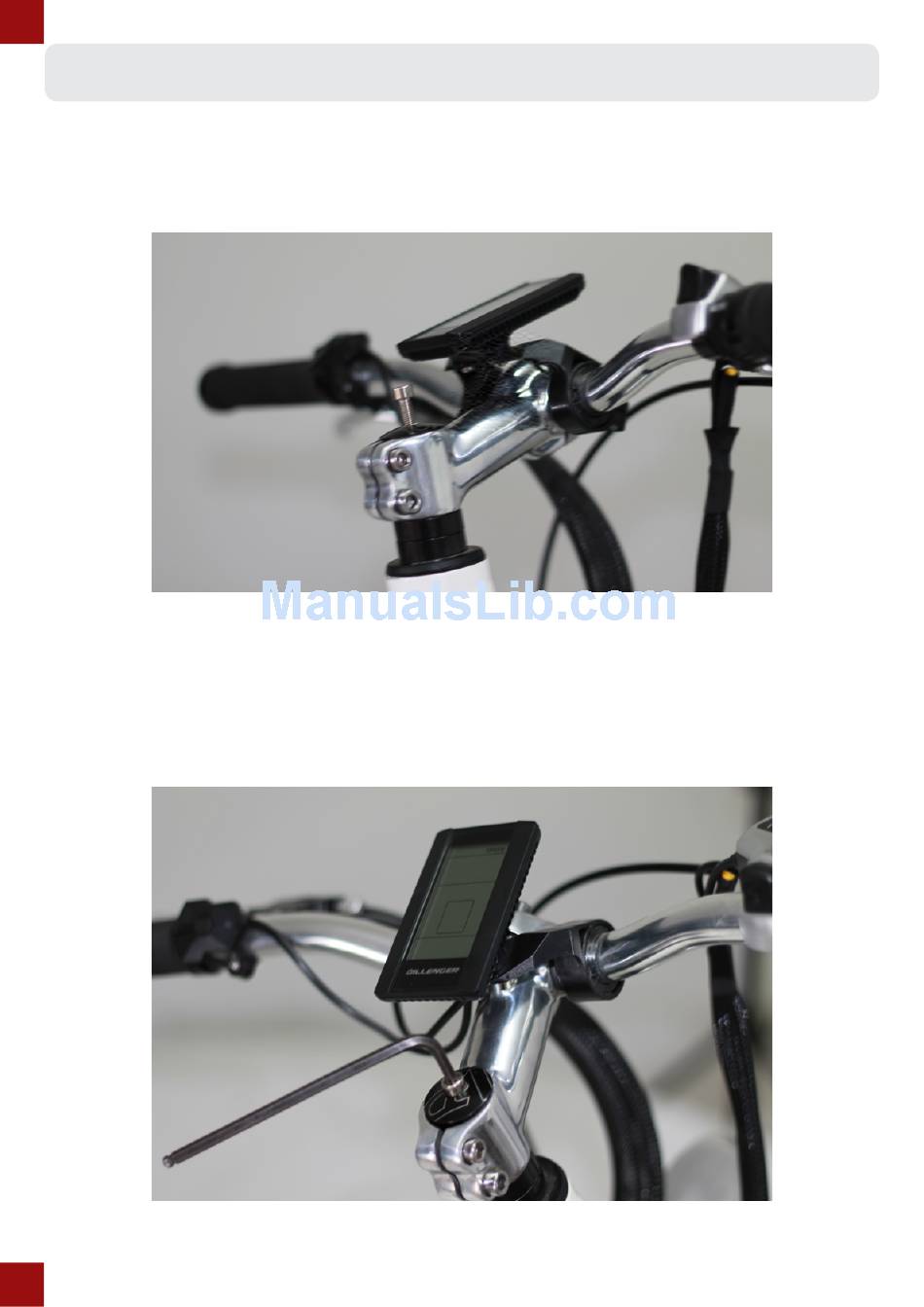

The handlebars will be connected by the cables and wires, all that's required for final
setup is to mount the handlebar stem onto the head tube as shown here:
You can remove a number of the black spacer rings on the head tube, leaving 2. These 2
can be placed in any arrangement. In these photos we have the handlebars in the highest
position, with 2 spacers under the stem. Make sure none of the cables are twisted or
too tight (you may have the handlebars twisted). Tighten as shown here, making sure
the handlebars are aligned to the front wheel. This step fastens the stem down onto the
headtube to remove any vertical play:
