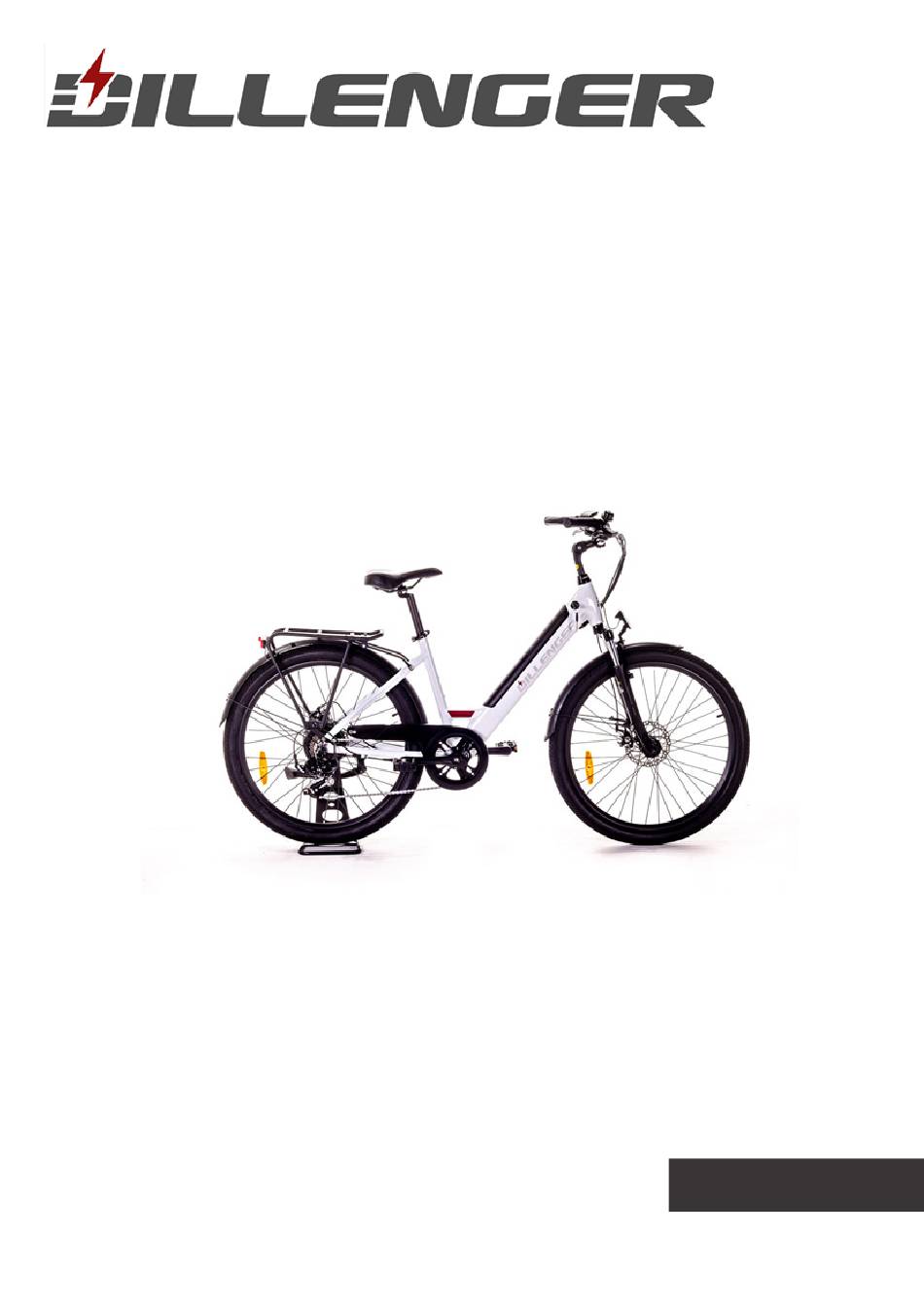

SUPER STREET 8
User Manual
This manual describes how to safely complete final
assembly and includes tips for use and maintenance
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPER STREET 8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dillenger SUPER STREET 8

  • Page 1 SUPER STREET 8 User Manual This manual describes how to safely complete final assembly and includes tips for use and maintenance English...
  • Page 2: Thank You

    THANK YOU Thank you for purchasing your new Dillenger electric bike! We know you’ll love it, and with some care it should last for a very long time. Please read through this manual carefully before beginning final assembly. SAFETY Mechanical Safety Check: Routinely check the condition of your bike.
  • Page 3: Item Check List

    ITEM CHECK LIST Each electric bike is assembled under the most strict quality control standards. Upon completion, each electric bike is test ridden by a technician inside the assembly factory to check that every function and adjustment on the bike is perfect. Item check list: •...
  • Page 4: Table Of Contents

    CONTENTS THANK YOU SAFETY ITEM CHECK LIST SUMMARY OF FINAL SETUP UNBOXING MAIN PARTS ASSEMBLY HANDLEBARS FRONT WHEEL AND MUDGUARD PEDALS SEAT BATTERY OPERATION LED DISPLAY OPERATION IMPORTANT POINTS CHARGING MAINTENANCE TROUBLESHOOTING CONTACT US...
  • Page 5: Summary Of Final Setup

    SUMMARY OF FINAL SETUP To fit into an appropriately sized shipping carton to comply with the various courier networks, some basic parts of the bike are temporarily removed. This is so that the bike can fit into the shipping carton safely, and so that we can adequately package each part of the bike so that it is delivered in perfect condition.
  • Page 6: Unboxing

    UNBOXING Unboxing your Dillenger bike will be very exciting, but it’s important to take care when unboxing the bike, as it’s possible to accidentally damage the bike or misplace crucial parts. It’s also much easier to unbox the bike with someone there to help you.
  • Page 7: Main Parts

    MAIN PARTS After you’ve taken your Dillenger bike out of its shipping carton, you should have these parts: 1. The complete bike 2. Front wheel with quick release axle...
  • Page 8 3. Handlebars (components already connected by the cabling) 4. Seat Note: This can be in the shipping carton or fastened to the bike separately. 5. Pedals Note: These can be in the same box as the charger, or fastened to the bike separately.
  • Page 9 6. Front mudguard Note: This can be in the shipping carton or fastened to the bike separately. 7. Lights (attached by the cabling) 8. Charger...
  • Page 10: Assembly

    ASSEMBLY HANDLEBARS The handlebar components are already connected by the cables and wires, all that’s required for final setup is to secure the handlebar stem onto the headtube as shown below:...
  • Page 11: Front Wheel And Mudguard

    FRONT WHEEL AND MUDGUARD Note: It may be easier to do this step with the bike flipped over, resting on its seat and handlebars. Just be careful that the display doesn’t get damaged when the bike leans on the handlebars. Firstly, secure the front mudguard by undoing the bolt that secures the light to the forks and then use that bolt to secure both the mudguard and the light to the forks.
  • Page 12 You can now put the front wheel in the forks. Make sure that you don’t damage the brake pads inside the brake caliper in the process. You can also temporarily remove the brake caliper to make this easier. Now secure the wheel into the forks with the quick release axle. Make sure this axle is tightened properly, so your front wheel doesn’t come off.
  • Page 13: Pedals

    PEDALS All bicycles (electric bikes included) have left and right side pedals. Make sure you identify each one. This image shows how to identify each pedal. You can see the ‘R’ written on this pedal, denoting this is the right side pedal, to be used on the right side of the bike (if you were sitting on the bike).
  • Page 14: Seat

    SEAT This is the easy part. Simply insert your seat to the desired height (about hip height) and close the clamp to lock the seat in position. Take note of the maximum seat height, and don’t put the seat up past that point.
  • Page 15: Battery Operation

    BATTERY OPERATION The battery for your Dillenger bike is the most expensive single component and one of the most crucial. The battery can be removed following these steps. Use the key provided to unlock the battery: The key is placed in the key hole...
  • Page 16 You can remove the battery to charge it, or you can leave it in the bike. For transport by car, we recommend taking the battery out of the bike and storing inside the car, in a safe place. When mounting the battery back into the frame, insert it in the same fashion that it was removed.
  • Page 17: Led Display Operation

    LED DISPLAY OPERATION We have an LED manual on the website, or you can follow this link: https://880b28d3d003e6b1c176-ee9159906b823979ce618332e73bec87.ssl.cf4.rackcdn. com/other/KEY-DISP%20LED%20Display.pdf IMPORTANT POINTS Please consider these important points for best use: Keys: The keys for your bike are zip tied to your handlebars. You will have 2 keys, so please keep one as a spare separately.
  • Page 18: Charging

    CHARGING 1. Plug the charger into the wall socket/ outlet, just like you would a laptop or mobile phone charger. 2. Check that the charger indicator light glows green. 3. Plug the charger (battery end) into the battery carefully, making sure it is all the way in.
  • Page 19: Maintenance

    Lastly (just to reiterate) it’s important that you charge the battery at least once every month to ensure the battery maintains a safe storage level. PLEASE NOTE Any modifications to any Dillenger product that isn’t approved by Dillenger will void your warranty.
  • Page 20: Troubleshooting

    TROUBLESHOOTING Dillenger’s troubleshooting advice will take you through a logical way to diagnose any issues that may arise during installation and use. Before commencing troubleshooting, disconnect all components. Do not short cut this process. There are countless times a loose plug has caused grief. By disconnecting all the plugs and then reconnecting just the crucial components, this will solve any loose plug issue.
  • Page 21 Please refer to display manual for error code definition and if display needed, report the error code to Dillenger in a service ticket. Check all connections to make sure all the plugs are all the way My kit looses power connected.
  • Page 22 Make sure the tyre pressures are at optimum (ideal pressures are written on the tyre side wall) • Select the right gear for assisting up hills (the steeper the rise, the lower the gear needed) If you would like to submit a Dillenger service ticket, please go to the contact page on the website.
  • Page 23: Contact Us

    CONTACT US Dillenger Head Office 3/13 Olympic Circuit Southport QLD 4215 AUSTRALIA Tel.: (+61) 1300 014 317 support@dillenger.com.au dillenger.zendesk.com www.dillengerelectricbikes.com.au © Dillenger 2019...
